Agena 1.25" Flip Mirror for Astrophotography
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- The Agena Astrophotography Flip Mirror simplifies the framing and focusing of celestial objects for astrophotography
- Insert a 1.25" eyepiece in the top of the flip mirror unit then locate and focus your object visually
- When the object is centered and focused in the eyepiece, flip the mirror lever and the image is directed to an attached astrophotography camera - remaining in focus
- No need to swap out your eyepiece and camera - everything stays in place
- Designed for use with 1/2" or smaller format astrophotography CCD or DSLR imagers
- Integrated T-thread rings for direct camera and focuser attachment
- Includes removable 1.25" holder on rear port to allow connection of cameras with 1.25" nosepieces
New, imporved version that now includes a 1.25" holder on the rear port as well. No need to buy a 1.25" camera adapter separately.

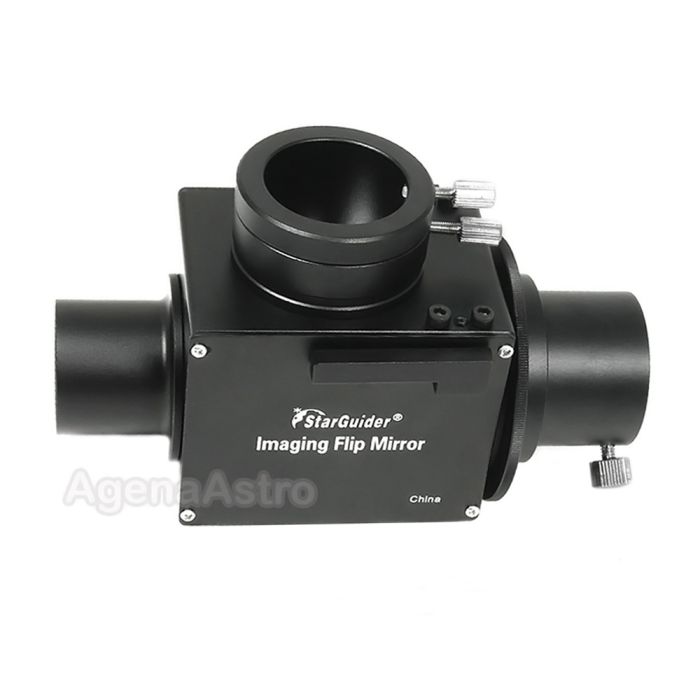

The Agena Astrophotography Flip Mirror enables you to find, center, and focus a target object visually with a 1.25" telescope eyepiece, then image the object with a CCD or DSLR camera. Since the image collected by the telescope is directed to either an eyepiece or a camera via a levered mirror, there is no need to change out your eyepiece for the camera. All accessories remain attached to the flip mirror assembly and the image is simply redirected by the mirror to the eyepiece when needed. You can switch back and forth between camera and eyepiece with ease.
The high reflectivity internal mirror directs the telescope image 90 degrees up into the eyepiece. A smooth helical focuser on the eyepiece holder allows you to bring the eyepiece parfocal with the camera. When the target object is focused in the eyepiece, flipping the lever on the side of the assembly swings the mirror up and out of the way to allow the image to enter the camera attached to the back of the assembly. This provides a focused CCD image with none of the usual swapping hassle.
The Agena Astrophotography Flip Mirror was designed for use with 1/2” or smaller format astrophotography CCD or DSLR cameras to provide full sensor exposure. A male T-thread on the assembly’s metal housing allows direct attachment of the CCD or DSLR camera body. A 1.25" eyepiece holder adapter is also provided at the rear port for attaching cameras with 1.25" nosepieces. The entire assembly is connected to the telescope's 1.25" focuser via the front nosepiece, which can be removed to expose T-threads for direct attachment to the focuser. The nosepiece is internally threaded for 1.25" filters.
Specifications:
- Accepts 1.25" telescope eyepieces (not included)
- Housing dimensions (excluding nosepiece and eyepiece adapter): 3.3"L x 2.2"W x 2.3"H
- Requires 80mm of additional backfocus. Reaching focus might not be possible on some Newtonian or short focal length refractor telescopes
- Weighs 10.7 oz.
Please note that no instruction sheet is included with this product. However, you can find this information easily on the internet for similar products.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
- The Agena Astrophotography Flip Mirror simplifies the framing and focusing of celestial objects for astrophotography
- Insert a 1.25" eyepiece in the top of the flip mirror unit then locate and focus your object visually
- When the object is centered and focused in the eyepiece, flip the mirror lever and the image is directed to an attached astrophotography camera - remaining in focus
- No need to swap out your eyepiece and camera - everything stays in place
- Designed for use with 1/2" or smaller format astrophotography CCD or DSLR imagers
- Integrated T-thread rings for direct camera and focuser attachment
- Includes removable 1.25" holder on rear port to allow connection of cameras with 1.25" nosepieces
New, imporved version that now includes a 1.25" holder on the rear port as well. No need to buy a 1.25" camera adapter separately.
The Agena Astrophotography Flip Mirror enables you to find, center, and focus a target object visually with a 1.25" telescope eyepiece, then image the object with a CCD or DSLR camera. Since the image collected by the telescope is directed to either an eyepiece or a camera via a levered mirror, there is no need to change out your eyepiece for the camera. All accessories remain attached to the flip mirror assembly and the image is simply redirected by the mirror to the eyepiece when needed. You can switch back and forth between camera and eyepiece with ease.
The high reflectivity internal mirror directs the telescope image 90 degrees up into the eyepiece. A smooth helical focuser on the eyepiece holder allows you to bring the eyepiece parfocal with the camera. When the target object is focused in the eyepiece, flipping the lever on the side of the assembly swings the mirror up and out of the way to allow the image to enter the camera attached to the back of the assembly. This provides a focused CCD image with none of the usual swapping hassle.
The Agena Astrophotography Flip Mirror was designed for use with 1/2” or smaller format astrophotography CCD or DSLR cameras to provide full sensor exposure. A male T-thread on the assembly’s metal housing allows direct attachment of the CCD or DSLR camera body. A 1.25" eyepiece holder adapter is also provided at the rear port for attaching cameras with 1.25" nosepieces. The entire assembly is connected to the telescope's 1.25" focuser via the front nosepiece, which can be removed to expose T-threads for direct attachment to the focuser. The nosepiece is internally threaded for 1.25" filters.
Specifications:
- Accepts 1.25" telescope eyepieces (not included)
- Housing dimensions (excluding nosepiece and eyepiece adapter): 3.3"L x 2.2"W x 2.3"H
- Requires 80mm of additional backfocus. Reaching focus might not be possible on some Newtonian or short focal length refractor telescopes
- Weighs 10.7 oz.
Please note that no instruction sheet is included with this product. However, you can find this information easily on the internet for similar products.
