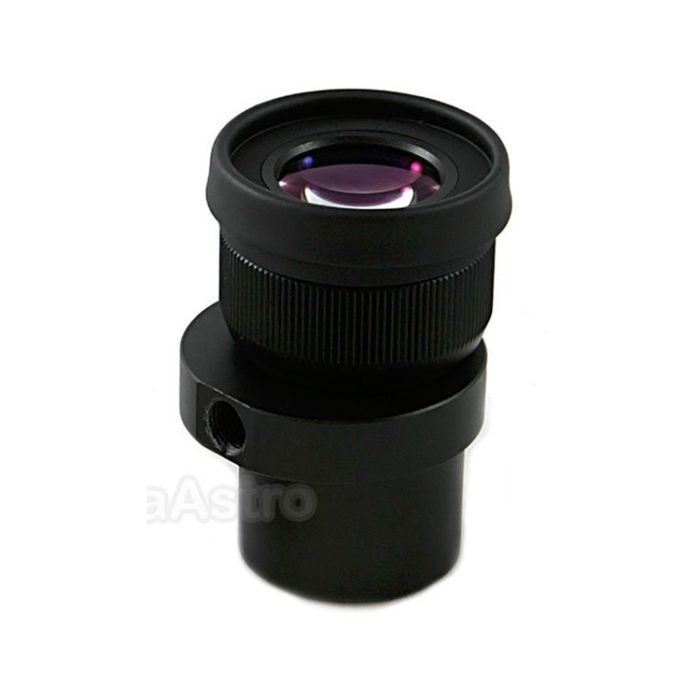

Agena 1.25" Reticle Eyepiece with Focusable Single Crosshair - 24mm
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 1.25” 24mm focal length eyepiece crosshair reticle
- Ideal for achieving accurate polar alignment and pointing accuracy
- Essential for use with off-axis guiders for centering guide stars
- Five element, fully coated optics for excellent performance with faint stars
- 50° Field of View (FOV), 20mm eye relief
- Illuminator sold separately
The Agena illuminated 1.25” 24mm reticle eyepiece is the perfect accessory for refining the alignment and pointing accuracy of your goto telescope. Reticle eyepieces are essential for long exposure astrophotography where precise polar alignment is necessary. It is also required for centering guide stars in an off-axis guider (OAG) or guide scope. The Agena illuminated 1.25” centering eyepiece is priced significantly less than competitive centering eyepieces but performs these tasks as well or better than the competition.
20mm eye relief and soft roll-down rubber eyecup make this eyepiece a pleasure to use. The 24mm focal length provides a wide 50° apparent view of the sky allowing you to find objects and alignment stars more easily than shorter focal length eyepieces. Most illuminated reticle eyepieces have a short focal length and limited eye relief, which can make for uncomfortable viewing, particularly if you wear eyeglasses. The optical features of the Agena illuminated 1.25” reticle eyepiece virtually eliminate the need to swap out a typical high-power illuminated reticle eyepiece with a lower power eyepiece to locate or center objects.
The eyepiece reticle has a single etched crosshair precisely centered in eyepiece field of view for exceptional accuracy. A ring at the top of the eyepiece rotates to focus the crosshairs. The five-element optical system is fully multi-coated on all air-to-glass surfaces with high transmission anti-reflection coatings for bright, crisp views. The edges of the lenses are blackened for high contrast. The barrel is threaded for standard 1.25” astronomy filters.
Illuminator Sold Separately:
An optional illuminator is available separately. This listing is for the eyepiece only for those customers who might want to provide their own illuminator. If you want the illuminator with the eyepiece as well, please look at our item # E-AG-24IRE-Bundle. The illuminator hold thread specification is M8x0.75 female.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Focal Length | 24mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 50° |
| Eye Relief (Designed) | 20mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Broadband Multi-Coated |
| Blackened Lens Edges | Yes |
| Barrel Type | Smooth sided |
| Protective Plastic Storage Container | No |
| Height (With Eyeguard Extended) | 69.5mm - 76.5mm |
| End Caps | 2 |
| Rubber Eye Guard | Yes |
| Weight | 3.1oz |
