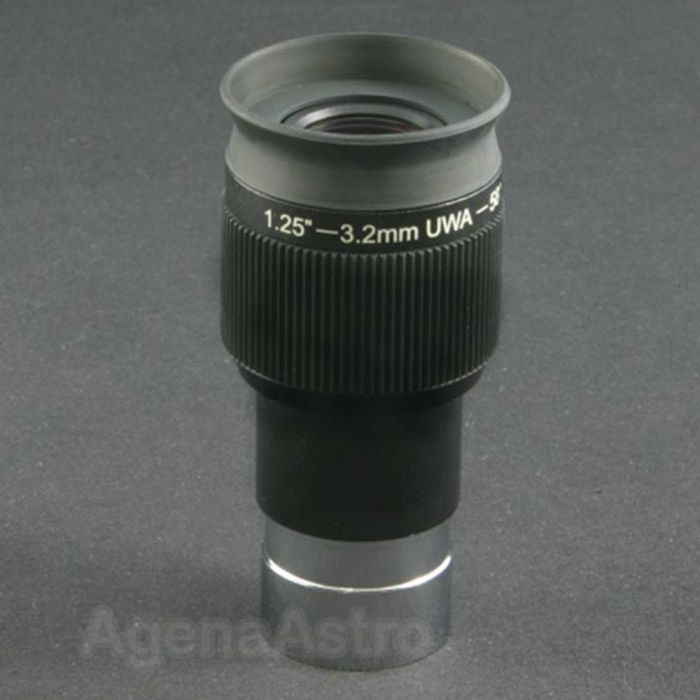

Agena 1.25" Wide Angle High Definition Eyepiece - 3.2mm
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Designed primarily for planetary observation but great for deep sky objects, too
- Wide 58 degree Field of View (FOV) in 2.5mm to 25mm focal lengths
- Up to 20mm of eye relief!
- Exceptional at nearly eliminating lateral color aberration and light scatter while retaining excellent sharpness, contrast and definition
- Modified Plossl design with five lenses in 3 groups (except for the 20mm which has four groups)
- Perform as well as other, more expensive Orthoscopic and Plossl eyepieces
- Excellent fit and finish with fully multicoated lenses and flat black anodized internal baffles and field stop
Outstanding Planetary and Lunar Eyepieces
Primarily made for planetary observation, these 1.25" fully multicoated (FMC) eyepieces give maximum detail and definition across the entire 58 degree field of view (FOV). A great value, these eyepieces are exceptional at nearly eliminating lateral color aberration and light scatter often associated with more expensive eyepieces that are better suited for deep space objects.
Each eyepiece has 5 lens elements in 3 groups - with the exception of the 20mm eyepiece which has 4 groups.
Agena WA HD Planetary Eyepieces vs. More Expensive UWA Eyepieces:
Premium (and costly!) eyepieces that have similar wide fields of view need many exotic glass elements to achieve that wide field of view - as many as 9 lenses or more. More lenses mean more cost and more glass, which attenuates the amount of light you see. That also means there are more air-to-glass surfaces that can scatter light - reducing contrast and sometimes causing multiple reflections (ghosting) when viewing very bright objects such as the Moon and planets. Extra lenses can also mean compromises in the overall design that can often lead to other issues.
One such issue of all that glass is lateral color aberration that appears as a cloud of false color around bright objects. Another issue is light scatter seen as a distracting halo or glow around bright objects. This can also reduce contrast. Our 58 degree eyepieces provide high contrast, no scattered light, and the highest possible definition.
Long Eye Relief - Up To 20mm!
Our eyepiece eye relief averages around 15mm and is as much as 20mm in the 25mm focal length model. Even the 2.5mm eyepiece has almost 17mm of eye relief! Experienced observers will truly appreciate such generous eye relief at significant magnifications.
Excellent Fit and Finish:
These eyepieces are fully internally baffled and all internal spacers have antireflection microbaffles on their edges with flat black anodizing to reduce reflections. Every air to glass surface is broadband multicoated for peak light transmission and outstanding contrast on subtle lunar and planetary detail. The lens edges are blackened to eliminate internal reflections.
Each eyepiece has a flexible rubber fold-down eyeguard. Dust covers are provided for both ends of each eyepiece. A groove is machined into the nose piece barrel to ensure the eyepiece is less likely to fall out of the diagonal or focuser.
Real World Results:
In an independent test the 4mm Agena WA HD planetary eyepiece, for example, performed visibly better than a 2x Barlowed 8mm top-tier Plossl costing about $100 - with an additional 6 degrees FOV. Another field test showed that our planetary eyepieces kept a better, more natural coloring of Jupiter across the entire field of view than a much more expensive brand at the same focal length. And the longer focal length eyepieces still provided excellent edge performance and true flat field even when used in a fast (f/5) scope. Such results are truly amazing, considering the low price of the Agena WA HD Planetary eyepieces.
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | Wide Angle High Definition |
| Focal Length | 3.2mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 58° |
| Eye Relief (Designed) | 15.8mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Multi-Coated |
| Lens Elements | 5 |
| Lens Groups | 3 |
| Blackened Lens Edges | Yes |
| Barrel Type | With safety undercut |
| Protective Plastic Storage Container | Discontinued Item |
| Protective Plastic Storage Container Size | Agena 52x80mm |
| End Caps | 2 |
| Rubber Eye Guard | Yes |
| Weight | 6.2 oz / 176 g |
| Country of Manufacture | China |
| Hide Found a better Shipped Price on Frontend? | No |
