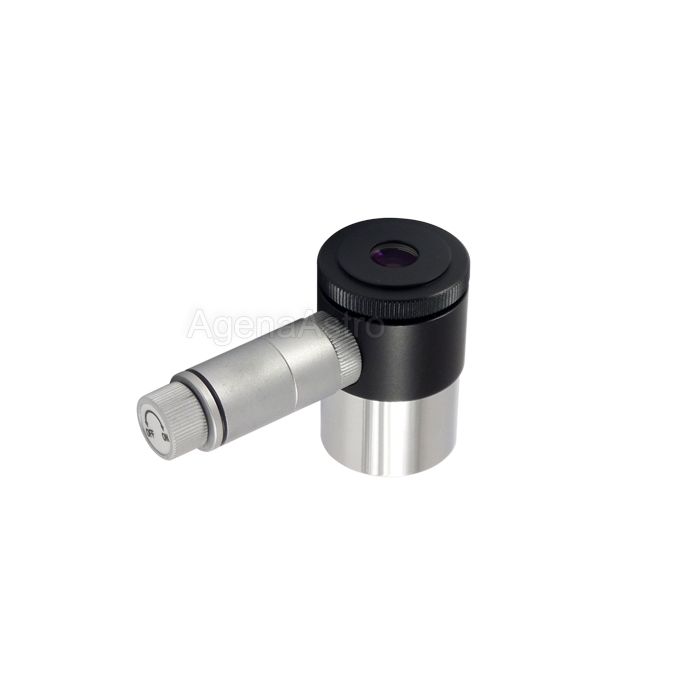

Agena 1.25" Wireless Illuminated Reticle Eyepiece with Focusable Crosshair - 12.5mm
Availability: Please contact us for an update
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- High quality 12.5mm focal length Plossl eyepiece with red LED-illuminated double-line crosshair reticle
- Excellent for accurate polar and go-to alignment, and for centering guide stars for astrophotography
- Adjustable image and reticle focus and adjustable reticle brightness
- Bright high-contrast views with a 40° apparent field of view and 5 mm eye relief
- Illuminator requires three SR-44 / LR-44 batteries (included)
There are a number of advantages to owning Agena's Starguider 1.25" 12.5mm focal length illuminated reticle plossl eyepiece. The laser-etched reticle pattern is a dual cross-hair. Unlike eyepieces with single line crosshairs, the edge-to-edge double line reticle in this eyepiece doesn’t obscure small targets when centered – they remain visible in the tiny box created by the intersection of the two pairs of double lines. The cross-hair focusing mechanism makes this eyepiece ideal if you wear eyeglasses but want to use this eyepiece with or without them. The crosshairs can be focused simply by turning the uppermost knurled ring on the eyepiece in either direction.
With a 40 degree field of view and mid-power magnification, this eyepiece provides a wide area with which to drift align your mount, calibrate finder scopes, manually guide, or center objects prior to attaching a camera to your scope for astrophotography. The 12.5mm focal length of this cordless eyepiece provides a 40° apparent view of the sky allowing you to find objects and alignment stars more easily than shorter focal length eyepieces. Eye relief is 5mm and all 4 lens elements are multicoated.
With an adjustable illuminator, observers are able to illuminate the reticle just enough to see it clearly while not degrading night vision. This adjustable illuminated reticle eyepiece is a must-have for visual observers and astrophotographers alike. Illuminator requires 3 LR44 batteries (included).
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Focal Length | 12.5mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 40-deg |
| Eye Relief (Designed) | 5mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Multi-coated |
| Lens Elements | 4 |
| Lens Groups | 2 |
| Blackened Lens Edges | Yes |
| Barrel Type | Smooth sided |
| Protective Plastic Storage Container | No |
| Optical Design | Plossl |
| End Caps | 2 |
| Rubber Eye Guard | Yes |
| Country of Manufacture | China |
| Hide Found a better Shipped Price on Frontend? | No |
