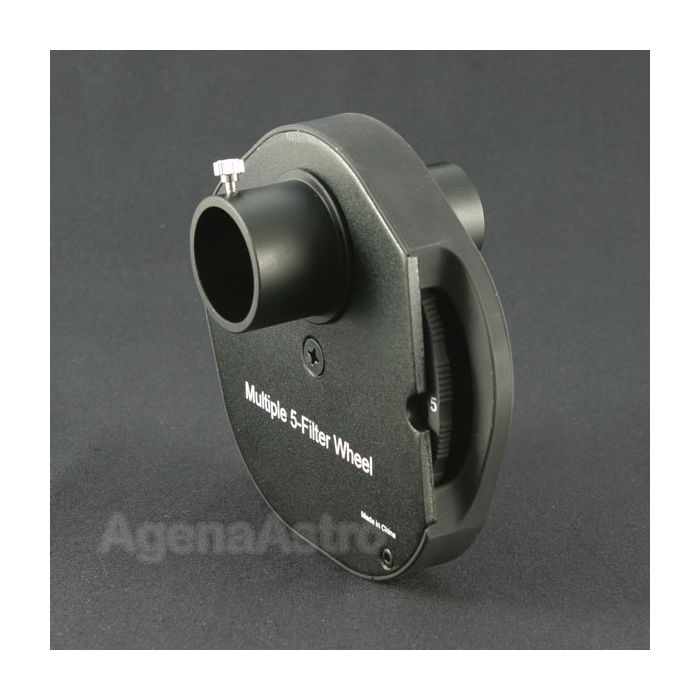

Agena 1.25" 5-Position Manual Filter Wheel with 5 Filters
Availability: No ETA available from the manufacturer at this time
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Five position manual operation
- Threaded for standard 1.25" astronomy filters
- Smooth rotational pressure minimizes "scope shake" and image shift
- Positive click stops for each position ensure precise alignment of the filter
- Thumbscrews provide easy, tool-free access to the wheel for installation and removal of filters
- Multiple adapters provided for flexibility
- A knurled locking ring allows the imaging device to be rotated so it can be oriented to the optimum position
- Rugged anodized aluminum and composite rubber housing protects installed filters from dirt, moisture, and impact
- Light weight (10 oz.) to provide flexure-free imaging with most focusers
- Requires an additional 25mm or 53mm of back focus depending on use
Astrophotographers and visual observers alike will benefit from the addition of an affordable, high quality filter wheel to their telescope setup.
The Agena 5-Piece Filter Wheel INCLUDES five 1.25″ imaging filters – red (25), green (56), yellow (12), blue (80A), and a ND96 0.3 (50% transmission neutral density), or you can leave one position empty for unfiltered viewing.
The filter wheel is attached directly to your telescope's focuser - via the removable 1.25" nose piece – making filter changes fast and easy. Thumbscrews are provided for fast, tool-free removal and installation of filters. Positive click stops for each position ensure the filter is placed precisely in the telescope's light path.
Visual observers can attach the included 1.25" eyepiece adapter to the filter wheel and install their star diagonal to hold an eyepiece as usual. No more removing the eyepiece, unscrewing the filter, screwing on a different filter, and placing the eyepiece back into the star diagonal. A simple turn of the wheel to the desired filter is all it takes. Up to five filters can be installed.
Astrophotographers can remove the included filters and install their 1.25" LRGB filter set, and then attach the imaging device to the provided T-thread camera adapter. You’re then able to quickly move the wheel to each filter in succession for the required exposures - with minimal interruption. There is no need to remove the imaging device from the focuser, virtually eliminating image shift. A knurled locking ring ensures the imaging device is securely attached to the T adapter in any orientation desired. The nominal 20mm back focus requirement is within the capability of most modern focusers The filter wheel's versatility allows you to easily and quickly configure the filter positions to best suit your needs.
The lightweight aluminum housing protects installed filters from dirt, moisture, and impact better than other designs on the market. When removed from the telescope, two provided plastic dust caps continue to keep your filters free of dust and smudges while in storage.
Included in the box:
- 5-position 1.25" filter wheel
- Five 1.25” filters - red (25), green (56), yellow (12), blue (80A), and ND96 0.3 (50% transmission)
- Removable male 42mm T-thread camera adapter
- Removable 1.25" eyepiece holder
- Removable 1.25" nosepiece
- Locking ring for the T-thread camera/imaging device adapter
Additional Specifications:
- Filter Capacity: Five standard 1.25" astronomical filters
- Operation: Manual with positive clickstops
- Nose Piece: 1.25" (31.7mm)
- Camera Adapter: Standard male T-thread
- Eyepiece Adapter: 1.25" (31.7mm)
- Filter Threads: Standard 1.25" female filter thread (M28.5 x 0.6)
- Backfocus Requirement: 25mm in photo mode; 53mm in visual mode using included 1.25" eyepiece holder
- Included Filters: Yes - red (25), green (56), yellow (12), blue (80A), and ND96 0.3 (50% transmission)
- Dust Caps: 2
- Weight: 10 oz (0.28 kg) without filters
