Agena 2-Ring 50mm Finder Bracket with Vixen/Synta Style Dovetail Base
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

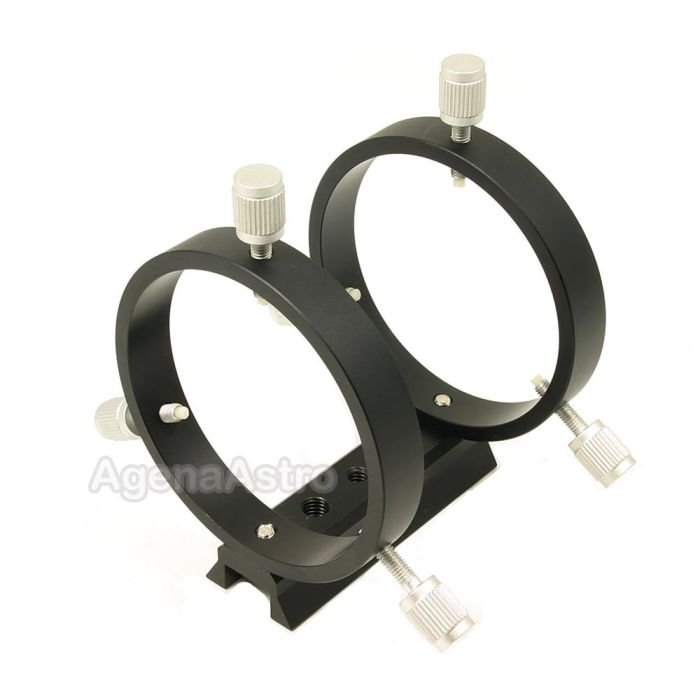

This is a new Agena quick-release dual-ring, six-point finder bracket for 50mm finders or guiders. This is the same bracket that is included with the Agena 50mm Deluxe Straight-Through Finder / Guide Scope, but we are now offering this separately due to popular demand.
Each ring includes three-point nylon-tipped screw adjustment for precisely aligning your finderscope or guidescope. All-metal construction with an anodized black matte finish.
The rings are attached to a 1.23" (31mm) wide by 3.5" (89mm) long dovetail mounting bar which fits into Vixen/Synta-style dovetail finder bases (not included) found on many telescopes. The dovetail bar also includes three threaded through-sockets for other attachment options (one 1/4"-20 threaded hole in the middle and two M8 threaded holes, one on either side). For example, it can be mounted on one of the pre-drilled holes on the tube rings of many refractor and Newtonian reflector optical tubes, or on the rear of most Schmidt-Cassegrain telescopes using a suitable optional dovetail base.
Note that this is a "low-profile" bracket since the rings are attached directly to the dovetail rail without the use of an intermediate stalk. This minimizes flexure in guiding applications but may not be as comfortable to use as an optical finder bracket due to its low height.
Specifications:
- Inside diameter of rings: 69mm / 2.72"
- Suitable for finder tubes between: 39mm / 1.54" to 61mm / 2.40" in diameter
- Width of each ring: 14mm / 0.55"
- Inside distance between rings: 59mm / 2.32"
- Outside distance between rings: 88mm / 3.46"
- Total height (excluding screws): 92mm / 3.62"
- Weight: 5.4oz / 153g
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
This is a new Agena quick-release dual-ring, six-point finder bracket for 50mm finders or guiders. This is the same bracket that is included with the Agena 50mm Deluxe Straight-Through Finder / Guide Scope, but we are now offering this separately due to popular demand.
Each ring includes three-point nylon-tipped screw adjustment for precisely aligning your finderscope or guidescope. All-metal construction with an anodized black matte finish.
The rings are attached to a 1.23" (31mm) wide by 3.5" (89mm) long dovetail mounting bar which fits into Vixen/Synta-style dovetail finder bases (not included) found on many telescopes. The dovetail bar also includes three threaded through-sockets for other attachment options (one 1/4"-20 threaded hole in the middle and two M8 threaded holes, one on either side). For example, it can be mounted on one of the pre-drilled holes on the tube rings of many refractor and Newtonian reflector optical tubes, or on the rear of most Schmidt-Cassegrain telescopes using a suitable optional dovetail base.
Note that this is a "low-profile" bracket since the rings are attached directly to the dovetail rail without the use of an intermediate stalk. This minimizes flexure in guiding applications but may not be as comfortable to use as an optical finder bracket due to its low height.
Specifications:
- Inside diameter of rings: 69mm / 2.72"
- Suitable for finder tubes between: 39mm / 1.54" to 61mm / 2.40" in diameter
- Width of each ring: 14mm / 0.55"
- Inside distance between rings: 59mm / 2.32"
- Outside distance between rings: 88mm / 3.46"
- Total height (excluding screws): 92mm / 3.62"
- Weight: 5.4oz / 153g
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
Agena 2-Ring 50mm Finder Bracket with Vixen/Synta Style Dovetail Base # DFB50
