Agena AstroCell Rechargeable 12V / 9V / 5V DC 11Ah Lithium Ion Battery Power Pack
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Agena has teamed up with Talentcell, a leading Chinese manufacturer of Lithium Ion batteries, to offer a variety of rechargeable battery power packs for amateur astronomers looking to power their cameras, dew heaters, telescopes and other accessories in the field. These battery packs are especially popular with users of Celestron NexStar telescopes and for powering dew heaters (see additional details below).
In fact, the use of our AstroCell battery packs is not limited to astronomy - you can use it in just about any application that requires a 12V DC power source (security or camera equipment, light strips, electronic devices, etc.).
The Agena AstroCell AC-B03 is a small, portable, versatile battery pack with several outputs:
- One 12V unregulated DC output with a max. capacity of 11000mAh (11Ah)
- One 9V unregulated DC output with a max. capacity of 14500mAh (14.5Ah)
- One 5V DC USB output with a max. capacity of 26400mAh (26.4Ah)
While the 9V output may not be useful for astronomy applications, the USB port is convenient to have as it allows you to charge your phone, tablet, or any other USB-powered device simultaneously.
To calculate how many hours this battery will last for your application, divide its capacity (in Ah) by the current draw (in Amps) depending on the output port you use.
An AC wall charger is included. High efficiency batteries designed for a slow charge process enhance battery life. To improve battery performance and life, internal circuitry provides short-circuit, over-current and over-charging/discharging protection. Four green LEDs provide an indication of the battery's remaining charge at all times.
Connectors and Connection Cables
Included Connection Options
- The output connector on the battery pack is a 5.5mm ID x 2.1mm center pin female socket.
- A short splitter cable (10" in length) with a female 5.5x2.1mm female socket on one side and two 5.5x2.1mm male connectors on the other side is also included. This allows you to convert the female output socket on the battery pack into a male pin, and it also allows you to charge the battery with the included AC adapter while it is in use. Note that you cannot charge and use the battery at the same time if you are using the female socket on the battery pack.
- Also included is a short power cable with a male 5.5x2.1mm connector on one side and a male 5.5x2.5mm connector on the other side to power devices that use a 2.5mm socket.
Applications and Connection Options
- Users of Celestron telescopes and accessories can use this battery pack directly since Celestron also uses 5.5x2.1mm connectors. You may, however, wish to purchase the optional 2.1mm male to 2.1mm male extension power cable (part # AC-C01) for more placement flexibility.
- Users of Meade telescopes and accessories can also use this battery pack directly with the included 2.1mm male to 2.5mm male conversion cable. You need not purchase the optional AC-C02 cable for this application unless you need a longer cable. The included conversion cable is approx. 17" in length whereas the optional AC-C02 cable is over 6 feet long.
- To power dew heater strips sold by Dew-Not, Dew Ninja, Kendrick, Thousand Oaks and others that feature a male RCA pin, you will need the optional 2.1mm male to RCA female cable sold separately (part # AC-C05). This cable will let you power one heater strip. You can add the optional Dew-Not Y splitter RCA cable (part # PADP-DN-DNS) to this cable to power two heater strips simultaneously. With these, the Agena AstroCell battery pack is a great device to provide portable power to telescope and camera dew heaters in the field. It is also a far more economical alternative to more expensive dew heater controllers that you might otherwise not need.
- ZWO's cooled/Pro cameras work with either 2.1mm or 2.5mm DC connectors, so this battery pack is a great alternative to their 12V AC power brick as well.
Battery Specifications
- Model: AC-B03 (aka YB12011000-USB)
- Dimensions: 39 x 80 x 138mm (1.5 x 3.1 x 5.4")
- Weight: 505g (17.8oz)
- Capacity:
- 12V: 11000mAh
- 9V: 14500mAh
- 5V: 26400mAh
- Input: 12.6V, 5.5mm x 2.1mm DC connector
- Outputs:
- 12V output: Yes, 5.5mm x 2.1mm DC connector
- 9V output: Yes, 5.5mm x 2.1mm DC connector
- 5V USB output: Yes
- Max charge/discharge current:
- 12V: 6A
- 9V: 1A
- 5V: 2A
- Charge time: Approx. 7 hours
- Operating temperature: -20~60°C (-4~140°F)
- Polarity: Center pin positive
- Enclosure: Black plastic
- Warranty: 1 year

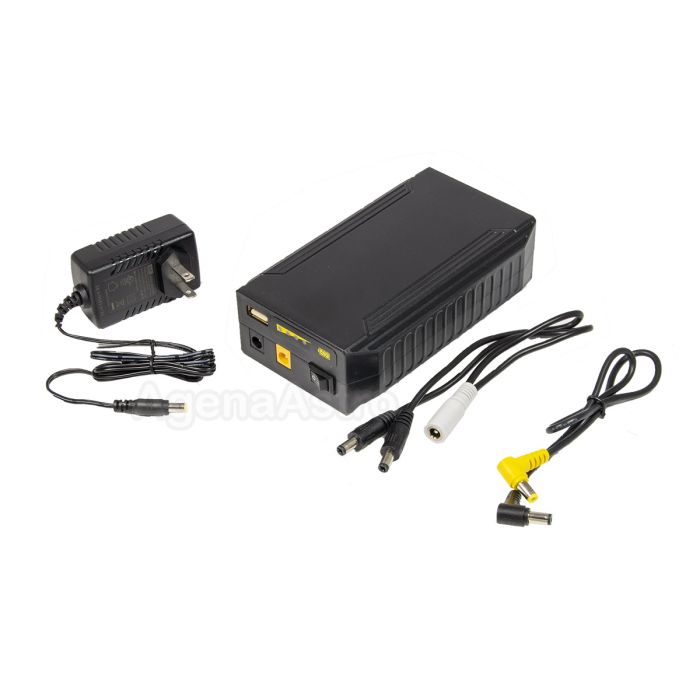

What's Included
- Agena AstroCell AC-B03 battery pack
- AC wall charger (100-240V AC input, 12.6V DC/0.5A output, US plug)
- DC 1x female to 2x male power splitter cable (5.5x2.1mm)
- 1x DC5521 male to DC5525 male power cable with right angle connectors
