Agena AstroCell Rechargeable 12V / 9V / 5V DC 6.5Ah LiFePO4 Battery Power Pack
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Agena has teamed up with Talentcell, a leading Chinese manufacturer of Lithium Ion batteries, to offer a variety of rechargeable battery power packs for amateur astronomers looking to power their cameras, dew heaters, telescopes and other accessories in the field. These battery packs are especially popular with users of Celestron NexStar telescopes and for powering dew heaters (see additional details below).
In fact, the use of our AstroCell battery packs is not limited to astronomy - you can use it in just about any application that requires a 12V DC power source (security or camera equipment, light strips, electronic devices, etc.).
The Agena AstroCell AC-B05 is a small, portable, versatile battery pack with several outputs:
- One 12V unregulated DC output with a max. capacity of 5A at 6500mAh
- One 9V unregulated DC output with a max. capacity of 2A at 9244mAh
- One 5V DC USB output with a max. capacity of 2A at 1664mAh
While the 9V output may not be useful for astronomy applications, the USB port is convenient to have as it allows you to charge your phone, tablet, or any other USB-powered device simultaneously.
To calculate how many hours this battery will last for your application, divide its capacity (in Ah) by the current draw (in Amps) depending on the output port you use.
An AC wall charger is included. High efficiency batteries designed for a slow charge process enhance battery life. To improve battery performance and life, internal circuitry provides short-circuit, over-current and over-charging/discharging protection. Four green LEDs provide an indication of the battery's remaining charge at all times.
Connectors and Connection Cables
Included Connection Options
- The output connector on the battery pack is a 5.5mm ID x 2.1mm center pin female socket.
- The output connector for the 9V power supply is 4.0mm ID x 1.7mm center pin female socket.
Applications and Connection Options
- Users of Celestron telescopes and accessories can use this battery pack directly since Celestron also uses 5.5x2.1mm connectors. You may, however, wish to purchase the optional 2.1mm male to 2.1mm male extension power cable (part # AC-C01) for more placement flexibility.
- Users of Meade telescopes and accessories can also use this battery pack directly by purchasing the optional AC-C02 cable for this application. The optional AC-C02 cable is over 6 feet long.
- To power dew heater strips sold by Dew-Not, Dew Ninja, Kendrick, Thousand Oaks and others that feature a male RCA pin, you will need the optional 2.1mm male to RCA female cable sold separately (part # AC-C05). This cable will let you power one heater strip. You can add the optional Dew-Not Y splitter RCA cable (part # PADP-DN-DNS) to this cable to power two heater strips simultaneously. With these, the Agena AstroCell battery pack is a great device to provide portable power to telescope and camera dew heaters in the field. It is also a far more economical alternative to more expensive dew heater controllers that you might otherwise not need.
- ZWO's cooled/Pro cameras work with either 2.1mm or 2.5mm DC connectors, so this battery pack is a great alternative to their 12V AC power brick as well.
Battery Specifications
- Model: AC-B05 (aka LF4100)
- Dimensions: 43 x 89.2 x 168mm (1.7 x 3.5 x 6.6")
- Weight: 760g (26.8oz)
- Capacity:
- 12V: 6500mAh
- 9V: 9244mAh
- 5V: 1664mAh
- Input: 14.6V, 5.5mm x 2.1mm DC connector
- Outputs:
- 12V output: Yes, 5.5mm x 2.1mm DC connector
- 9V output: Yes, 4.0mm x 1.7mm DC connector
- 5V USB output: Yes
- Max charge/discharge current:
- 12V: 5A
- 9V: 2A
- 5V: 2A
- Operating temperature: 0-60°C (32-140°F)
- Polarity: Center pin positive
- Enclosure: Black plastic
- Warranty: 1 year

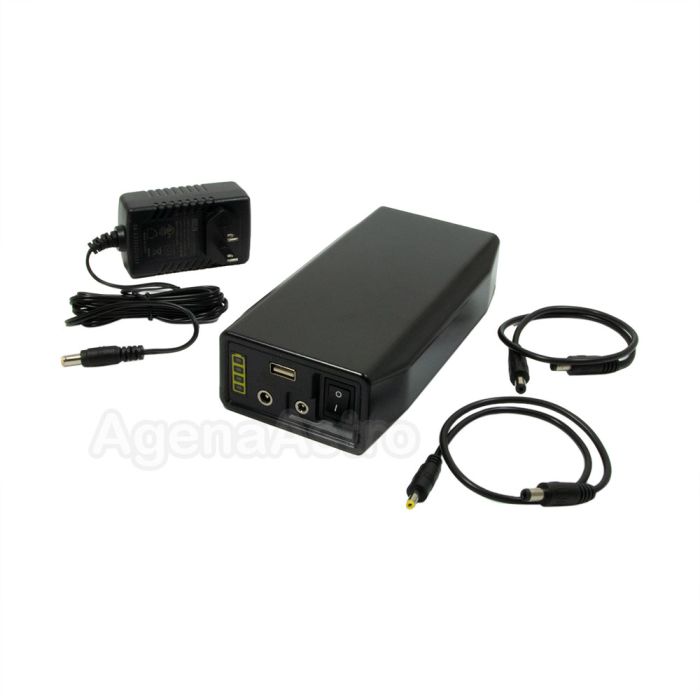

What's Included
- Agena AstroCell AC-B05 battery pack
- AC wall charger (100-240V AC input, 14.6V DC/1.5A output, US plug)
- 1x DC5521 male to DC5521 male power cable
- 1x DC4017 male to DC5521 male power cable
