Agena Synta / Vixen Style Dovetail Mounting Base / Shoe for Finders – With 4 M5 Screw Holes
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

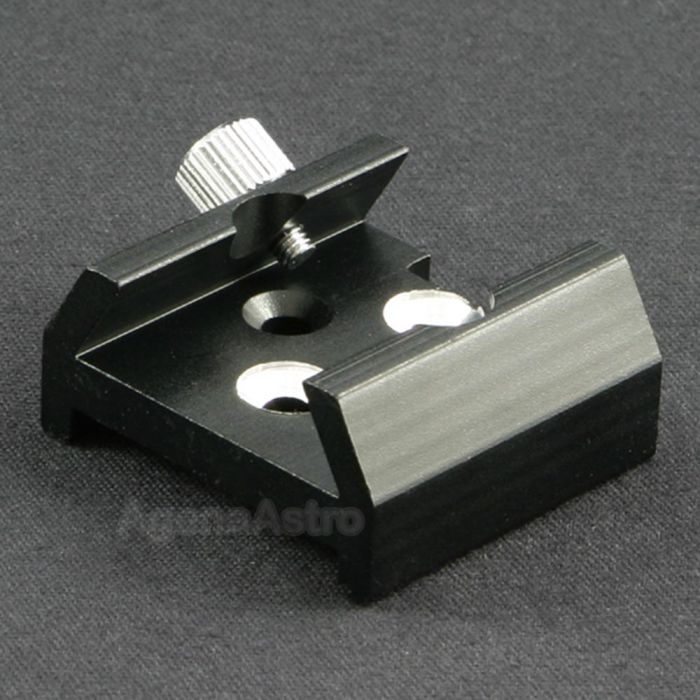

Standard Synta-style dovetail base for finder brackets. Features four holes - two perpendicular to the optical axis and two along the optical axis. Drilled to accept M5 machine screws (and can accept M4 screws as well).
The base is made of die-cast metal and features a large thumbscrew lock. Center-to-center screw hole spacing to use the holes on your telescope must be 18.6mm (0.76") in order for this dovetail base to be compatible (perpendicular to the optical axis). Fits tubes 3.25" and larger in tube diameter (not telescope aperture), as well as flat surfaces.
Please see the photos above for detailed dimensions and to determine compatibility with your telescope or finder/finder bracket - we are unable to make specific recommendations about compatibility. Please also note that the hole spacing for the two additional screws along the optical axis (one of which is used for attaching this base to a focuser) is not fixed. Since only one screw hole is to be used at a time, this is not an issue.
Finish may be smooth black or hammertone gray, depending on available stock. Style of large silver locking thumbscrew may vary.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
Standard Synta-style dovetail base for finder brackets. Features four holes - two perpendicular to the optical axis and two along the optical axis. Drilled to accept M5 machine screws (and can accept M4 screws as well).
The base is made of die-cast metal and features a large thumbscrew lock. Center-to-center screw hole spacing to use the holes on your telescope must be 18.6mm (0.76") in order for this dovetail base to be compatible (perpendicular to the optical axis). Fits tubes 3.25" and larger in tube diameter (not telescope aperture), as well as flat surfaces.
Please see the photos above for detailed dimensions and to determine compatibility with your telescope or finder/finder bracket - we are unable to make specific recommendations about compatibility. Please also note that the hole spacing for the two additional screws along the optical axis (one of which is used for attaching this base to a focuser) is not fixed. Since only one screw hole is to be used at a time, this is not an issue.
Finish may be smooth black or hammertone gray, depending on available stock. Style of large silver locking thumbscrew may vary.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
Agena Synta / Vixen Style Dovetail Mounting Base / Shoe for Finders – With 4 M5 Screw Holes # MFURB
