Agena Synta/Vixen Style Dovetail Mounting Base/Shoe for Finders - Flat Base for Takahashi Sc...
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

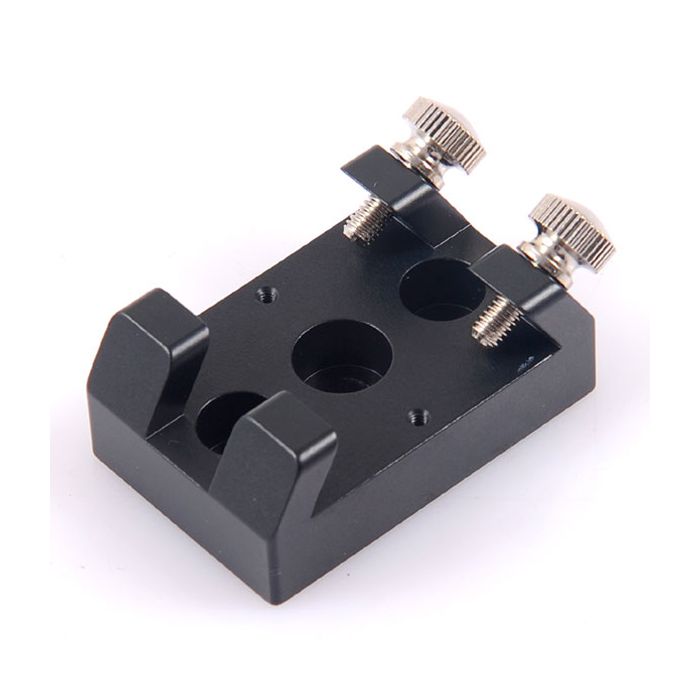

Black Synta/Vixen-style dovetail base for finders and finder brackets with flat base for Takahashi telescopes # TFURB-B.
This base is 45mm wide (perpendicular to the optical axis) and 30mm long (along the optical axis. It has 3 mounting holes, all of which are unthreaded:
- The center hole has an inside diameter of 6.3mm so it will accept 6mm or 1/4" screws. Your bolt/screw head diameter should not exceed 10.3mm.
- There are two more holes on either side of the center one. The inside diameter is 5mm and your bolt/screw head diameter should not exceed 8.9mm. The center-to-center spacing between these two holes is 28mm (1.1").
This finder base will work with most compatible bracket designs from Celestron, Orion, Synta, Vixen, etc. that are no wider than 34mm at the bottom. Please see the photos for detailed dimensions and to determine compatibility with your telescope or finder/finder bracket - we are unable to make specific recommendations about compatibility.
The base is made of die-cast aluminum and features two locking thumbscrews. Style of locking thumbscrews may vary from what is shown in the photos above. No mounting screws are included.
This base has a smooth black finish. A different version with a silver finish is available separately (see item # TFURB-S). The base wighs 1.5oz.
