Agena Synta / Vixen Style Dovetail Mounting Base / Shoe for Finders - M4 Screw for GSO Crayf...
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
In many telescope rack-and-pinion (R&P) focusers, the base for your finder bracket is molded onto the focuser body. When you replace your existing focuser with a Crayford focuser, you will lose this base to mount your finder. We sell an optional Synta/GSO-compatible dovetail base modified to fit GSO focusers so that you can attach your Synta/GSO-compatible finder brackets again. Thus, you will be able to mount your red dot, multi-reticle, or larger conventional finder on your telescope. Will work with most compatible bracket designs from Celestron, Orion, Synta, Vixen, etc.
This will work on most single or dual speed GSO refractor focusers. Installation on GSO Crayford focusers is very easy and one M4 screw is included to mount the base on the focuser. However, it will not work with William Optics focusers which use a larger M5 screw, or the GSO 112mm linear bearing focuser which does not have the 4mm set screw on the body. Also not meant for SCT telescopes which need a wider screw hole spacing.
Can also be used with many other telescope tubes. Drilled (but not threaded) to accommodate screws up to 4mm in diameter. Center-to-center screw hole spacing on your telescope must be 18.6mm (0.76") in order for this dovetail base to be compatible. Fits tubes 3.25" and larger in tube diameter (not telescope aperture), as well as flat surfaces.
Please see the photos above for detailed dimensions and to determine compatibility with your telescope or finder/finder bracket - we are unable to make specific recommendations about compatibility. Please also note that the hole spacing for the two additional screws along the optical axis (one of which is used for attaching this base to a focuser) is not fixed. Since only one screw hole is to be used at a time, this is not an issue.

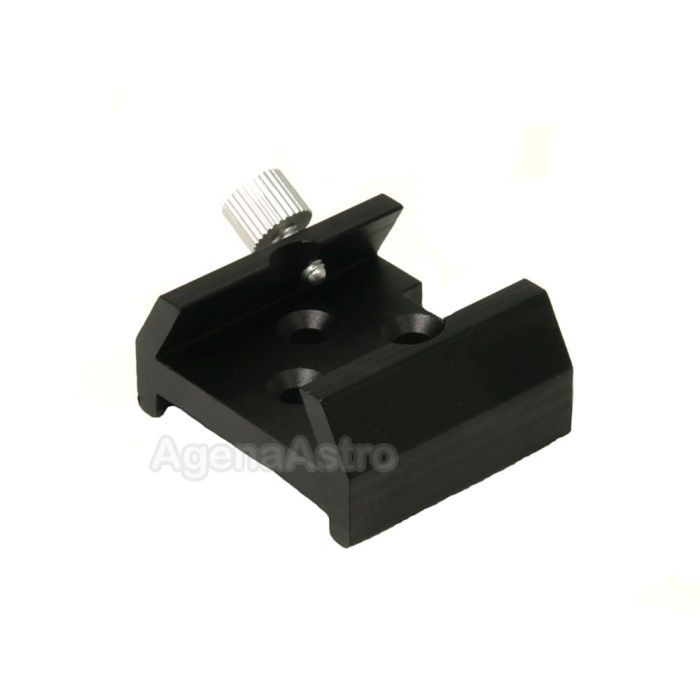

The base is made of die-cast metal and features a large thumbscrew lock. Includes one (not two) M4 screw. Finish may be smooth black or hammertone gray, depending on available stock. Style of large silver locking thumbscrew may vary.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
In many telescope rack-and-pinion (R&P) focusers, the base for your finder bracket is molded onto the focuser body. When you replace your existing focuser with a Crayford focuser, you will lose this base to mount your finder. We sell an optional Synta/GSO-compatible dovetail base modified to fit GSO focusers so that you can attach your Synta/GSO-compatible finder brackets again. Thus, you will be able to mount your red dot, multi-reticle, or larger conventional finder on your telescope. Will work with most compatible bracket designs from Celestron, Orion, Synta, Vixen, etc.
This will work on most single or dual speed GSO refractor focusers. Installation on GSO Crayford focusers is very easy and one M4 screw is included to mount the base on the focuser. However, it will not work with William Optics focusers which use a larger M5 screw, or the GSO 112mm linear bearing focuser which does not have the 4mm set screw on the body. Also not meant for SCT telescopes which need a wider screw hole spacing.
Can also be used with many other telescope tubes. Drilled (but not threaded) to accommodate screws up to 4mm in diameter. Center-to-center screw hole spacing on your telescope must be 18.6mm (0.76") in order for this dovetail base to be compatible. Fits tubes 3.25" and larger in tube diameter (not telescope aperture), as well as flat surfaces.
Please see the photos above for detailed dimensions and to determine compatibility with your telescope or finder/finder bracket - we are unable to make specific recommendations about compatibility. Please also note that the hole spacing for the two additional screws along the optical axis (one of which is used for attaching this base to a focuser) is not fixed. Since only one screw hole is to be used at a time, this is not an issue.
The base is made of die-cast metal and features a large thumbscrew lock. Includes one (not two) M4 screw. Finish may be smooth black or hammertone gray, depending on available stock. Style of large silver locking thumbscrew may vary.
