Agena Synta / Vixen Style Dovetail Mounting Base / Shoe for Finders - For SCT
Availability: Please contact us for an update
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Synta-style dovetail base for finders and finder brackets. Same design as our Universal dovetail base, but this has a wider screw hole spacing. For use on many, but not all, SCT telescopes primarily, but can be used on other telescope tubes as well. Will work with most compatible bracket designs from Celestron, Orion, Synta, Vixen, etc.
However, this item may not work with some finder brackets from Orion, Antares and others as some of these can be a bit wider than this shoe can accommodate. To determine fit before purchase, please see the cross-section schematic diagram shown on photo 3 above and compare that to the foot of your stalk/holder before purchase.
Can accommodate screws up to 5mm in diameter. Center-to-center screw hole spacing on your telescope must be between 20mm (0.79") minimum and 37mm (1.46") maximum in order for this dovetail base to be compatible. Fits tubes 5" and larger in tube diameter (not telescope aperture), as well as flat surfaces. Please check your telescope tube's finder hole spacing before ordering.

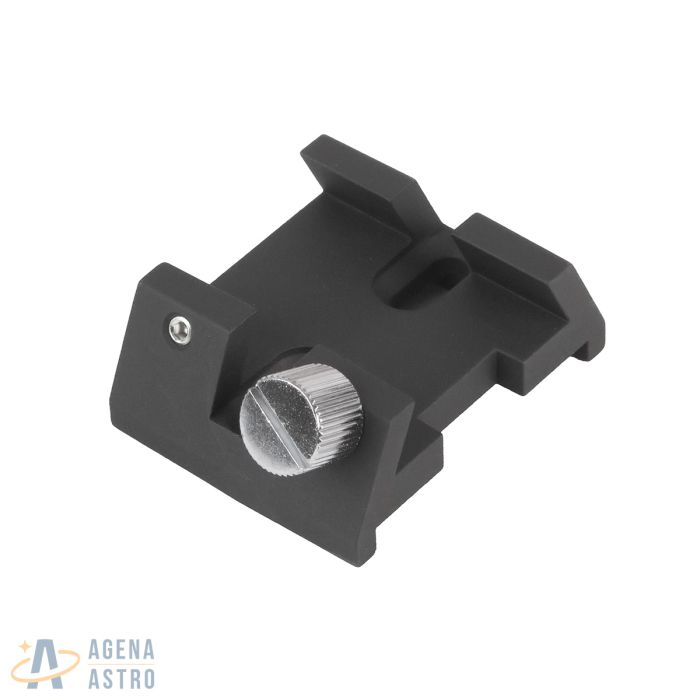

The base is made of die-cast metal and features a large thumbscrew lock. No mounting screws are included. SCT owners will typically use the screws already on their tube or you may have to source these locally depending on what your telescope needs. Smooth black finish. Style of large silver locking thumbscrew may vary.
Please also note that this finder shoe has only one large locking thumbscrew (as pictured above). There is another threaded hole on the base on the same side that is plugged by a small setscrew. You can utilize this for an even firmer hold if you like (although we don't find it necessary), but note that a 2nd large thumbscrew is not included nor missing nor broken.
