Agena Universal Afocal Film / Digital / Video Camera Adapter - For Digital Cameras
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
If you are looking for a simple and economical way to get into digital astrophotography with your telescope, this is perhaps the easiest way to get started. Functionally, this adapter is identical to Orion's SteadyCam adapter and other similar adapters sold under various brand names.
The universal Afocal (through the eyepiece) adapter allows you to securely mount your non-SLR digital camera or camcorder and take pictures of the Moon, bright planets, bright deep sky objects or terrestrial subjects through the telescope eyepiece fitted to the telescope. This bracket does not use your cameras filter ring to support the camera as the other adapters above do. Instead, the camera's tripod socket carries the cameras weight to the eyepiece end.
To minimize vignetting of the photographed images, you will usually need an eyepiece with a focal length ranging from 20mm to 40mm. Please note that this adapter is not suited for digital SLR (DSLR) cameras. The "Digital Camera" model will work for most digital cameras and small video cameras. The "Video Camera" model is the same but has thicker shafts to reduce flexing and is recommended for heavier digital or video cameras.
All parts (except the nylon screw and the metal set screw) are precision machined from aluminum. With complete control along all three axes of motion, you can position your camera percisely over the eyepiece.
Using this adapter is actually easier than it may seem from this description. To use this adapter:

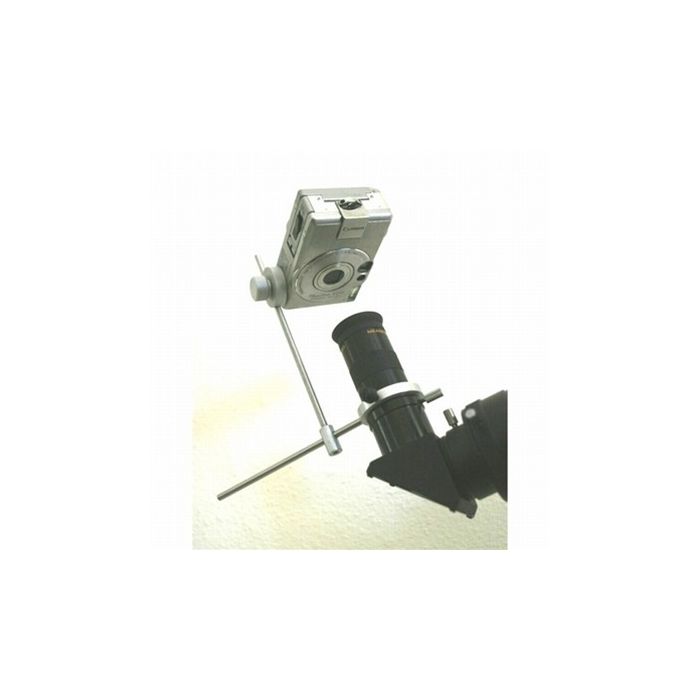

(1) Slide the 1.25" ring on the "distance arm" (A in photo) around your desired 1.25" eyepiece and tighten it using the non-marring nylon screw on the eyepiece ring.
(2) Then, slide the "height" arm (B) on to the "distance arm".
(3) Next, attach your film, digital or video camera to the "camera plate" (C) be screwing the bolt on the plate in to the tripod socket on the base of your camera.
(4) You can now slide the camera plate + camera in to the "distance arm" and lock it in place at the desired height above the eyepiece.
(5) Finally, use the allen key (D) to loosen and tighten the set (grub) screws on the distance and/or height arms to position the camera at the desired orientation so that the camera lens sits directly above the eyepiece at the desired distance. An extra set screw (E) is also included.
No additional instructions are included with the adapter (besides the description above). Using this adapter is a bit tricky the first couple of times, but after that, positioning the camera at the correct angle and distance will become second nature.
