Agena V Series Vixen-Style Dovetail Plate - 530mm (20.8") Length
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

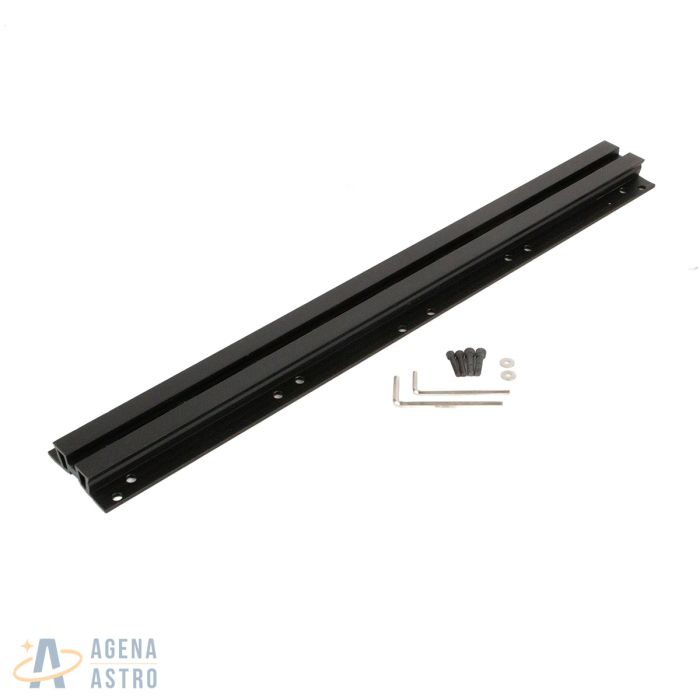

This Agena Vixen-style dovetail bar will allow you to mount your telescope to any saddle that accepts Vixen dovetails such as Vixen, Celestron, SkyWatcher, IOptron, ZWO, Losmandy and others. Includes thirteen threaded and twenty non-threaded mounting holes. Anodized black.
Specifications:
- Length: 530mm (20.8")
- Width: 70mm (3.75")
- Height: 20.0mm (1.25")
- Max dovetail width: 43.3mm (1.7")
- Weight: 24.48oz (1.53lbs)
- (4x) threaded M5x0.8 holes
- (9x) threaded 1/4"-20 holes
- (20x) non-threaded holes
- (2x) 8-32 socket head cap screws
- (2x) 10-24 socket head cap screws
- (2x) Allen keys
- (2x) washers
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
This Agena Vixen-style dovetail bar will allow you to mount your telescope to any saddle that accepts Vixen dovetails such as Vixen, Celestron, SkyWatcher, IOptron, ZWO, Losmandy and others. Includes thirteen threaded and twenty non-threaded mounting holes. Anodized black.
Specifications:
- Length: 530mm (20.8")
- Width: 70mm (3.75")
- Height: 20.0mm (1.25")
- Max dovetail width: 43.3mm (1.7")
- Weight: 24.48oz (1.53lbs)
- (4x) threaded M5x0.8 holes
- (9x) threaded 1/4"-20 holes
- (20x) non-threaded holes
- (2x) 8-32 socket head cap screws
- (2x) 10-24 socket head cap screws
- (2x) Allen keys
- (2x) washers
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Agena V Series Vixen-Style Dovetail Plate - 530mm (20.8") Length # VP-530A
