Agena V Series Vixen-Style Dovetail Rail - 220mm (8.7") Length
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

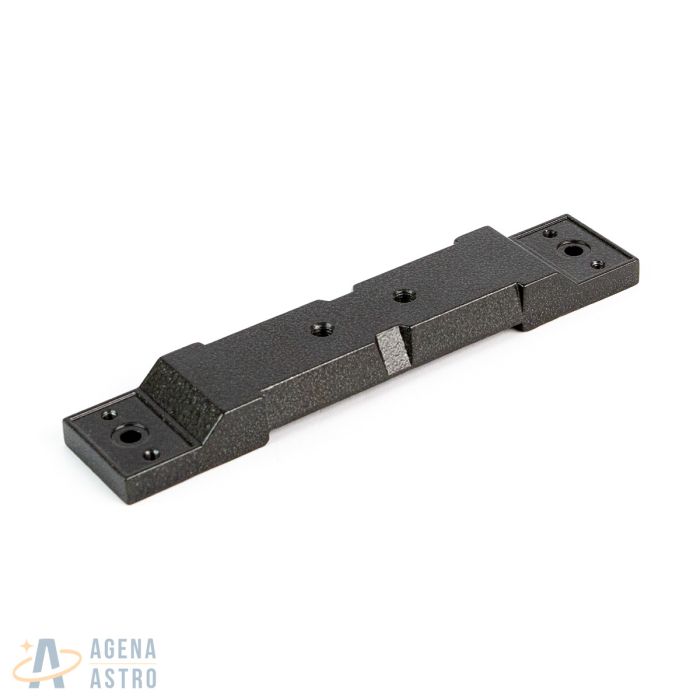

The Agena Vixen-style 8.7" dovetail bar is made of aluminum and features a gunmetal gray finish similar to the color of many equatorial mounts sold today. This will allow you to couple telescope tubes to a telescope mount. It will fit most Vixen, Synta and other mounts that use a Vixen standard mounting base. The dovetail bar is 8.7" long and 1.67" wide. The two center M8x1.25 holes are threaded while the other two M8x1.25 holes are non-threaded. The two M8x1.25 holes in the center of the plate are 1.39" apart (center-to-center) and the two M8x1.25 holes at the edges are 7.5" apart. There are also four 10-32" threaded holes. Two at each end spaced 1.06" apart. Weight = 6.34oz / 180g.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
The Agena Vixen-style 8.7" dovetail bar is made of aluminum and features a gunmetal gray finish similar to the color of many equatorial mounts sold today. This will allow you to couple telescope tubes to a telescope mount. It will fit most Vixen, Synta and other mounts that use a Vixen standard mounting base. The dovetail bar is 8.7" long and 1.67" wide. The two center M8x1.25 holes are threaded while the other two M8x1.25 holes are non-threaded. The two M8x1.25 holes in the center of the plate are 1.39" apart (center-to-center) and the two M8x1.25 holes at the edges are 7.5" apart. There are also four 10-32" threaded holes. Two at each end spaced 1.06" apart. Weight = 6.34oz / 180g.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Agena V Series Vixen-Style Dovetail Rail - 220mm (8.7") Length # VR-220A
