Agena V Series Vixen-Style Universal Dovetail Bar - 180mm (7.1") Length
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

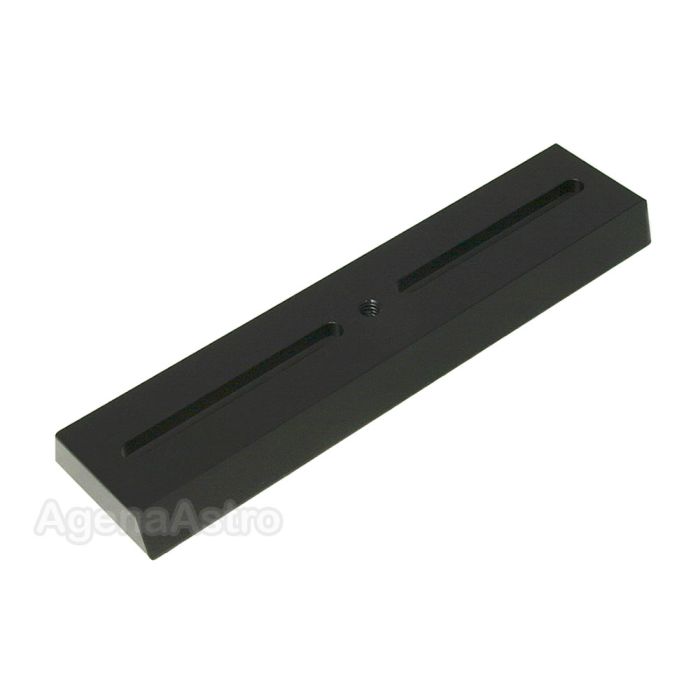

Solid "V" Series or Vixen-Style Dovetail Bar. Fits many popular telescope mounts from Celestron, Meade, Orion, Sky-Watcher, Vixen and others.
Features a single 1/4"-20 threaded hole in the middle, and two long slots on either side of this hole. These slots make it easy to use this dovetail rail with a variety of hole spacing on telescope tubes or rings, making this one of our most versatile dovetail rails. Will accommodate screws/tube rings spaced between 28mm (1.10") and 155mm (6.10").
The slots can accommodate 6mm or 1/4" screws and is countersunk on the bottom for screw heads up to 14.8mm in diameter. Each slot is almost 71mm (2.79") long.
Total dovetail plate length is 180mm (approx. 7.1") long and weighs 7.6 oz. 42.4mm (1.67") wide at the bottom and 35.8mm (1.41") wide at the top. Total thickness is 15mm (0.59").
Old part #: DR03, New part #: VR-180A
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
Solid "V" Series or Vixen-Style Dovetail Bar. Fits many popular telescope mounts from Celestron, Meade, Orion, Sky-Watcher, Vixen and others.
Features a single 1/4"-20 threaded hole in the middle, and two long slots on either side of this hole. These slots make it easy to use this dovetail rail with a variety of hole spacing on telescope tubes or rings, making this one of our most versatile dovetail rails. Will accommodate screws/tube rings spaced between 28mm (1.10") and 155mm (6.10").
The slots can accommodate 6mm or 1/4" screws and is countersunk on the bottom for screw heads up to 14.8mm in diameter. Each slot is almost 71mm (2.79") long.
Total dovetail plate length is 180mm (approx. 7.1") long and weighs 7.6 oz. 42.4mm (1.67") wide at the bottom and 35.8mm (1.41") wide at the top. Total thickness is 15mm (0.59").
Old part #: DR03, New part #: VR-180A
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
Agena V Series Vixen-Style Universal Dovetail Bar - 180mm (7.1") Length # VR-180A
