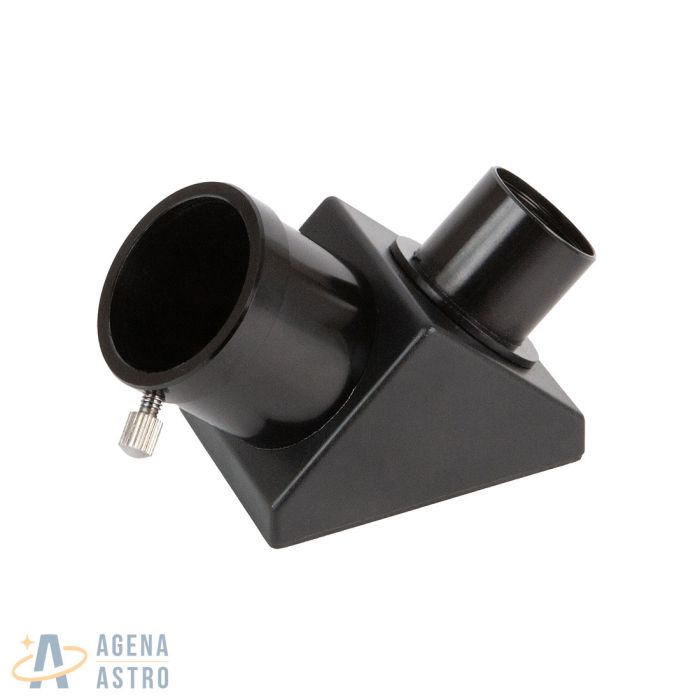

Antares 0.965"/1.25" 90-deg Hybrid Mirror Star Diagonal
Availability: Please contact us for an update
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
0.965" input-1.25" eyepiece holder mirror diagonal. Aluminum surface with SiO2 overcoat
The Antares MSDH hybrid diagonal provides convenient right angle viewing with refractors and cassegrains. The input aluminium barrel diameter is the Japan standard 0.965" and the receiver allows for use of 1.25" eyepieces and accessories. The reflecting flat mirror is aluminized and protected with SiO2 overcoat. The prism housing is made of high grade ABS plastic and the 1.25" and 0.965" barrels are made from precision machined aluminum. Comes with one 1.25" dust plug. Weight: 3.3oz.
Important Note: Please note that the length of the 0.965" aluminium nosepiece is 21mm (0.83"). Before purchasing, please make sure that the thumbscrew on your telescope is within this distance from the rear end of your focuser drawtube. Otherwise, the thumbscrew will not be able to engage and lock the diagonal. This is a known issue with some vintage telescopes in which the locking thumbscrew on the telescope is recessed by more than 0.83", and this diagonal will not work for you.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
0.965" input-1.25" eyepiece holder mirror diagonal. Aluminum surface with SiO2 overcoat
The Antares MSDH hybrid diagonal provides convenient right angle viewing with refractors and cassegrains. The input aluminium barrel diameter is the Japan standard 0.965" and the receiver allows for use of 1.25" eyepieces and accessories. The reflecting flat mirror is aluminized and protected with SiO2 overcoat. The prism housing is made of high grade ABS plastic and the 1.25" and 0.965" barrels are made from precision machined aluminum. Comes with one 1.25" dust plug. Weight: 3.3oz.
Important Note: Please note that the length of the 0.965" aluminium nosepiece is 21mm (0.83"). Before purchasing, please make sure that the thumbscrew on your telescope is within this distance from the rear end of your focuser drawtube. Otherwise, the thumbscrew will not be able to engage and lock the diagonal. This is a known issue with some vintage telescopes in which the locking thumbscrew on the telescope is recessed by more than 0.83", and this diagonal will not work for you.
