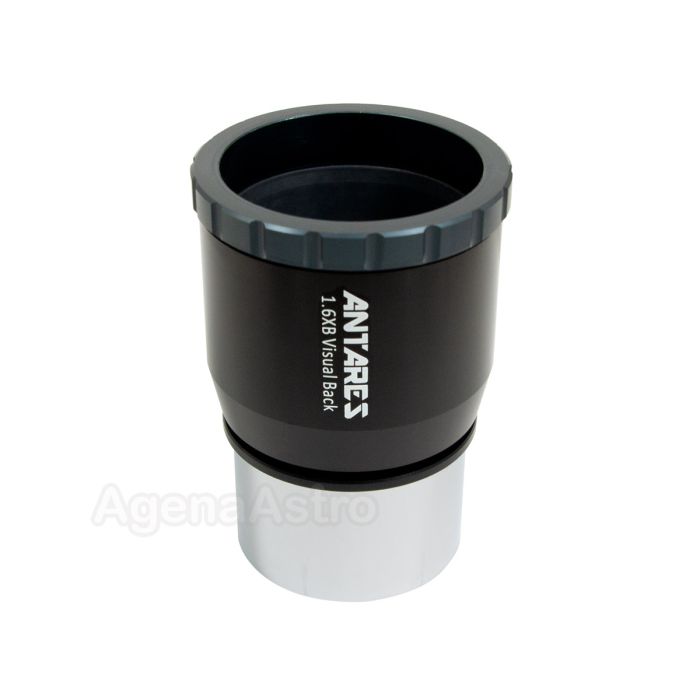

Antares 2" 1.6x Photo-Visual Barlow Lens with Twist Lock
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Important note: Minor optical imperfections (such as a couple of tiny dust particles between lens elements, uneven lens edge blackening, very minor coating blemishes, or even a very small fine lens scratch or two) are very common in most Antares products and must be accepted as normal. However, these will not impact optical performance. Also, Antares' products often have rough mechanical finish and sharp edges are, unfortunately, common as well. Despite these shortcomings, Antares products continue to be popular, especially given their price-performance ratio, but if you're expecting a perfect cosmetic product, then Antares products might not be for you.
New Photo-Visual dual use model with twist lock eyepiece holder
For observers who want to power-up their 2" eyepieces, the Antares model 2UBSTL barlow lens with twist lock offers a 1.6x increase in magnification and reduced spherical aberration with all oculars. With a clear aperture of 1.52" (38.6mm), this fully multicoated achromatic design will work with telescopes with the 2" format, including those using a 2" diagonal.
This new version of Antares' popular 2UBS barlow features an integrated twist-lock adapter / clamping mechanism to securely center and hold your eyepiece. The inner compression ring is made of polypropylene and will not mar your eyepieces.
The barlow features edge-blackened elements and internal baffling. When used with a diagonal, this barlow will provide approximately 2.4x if placed before the diagonal or 1.6x if inserted into the diagonal.
And that is not all. An innovative design tweak allows you to attach a DSLR or other camera to the lower part of the barlow to use it as a photographic 1.6x barlow as well. Unscrewing the lower 2" nosepiece (silver barrel) that contains the barlow lens elements from the upper 2" eyepiece holder (black portion) exposes a 42mm male T/T2 thread. Just use a camera-specific T ring for your brand of DSLR (not included) to couple your camera body to the barlow via this thread.
Please note that a nominal magnfication factor of 1.6x will be maintained with Nikon and Canon DSLR cameras. The magnification factor will be smaller when used with other cameras with smaller than approx. 55mm backfocus, unless you insert additional spacers to push back your camera's image plane to get 1.6x again.
Specifications:
- Barrel size: 2" / 50.8mm
- Magnification factor: 1.6x
- Type: Achromatic
- Coatings: Fully multicoated, Blackened lens edges
- Clear aperture = 1.52" / 38.6mm
- Weight: 9.2oz / 261g (visual mode); 4.9oz / 140g (photo mode)
- Total length: 3.66" / 93mm (+/- 2mm depending on exact position of clamping stop)
- Insertion depth = 1.81" / 46mm
- Maximum width = 2.48" / 63.1mm
- Filter threads: Yes (Standard 2" filter threads, M48x0.75)
- End caps: Yes (but subject to change without notice)
- Country: Made in Canada
Note that the use of any optical element like barlows and focal reducers changes the focus point of your telescope, requiring additional in-focus or out-focus travel. The exact amount of focus travel required will depend on the optics and mechanics of your specific set-up (telescope, diagonal (if used), barlow, and eyepiece). Hence, be aware that you may not be able to reach focus with all eyepieces or in all configurations with a given barlow.
| Manufacturer | Antares |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Important note: Minor optical imperfections (such as a couple of tiny dust particles between lens elements, uneven lens edge blackening, very minor coating blemishes, or even a very small fine lens scratch or two) are very common in most Antares products and must be accepted as normal. However, these will not impact optical performance. Also, Antares' products often have rough mechanical finish and sharp edges are, unfortunately, common as well. Despite these shortcomings, Antares products continue to be popular, especially given their price-performance ratio, but if you're expecting a perfect cosmetic product, then Antares products might not be for you.
New Photo-Visual dual use model with twist lock eyepiece holder
For observers who want to power-up their 2" eyepieces, the Antares model 2UBSTL barlow lens with twist lock offers a 1.6x increase in magnification and reduced spherical aberration with all oculars. With a clear aperture of 1.52" (38.6mm), this fully multicoated achromatic design will work with telescopes with the 2" format, including those using a 2" diagonal.
This new version of Antares' popular 2UBS barlow features an integrated twist-lock adapter / clamping mechanism to securely center and hold your eyepiece. The inner compression ring is made of polypropylene and will not mar your eyepieces.
The barlow features edge-blackened elements and internal baffling. When used with a diagonal, this barlow will provide approximately 2.4x if placed before the diagonal or 1.6x if inserted into the diagonal.
And that is not all. An innovative design tweak allows you to attach a DSLR or other camera to the lower part of the barlow to use it as a photographic 1.6x barlow as well. Unscrewing the lower 2" nosepiece (silver barrel) that contains the barlow lens elements from the upper 2" eyepiece holder (black portion) exposes a 42mm male T/T2 thread. Just use a camera-specific T ring for your brand of DSLR (not included) to couple your camera body to the barlow via this thread.
Please note that a nominal magnfication factor of 1.6x will be maintained with Nikon and Canon DSLR cameras. The magnification factor will be smaller when used with other cameras with smaller than approx. 55mm backfocus, unless you insert additional spacers to push back your camera's image plane to get 1.6x again.
Specifications:
- Barrel size: 2" / 50.8mm
- Magnification factor: 1.6x
- Type: Achromatic
- Coatings: Fully multicoated, Blackened lens edges
- Clear aperture = 1.52" / 38.6mm
- Weight: 9.2oz / 261g (visual mode); 4.9oz / 140g (photo mode)
- Total length: 3.66" / 93mm (+/- 2mm depending on exact position of clamping stop)
- Insertion depth = 1.81" / 46mm
- Maximum width = 2.48" / 63.1mm
- Filter threads: Yes (Standard 2" filter threads, M48x0.75)
- End caps: Yes (but subject to change without notice)
- Country: Made in Canada
Note that the use of any optical element like barlows and focal reducers changes the focus point of your telescope, requiring additional in-focus or out-focus travel. The exact amount of focus travel required will depend on the optics and mechanics of your specific set-up (telescope, diagonal (if used), barlow, and eyepiece). Hence, be aware that you may not be able to reach focus with all eyepieces or in all configurations with a given barlow.
| Manufacturer | Antares |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Antares 2" 1.6x Photo-Visual Barlow Lens with Twist Lock # 2UBSTL
