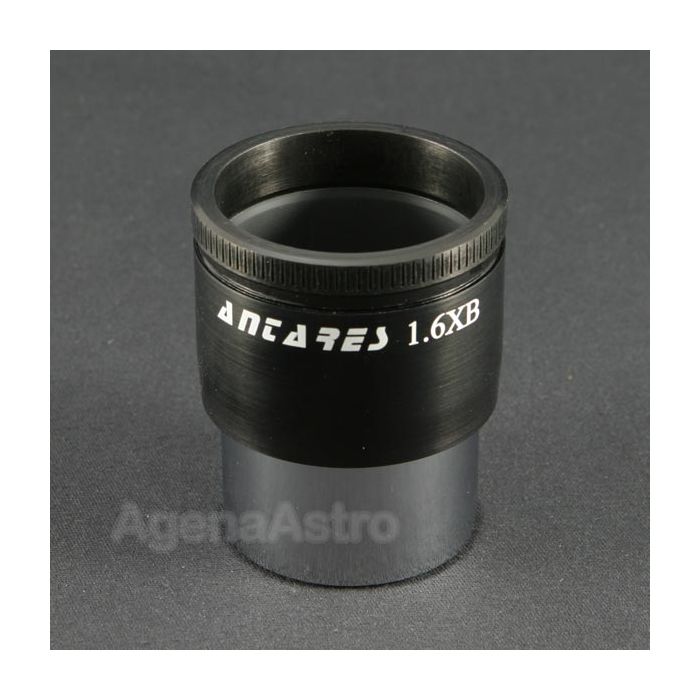

Antares 2" 1.6x Barlow Lens with Twist-Lock Adapter
Availability: Item has been discontinued by Agena and we no longer carry this item
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
New model with twist lock adapter instead of set-screws.
For observers who want to power-up their 2" eyepieces, the Antares model 2UBSTL barlow lens with twist lock offers a 1.6x increase in magnification and reduced spherical aberration with all oculars. With a clear aperture of 1.64" (41.8mm) and a short length tube, this fully multicoated achromatic design will work with telescopes with the 2" format, including those using a 2" diagonal.
This new version of Antares' popular 2UBS barlow features an integrated twist-lock adapter / clamping mechanism to securely center and hold your eyepiece. The inner compression ring is made of polypropylene and will not mar your eyepieces.
Features edge-blackened elements, and internal baffling. When used with a diagonal, this barlow will provide approximately 2.4x if placed before the diagonal or 1.6x if inserted into the diagonal.
Specifications:
- Barrel size: 2" / 50.8mm
- Magnification factor: 1.6x
- Type: Achromatic
- Coatings: Fully multicoated, Blackened lens edges
- Clear aperture = 1.64" / 41.8mm
- Weight: 9.2oz / 261g
- Total length: 2.87" / 73mm (+/- 2mm depending on exact position of clamping stop)
- Length of lower chrome barrel: 1.16" / 29.6mm
- Length of upper black barrel: 1.71" / 43.4mm
- Maximum width = 2.35" / 59.8mm
- Filter threads: Yes (Standard 2" filter threads, M48x0.75)
- End caps: Yes (1 - lower only) but subject to change without notice
- Country: Assembled in Canada using Japanese optics
Note that the use of any optical element like barlows and focal reducers changes the focus point of your telescope, requiring additional in-focus or out-focus travel. The exact amount of focus travel required will depend on the optics and mechanics of your specific set-up (telescope, diagonal (if used), barlow, and eyepiece). Hence, be aware that you may not be able to reach focus with all eyepieces or in all configurations with a given barlow.
Please note: A couple of tiny dust particles between lens elements, uneven lens edge blackening, very minor coating blemishes, or even a very small fine lens scratch or two are very common in this Antares product and must be accepted as normal. However, these will not impact optical performance.
| Manufacturer | Antares |
|---|---|
| Product Banner Type | discontinued |
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
