Antares Crayford Adapter Plate/Bushing for Schmidt-Cassegrain Telescopes
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Description

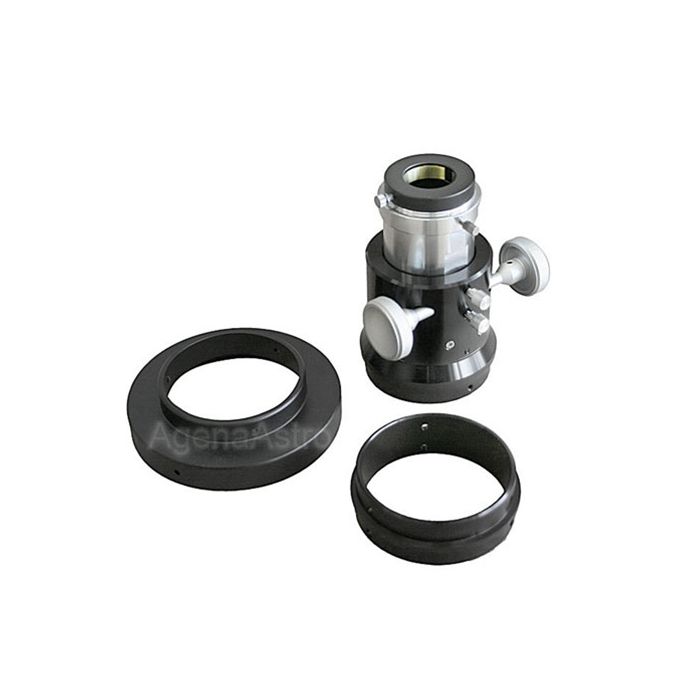

Antares sells a variety of adapters/bushings to attach GSO-style Crayford focusers to many telescopes. It is a trivial matter to remove the base plate from a GSO focuser and insert the focuser into any one of the adapters below using a small allen key (not included). The telescope side of these adapters has three screw holes to attach the assembly to your telescope tube (except the SCT adapter). All adapters are machined out of aluminum and anodized black.
Antares Crayford Focuser Adapter Specifications
|
Item
|
Telescope Side
|
Length
|
Weight (oz)
|
Telescope Compatibility
|
|||
|
|
Inside Diameter (mm / inches)
|
Outside Diameter (mm / inches)
|
|
|
|||
|
A102
|
87mm / 3.43"
|
96mm / 3.78"
|
32mm / 1.26"
|
3.8oz
|
102mm telescopes by Celestron, Konus, Orion, Skywatcher and others
|
||
|
A120
|
101mm / 3.98"
|
111.5mm / 4.39"
|
38mm / 1.50"
|
7.1oz
|
120mm telescopes by Celestron, Konus, Orion, Skywatcher and others
|
||
|
A150
|
122mm / 4.80"
|
138mm / 5.43"
|
39mm / 1.54"
|
12.9oz
|
150mm telescopes Celestron, Konus, Orion, Skywatcher and others
|
||
|
J102
|
86.5mm / 3.41"
|
98.5mm / 3.88"
|
32mm / 1.26"
|
4.2oz
|
102mm Antares and Meade telescopes
(Antares models 1056, 1051, 10513, 10515) |
||
|
J120
|
130mm / 5.12"
|
139.5mm / 5.49"
|
39mm
|
10.0oz
|
127mm Antares and Meade telescopes
(Antares models 1208, 12012 and Meade model AR5) |
||
|
J150
|
157mm / 6.18"
|
170mm / 6.69"
|
39mm
|
14.2oz
|
152mm Antares and Meade telescopes
(Antares model 1529 and Meade model AR6) |
||
|
CR-SCT
|
2"x24TPI (Std. SCT Thread)
|
89mm / 3.50"
|
40mm / 1.57"
|
8.3oz
|
Meade and Celestron Schmidt-Cassegrain telescopes
|
||
Notes:
1. On the focuser/eyepiece side, all the above adapters have an inner diameter of 86.5mm (3.41"). These are designed to accept GSO's Crayford refractor focusers which have a flange outer diameter of 86.4mm (3.40"). These will not work with GSO's reflector or SCT focusers, or focusers from other brands.
2. The A102/120/150 adapters usually fit inside the telescope tube.
3. The J102/120/150 adapters usually fit outside the telescope tube.
4. These adapters will also fit many other telescopes and brands not listed above. However, to determine compatibility, please measure your telescope tube dimensions and use the above specification table to find which adapter will work for you. We are unable to recommend adapters for telescopes not listed above.
