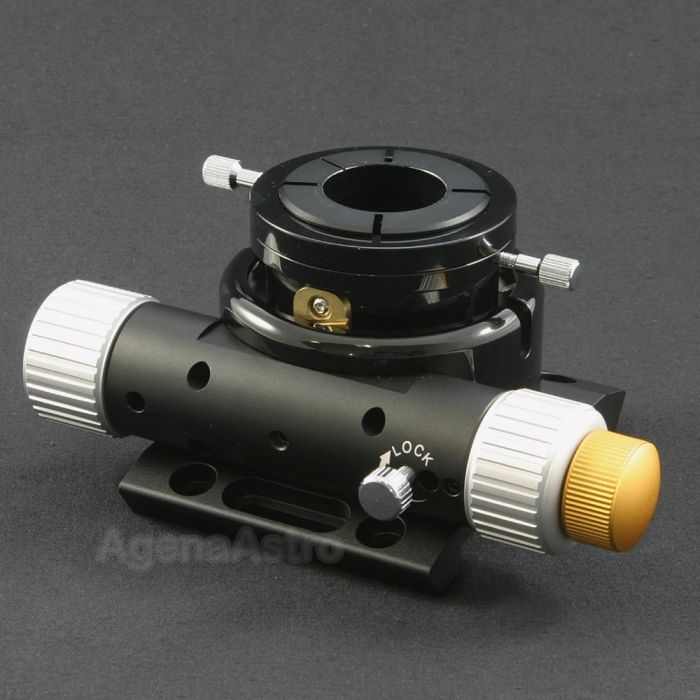

Antares 2" Low Profile Focuser with Gear Drive for Reflectors - Dual Speed
Availability: No ETA available from the manufacturer at this time
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Please note: We are unable to recommend a specific base plate for your telescope - there is no standardization in the industry and we do not have the hole mounting specification for most scopes. You will therefore need to compare the base plate specifications provided in the description below (and in the photos above) with the tube/focuser specifications on your telescope and make a choice yourself.
Description:
- New model with gear drive for heavier lifting capacity (model FOC2GLP)
- Premium 2" Dual Speed Low Profile R&P Focuser for Newtonian/Dobsonian reflector telescopes
- Made by Long Perng (same product as Orion focuser), a leading manufacturer of premium telescopes and accessories
- 11:1 fine focus control for backlash free and image-shift free focusing
- Includes integral 2" extension tube for additional back-focus travel if required
- Features drawtube tension adjustment and focus lock screws
- Includes 1.25" eyepiece adapter
- Will fit 8" or larger tubes, as well as flat tube surfaces. Drop-in replacement for many Orion Newtonian and Dobsonian telescopes, including Intelliscope dobs (will not work with SkyQuest XT8 Classic Orion dob sold before 2007 unless you drill new holes, or some models of the XT10i). Please use the information below and in the photos to confirm whether this focuser will work with your telescope.
Specifications:
All measurements below are measured from the bottom end of the flat base plate. There will be an additional gap of 1-2mm between this base plate and the telescope tube which will depend on the diameter of your telescope tube.
For use with 2 eyepieces and accessories (without 1.25 adapter):
- Focuser travel range = 0.88" (22.4mm)
- Minimum focuser height = 2.28" (58mm)
- Maximum focuser height = 3.17" (80.4mm)
For use with 1.25 eyepieces and accessories (with 1.25 adapter):
- Focuser travel range = 0.88" (22.4mm)
- Minimum focuser height = 2.36" (60mm)
- Maximum focuser height = 3.24" (82.4mm)
- 1.25" low profile adapter only adds 2mm to the above 2" measurements
- Focuser includes a 1.25 collet that can be used for added extension. This can add up to 0.85" (21.7mm) to all the above 2 heights. However, it can skew the optical axis significantly and is not recommended for use with heavy 1.25" eyepieces or for imaging use.
For use with any 1.25" or 2" eyepieces and accessories:
- Drawtube travel is 0.88" (22.4mm)
- Integral drawtube extension can be used to add 21.7mm (0.85") of additional back-focus travel
- Mounting hole pattern is 54mm (2.125") along optical axis and 90mm (3.56") perpendicular to optical axis
- Focuser weight (without 1.25" adapter) = 1lb-13.0oz (822gm)
- Focuser weight (with 1.25" adapter) = 1lb-14.8oz (873gm)
- Focus knob diameter = 1.49" (38mm)
- Microfocus knob diameter = 1.10 (27.8mm)
- Maximum outer barrel diameter = 3.31" (84.0mm)
- Millimeter markings on focuser drawtube: No
- Rotatable: No
- Dust plug: One 1.25" dust plug included
Manufacturer part number: FOC2GLP
