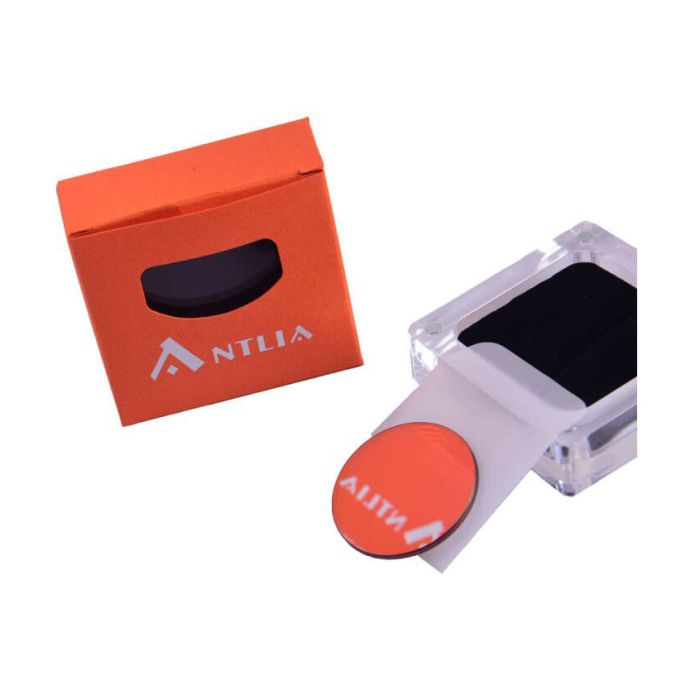

Antlia 2.5nm Narrowband Sulfur II (SII) Ultra Imaging Filter - 36mm Round Unmounted
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The Antlia SII 2.5nm Ultra filter is made with quartz glass and undergoes precisely controlled coating processes to ensure optimal performance. The 2.5nm Ultra series is designed with a FWHM (full width half maximum) of 2.5nm +0.3/-0.1nm and a transmission efficiency >93-95% at the Central Wavelength.
The quartz glass possesses an ultra-low thermal expansion coefficient with outstanding thermal and mechanical properties. When combined with advanced coating processes, these filters exhibit remarkable durability for imaging and research in the most challenging environmental conditions.
Compared to the 3nm Pro series, the 2.5nm Ultra series coated on quartz glass exhibits higher transmittance with SII≥95%. These filters are estimated to improve signal by 20-30% in your images. Additionally, the Ultra series boasts a narrower FWHM of 2.5nm+0.3/-0.1nm, resulting in an exceptionally high Signal to Noise Ratio for deep sky photography.
Features:
- High transmittance (SII≥95%) and the narrow FWHM 2.5nm +0.3/-0.1nm to maximize contrast;
- Flat-top spectrum minimizes the loss in transmission due to the Center Wavelength (CWL)-shift;
- Out of band blocking specification is designed to OD5 (0.001%) to block interference from other wavelengths and minimize halos around bright stars;
- Made of quartz glass, excellent durability and thermal stability, better fracture resistance and scratch resistance, improved coating resilience to cleaning;
- Filters are resistant to scratches;
- Identical filter thickness to existing standards and double-sided fine polishing , with utmost care for parfocality;
- The SII 2.5nm Ultra filter is recommended for use in optics with a Focus Ratio of ≥ f/3.5 for best optical performance;
- 100% of production are scanned individually, all transmission and blocking (OD) data in the box are actual, measured spectra and transmission;
- All Antlia filters are coated to the edge of the substrate and unmounted narrowband filters are edge blackened to eliminate internal reflections from stray light;
- Warranty: 3-years against delamination.
Technical Specifications:
Sulfur-II
- FWHM: 2.5nm +0.3/-0.1nm
- CWL (Central Wavelength): 672.4nm
- Peak Transmission: 95%
- Blocking: ≥OD5
- Filter Thickness: 2mm+/-0.05mm
Filter Ring:
- None. 36mm round diameter, unmounted
Not Recommended:
- Solar imaging
- Night visual observation
DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS. Serious eye damage will result if you fail to observe the warning.
