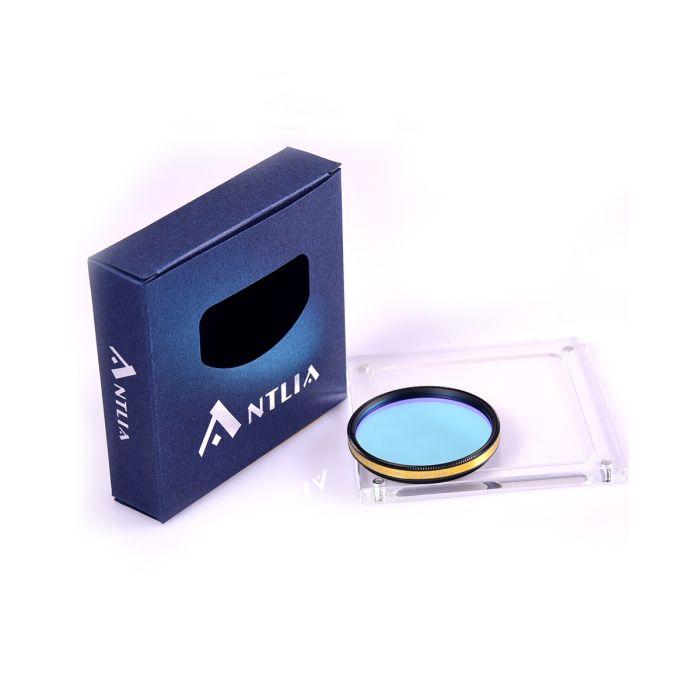

Antlia 3nm Narrowband H-Beta Pro Imaging Filter - 2" Mounted
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The Antlia H-Beta Pro narrowband filter optimizes the full width at half maximum (FWHM) to a 3nm bandpass. As the bandwidth narrows, these 3nm Pro narrowband filters enhance the contrast of emission targets by effectively reducing unwanted background signals. Designed to achieve an impressive 88% transmission at the 486.1nm line, Antlia H-Beta 3nm Pro filters provide maximum signal and well-defined nebula structures. The out-of-band blocking specification is rated at OD5 (0.001%), ensuring excellent signal-to-noise ratio (SNR) and effective cutoff rates to minimize interference from other wavelengths. These improved sharp cutoff astrophotography 3nm Pro filters are specifically engineered to reduce halos around bright stars.
The Antlia 3nm Pro series currently comprises Ha, SII, OIII, and H-Beta filters that capture exceptionally narrow data from four channels, enabling a greater range of combinations in post-production to meet your diverse requirements.
It is important to note that Antlia also offers dual narrowband filters designed for OSC cameras: the ALP-T Dualband Ha&OIII 3nm and SII&Hb 3.5nm. The synergy of these two dual band filters enables the capture of exceptionally narrow-band images with OSC cameras by acquiring spectral data from four channels—Ha, OIII, SII, and Hb. The spectra from these four channels can be separated and recombined into various color palettes during post-processing. The resulting images can enhance luminance contrast in traditional RGB-balanced images or facilitate the creation of visuals in several popular false-color palettes such as H-O-Hb, S-H-O, H-S-OHb, H-O-O, among others.
Features:
- High transmittance and smallest bandwidth to maximize contrast
- Steep spectral profile minimizes halos around bright stars
- A single substrate to eliminate internal reflections
- Narrowband Objects: H-Beta Emission Nebulae
- Use in light polluted areas and dark sites
- Extend imaging time when the moon is up
- All Antlia narrowband Pro filters can be used down to f/3 with minimal loss of signal
- All Antlia Narrowband filters unmounted are edge blackened to eliminate internal reflections from stray light
- Superior optical reliability reduces post image processing
- This filter is only effective for deep sky objects that contain H-Beta emissions
Specifications:
- FWHM (Full width at half maximum): 3nm
- CWL (Central Wavelength): 486.1nm
- Peak Transmission: 88%
- Blocking: > 5 OD (out of band blocking) @ 300-1100nm
- Filter Thickness: 2mm+/-0.05mm
- Basic Substrate: Optical, Single / Non-glued substrate
- Surface Quality: S/D (scratch/dig)= 60/40 (Refer to MIL-O-13830
- Transmitted Wavefront: Lambda/4 or better
- Parallelism: less than 30 arcsec
Filter Ring:
- 2’’ (M48x0.75)
- Ultra-thin filter cell to minimize vignetting
- Black anodized finish
- Laser engraving No fading
Not Recommended:
- Solar imaging
- Night visual observation
DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS
