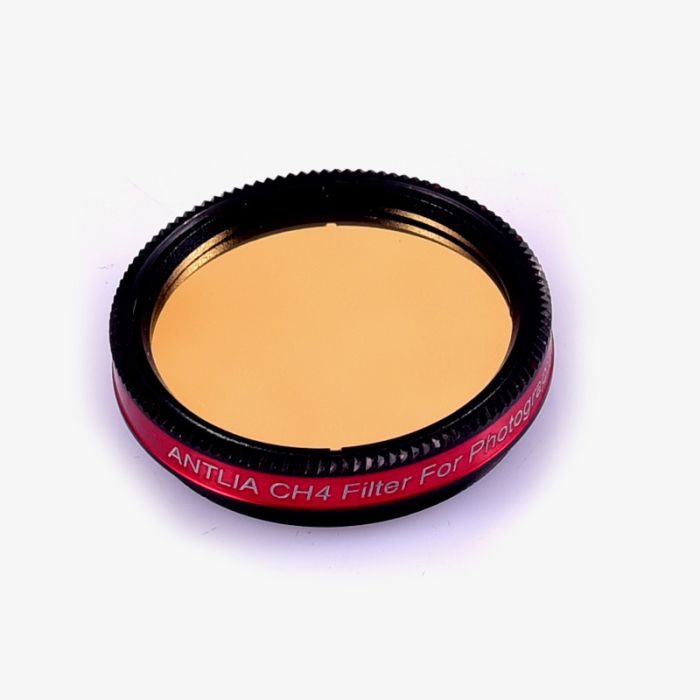

Antlia Methane CH4 Imaging Filter - 1.25"
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The Methane (CH4) filter is recommended for planetary imaging of objects like Mars, Jupiter, Saturn and the other planets.
In order to produce good results, you are likely to require relatively longer exposures times and larger aperture telescope with this filter than with other filters.
Application and Performance:
- Schott optical substrate
- 1.25” mounted, (2mm+/-0.05mm)
- Surface Quality: 60/40 (Refer to MIL-O-13830)
- 2 sides fine-optically polished to ensure accurate 1/4 wavefront
- 30 arcsec parallelism
Filter Ring:
- 1.25” Mounted (M28.5*0.6 thread)
- Ultra-thin filter cell to minimize vignetting by maximizing possible clear aperture
- Black Anodized Finish
- Laser Engraving, No Fading
Not Recommended:
- Solar Observing and imaging
- Visual observation
- DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS. Serious eye damage will result if you fail to observe the warning.
Antlia methane (CH4) filter is a specialized filter that allows light in the near infrared portion of the spectrum centered at 889nm to pass through with a bandpass that is 20nm wide. This filter was developed in order to measure finer details and more contrast of the methane that is characteristic of Jupiter, Mars, Saturn and other planets. The human eye is not sensitive to light beyond about 700nm hence no person can see what is transmitted by this filter, so this filter is not suitable for visual applications.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
The Methane (CH4) filter is recommended for planetary imaging of objects like Mars, Jupiter, Saturn and the other planets.
In order to produce good results, you are likely to require relatively longer exposures times and larger aperture telescope with this filter than with other filters.
Application and Performance:
- Schott optical substrate
- 1.25” mounted, (2mm+/-0.05mm)
- Surface Quality: 60/40 (Refer to MIL-O-13830)
- 2 sides fine-optically polished to ensure accurate 1/4 wavefront
- 30 arcsec parallelism
Filter Ring:
- 1.25” Mounted (M28.5*0.6 thread)
- Ultra-thin filter cell to minimize vignetting by maximizing possible clear aperture
- Black Anodized Finish
- Laser Engraving, No Fading
Not Recommended:
- Solar Observing and imaging
- Visual observation
- DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS. Serious eye damage will result if you fail to observe the warning.
Antlia methane (CH4) filter is a specialized filter that allows light in the near infrared portion of the spectrum centered at 889nm to pass through with a bandpass that is 20nm wide. This filter was developed in order to measure finer details and more contrast of the methane that is characteristic of Jupiter, Mars, Saturn and other planets. The human eye is not sensitive to light beyond about 700nm hence no person can see what is transmitted by this filter, so this filter is not suitable for visual applications.
