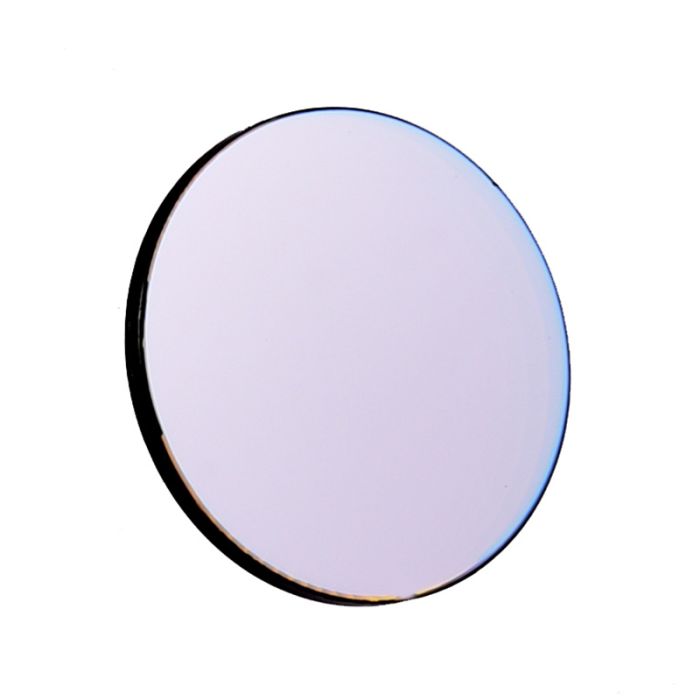

Antlia Narrowband 7nm Oxygen III (OIII) Prime Imaging Filter - 36mm Round Unmounted
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The Antlia OIII Prime narrowband filter optimizes the FWHM (full width half maximum) to 7nm bandpass. The suppression of optical density is (OD)4 on unwanted wavelengths. The excellent optical coating characteristics found in the Antlia 3nm Pro series has been incorporated into the 7nm Prime narrowband filters. The result is that these filters deliver superior SNR (signal to noise ratio) and better contrast in your images.
Antlia OIII 7nm Prime filters are designed to deliver 90% transmission at the 500.7nm line that provides you with the maximum signal to reveal the faintest OIII nebulae structures.
The out of band blocking specification is rated OD4 (0.01%) which delivers an excellent SNR (signal to noise ratio) and effective cut off rate to minimize interference from other wavelengths. Improved sharp cut off astrophotography 7nm Prime filters are designed to minimize halos around bright stars.
Antlia 7nm Prime filters can be used with nearly all systems as fast as f/2 with minimal loss in emission signal and meets the requirements of fast optics.
Application and Performance:
- 90% transmittance at Central Wavelength OIII 500.7nm
- Wider FWHM, 7nm Prime narrowband filters can be used with fast optics of f/2 with minimal loss of signal
- Steep spectral profile minimizes halos around bright stars
- A single substrate to eliminate internal reflections
- Narrowband Objects: OIII Emission Nebulae, Planetary, Wolf Rayet Nebulae and Supernova Remnants
- Use in light polluted areas and dark sites
- All Antlia unmounted narrowband filters are edge blackened to eliminate internal reflections from stray light
- Superior optical reliability reduces post image processing
- This filter is effective for deep sky objects that contain OIII emissions
Technical Data:
- Basic Substrate: Optical, Single / Non-glued substrate
- Filter Thickness: 2mm+/-0.05mm for 36mm unmounted
- FWHM (Full width at half maximum): 7nm
- CWL (Central Wavelength): 500.7nm
- Peak Transmission: ＞90%
- Blocking: > 4OD(0.01% out of band blocking) @ 300-1000nm
- Surface Quality: S/D (scratch/dig)= 60/40 (Refer to MIL-O-13830)
- Transmitted Wavefront: Lambda/4 or better.
- Parallelism: less than 30 arcsec
Filter Ring:
- None. 36mm round diameter, unmounted
Not Recommended:
- Solar Observing and imaging
- Visual observation
- DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS. Serious eye damage will result if you fail to observe the warning.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
The Antlia OIII Prime narrowband filter optimizes the FWHM (full width half maximum) to 7nm bandpass. The suppression of optical density is (OD)4 on unwanted wavelengths. The excellent optical coating characteristics found in the Antlia 3nm Pro series has been incorporated into the 7nm Prime narrowband filters. The result is that these filters deliver superior SNR (signal to noise ratio) and better contrast in your images.
Antlia OIII 7nm Prime filters are designed to deliver 90% transmission at the 500.7nm line that provides you with the maximum signal to reveal the faintest OIII nebulae structures.
The out of band blocking specification is rated OD4 (0.01%) which delivers an excellent SNR (signal to noise ratio) and effective cut off rate to minimize interference from other wavelengths. Improved sharp cut off astrophotography 7nm Prime filters are designed to minimize halos around bright stars.
Antlia 7nm Prime filters can be used with nearly all systems as fast as f/2 with minimal loss in emission signal and meets the requirements of fast optics.
Application and Performance:
- 90% transmittance at Central Wavelength OIII 500.7nm
- Wider FWHM, 7nm Prime narrowband filters can be used with fast optics of f/2 with minimal loss of signal
- Steep spectral profile minimizes halos around bright stars
- A single substrate to eliminate internal reflections
- Narrowband Objects: OIII Emission Nebulae, Planetary, Wolf Rayet Nebulae and Supernova Remnants
- Use in light polluted areas and dark sites
- All Antlia unmounted narrowband filters are edge blackened to eliminate internal reflections from stray light
- Superior optical reliability reduces post image processing
- This filter is effective for deep sky objects that contain OIII emissions
Technical Data:
- Basic Substrate: Optical, Single / Non-glued substrate
- Filter Thickness: 2mm+/-0.05mm for 36mm unmounted
- FWHM (Full width at half maximum): 7nm
- CWL (Central Wavelength): 500.7nm
- Peak Transmission: ＞90%
- Blocking: > 4OD(0.01% out of band blocking) @ 300-1000nm
- Surface Quality: S/D (scratch/dig)= 60/40 (Refer to MIL-O-13830)
- Transmitted Wavefront: Lambda/4 or better.
- Parallelism: less than 30 arcsec
Filter Ring:
- None. 36mm round diameter, unmounted
Not Recommended:
- Solar Observing and imaging
- Visual observation
- DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS. Serious eye damage will result if you fail to observe the warning.
