APM 1.25" 2.7x Coma-Correcting ED Barlow
Availability: Item has been discontinued by Agena and we no longer carry this item
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Closeout - All Sales Final
Original APM description below:

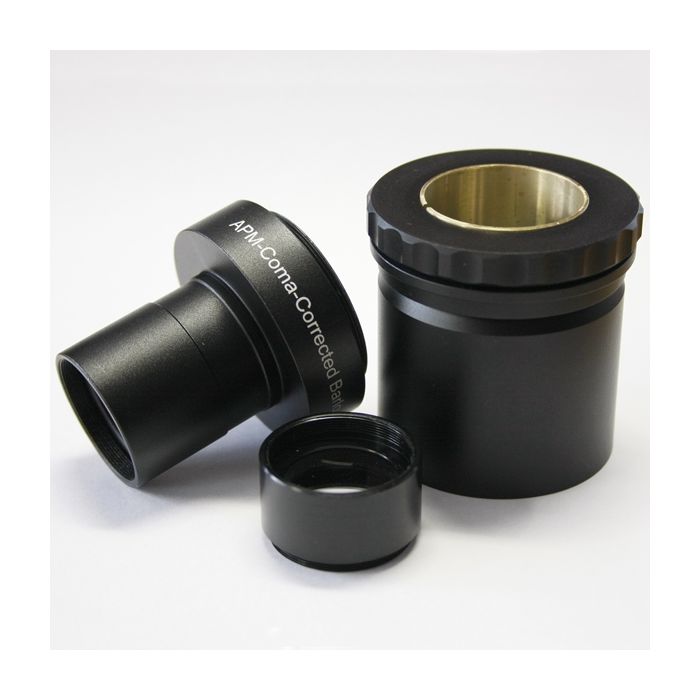

APM Comacorrecting 1 1/4" ED Barlow 2.7 x
Designed by Gerd Düring / Germany
Our totally new photo-visual apochromatic Barlow with real ED glass, calculated for the correction of Off-Axis Coma in Newtonian telescopes. This Barlow allows you to observe planets and deep sky objects at the edge from the 1.25" field of view with the same quality as on axis. Especially Dobsonian users will profit because most time the objects are not exactly centered on axis.
The photographic coma corrected field is perfect for APS-C. Because of its unique quality, this barlow can also be used with refractors, SCT, etc. with an image quality no other Barlow will reach, equal of its price.
Due forum discussions pushed, Gerd Düring in Germany designed this new, improved coma correcting ED Barlowlens, optimized for parabolic mirrors with f-ratio f/4.
This Barlow uses as ED-element the Chinese ED glass FK61 (similar to Ohara FPL51), the lenses are soft cemented and applied on both sides with a broadband multicoating with over 99% transmission for wavelength from 400 nm to 700 nm.
The optimal backfocus is 105mm from center of the last lens. The focal length of the barlow is - 62.9mm, the clear aperture is 22mm.
This barlow offers with its 22mm aperture in secondary focus a 100 % illuminated photo-visual field for APS-C when used with 105 mm backfocus.
The 2-part adapter is photo-visual optimized, visual with the optimal backfocus of 105 mm with the new APM-Deluxe Centering Brass-Clamp. This top Deluxe adapter has a length of 55 mm and can be unscrewed, than you get a photographic T2 thread (M42 x 0.75 mm) for use with DSLR with T2 adapter ring.
First results with the ED-Barlow has been amazing!
Delivery contains:
- 1 1/4" ED-Barlow Element
- 2-part Adapter
Specifications:
- Connection to camera: T2 thread
- Connection to eyepiece: 1 1/4"
- Connection to telescope: 1 1/4" and 2"
- Clamping: Brass Clamp
- Mechanical path: ca. 120 mm
- Coating: Broadband Multicoating
- Housing material: Aluminium
- Unobstructed diameter: 22 mm
- Magnification: 2.7 x
- Lenses: 2 Lenses
- Optical design: Cemented Doublet
- Made for: Newtonian Telescopes (optimized for f/4)
- Fully illuminated field: minimum 30 mm
- Resulting focal length: - 62.9 mm
- Weight: ca. 7 oz
