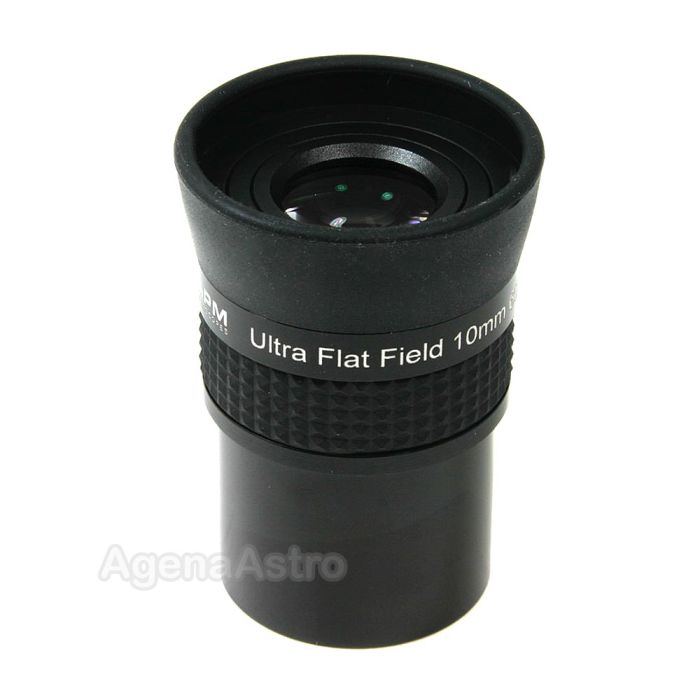

APM 1.25" Ultra Flat Field Eyepiece with 65° AFOV - 10mm
Availability: Item has been discontinued by Agena and we no longer carry this item
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Original APM description below:
The 1.25 “UltraFlat Field Eyepiece features a high quality standard and a very compact design, which is designed to remove the field curvature at the edge, resulting in a flat, distortion-free image up to the edge of the visible field of view. The eyepiece has over – sized eyepiece lenses for the largest possible field of view and a 20mm eyerelief – also suitable for spectacle wearers, the adjustable eyecups allow a comfortable view.All lenses have a braod-band-multicoating (FMC) and blackened lens edges. The plug-in sleeve is equipped with a thread for 1.25" filters.
Features:
- 1.25 “connector with integrated filter thread
- Large upper field lens for comfortable optical insight
- Suitable for eyeglasses users
- Border Sharp Image
- High quality multi-coating
- Can be used universally
All lenses (5 lenses in 4 groups) have a broad-band-multicoating (FMC) and blackened lens edges. The plug-in sleeve is equipped with a thread for 1.25" filters.
The largest diameter of the eyepiece body is 44.5 mm. Weight: 80. grams.
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | Ultra Flat Field |
| Focal Length | 10mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 60° |
| Eye Relief (Designed) | 20mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Multi-Coated |
| Lens Elements | 5 |
| Lens Groups | 4 |
| Blackened Lens Edges | Yes |
| Barrel Type | Smooth sided |
| Protective Plastic Storage Container | Yes - Free Agena Eyepiece Container |
| Protective Plastic Storage Container Size | Agena 42x60mm |
| Maximum Width | 1.75" (44.5mm) |
| End Caps | Yes |
| Rubber Eye Guard | Yes |
| Weight | 2.8 oz (80 g) |
| Hide Found a better Shipped Price on Frontend? | No |
