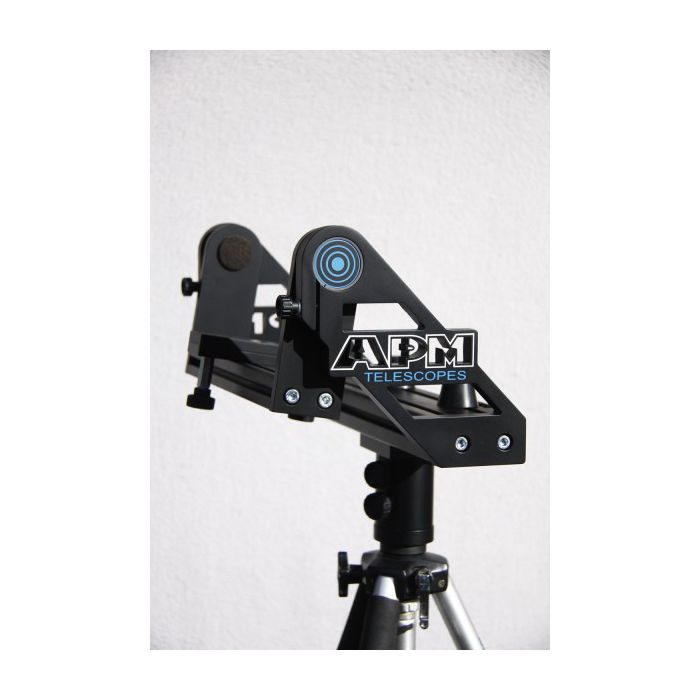

APM Alt-Az Fork Mount for Large Binoculars up to 120mm
Availability: Item has been discontinued by Agena and we no longer carry this item
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Original APM description below:
The APM fork mount is the result of user feed back. Optimal tracking coupled with nearly no vibrations and at the same time a high load capacity are unsurpassed. Therefore, the APM fork mount is the first choice for your binocular. Fields of application
- Solid azimuthal mount for Astronomy - suitable for our new APM ED 100mm and 120 mm Binocular
Features
- Alt/azimuth Forkmount
- Weight 10.6 lb
- Tripod connection with 3/8" or M10 photo tripod thread
- Panning area 360°, tilting from horizon to zenith
- Accessory interface with 3 holes and 3/8" screw
- Adjustable friction in Altitude and Azimuth
Tilting up to Zenith
Through the special fork design this mount enables you to tilt up to the zenith. So you can use it for astronomy and nature observing.
Technical Details
The Pivot bearing (base) is made as dry storage. Thus the fork is easily removable. Without Pivot bearing it only weights 4.07 kg. In addition the separate base is easily assemled on the tripod. The distance of the fork-arms ist 28 cm inside, and 36 cm outside. This fork-mount is suitable for our 100mm and 120 mm binoculars, and the 28x110 binocular.
Delivery contents
- Forkmount
- 3/8" Mounting screw
Specifications
- Material: high-strength aluminum alloy
- Type of mount: azimuthal fork mount
- Connections: Connecting thread base M10 or 3/8 double thread
- Weight = 10.6 lbs
