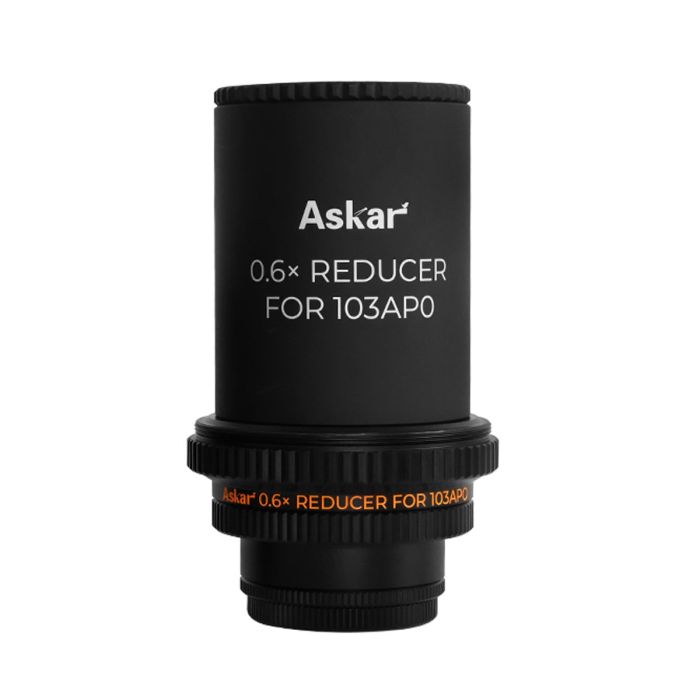

Askar 0.6x Full Frame Reducer / Flattener for 103APO Telescope
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The Askar 103 APO comes with three optional premium accessories, a 1.0x flattener, a 0.8x reducer, and a 0.6x reducer. Introduced here is the 0.6x reducer, which is optimized for the Askar 103APO, and can provide more possibilities for telescope use.

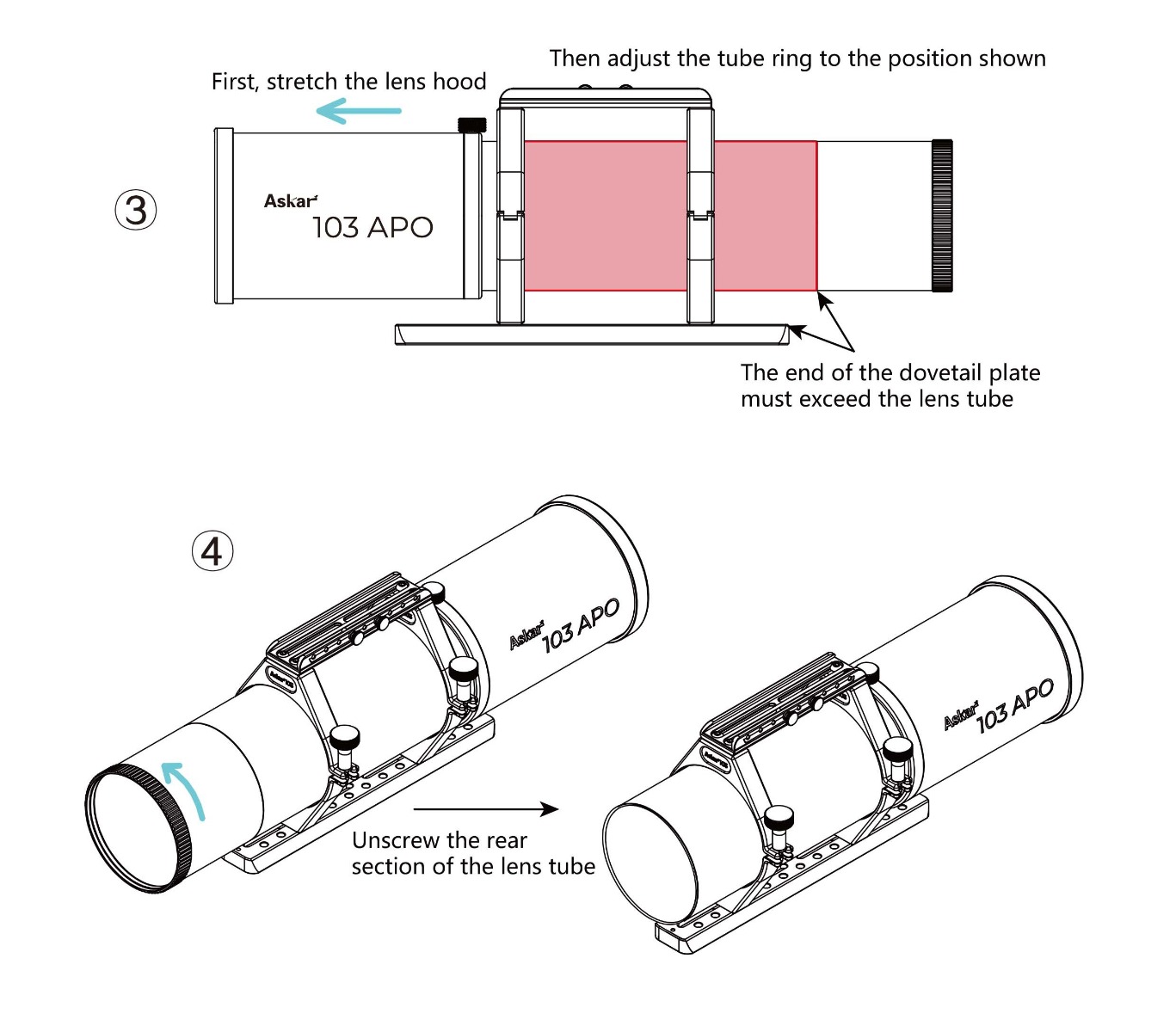

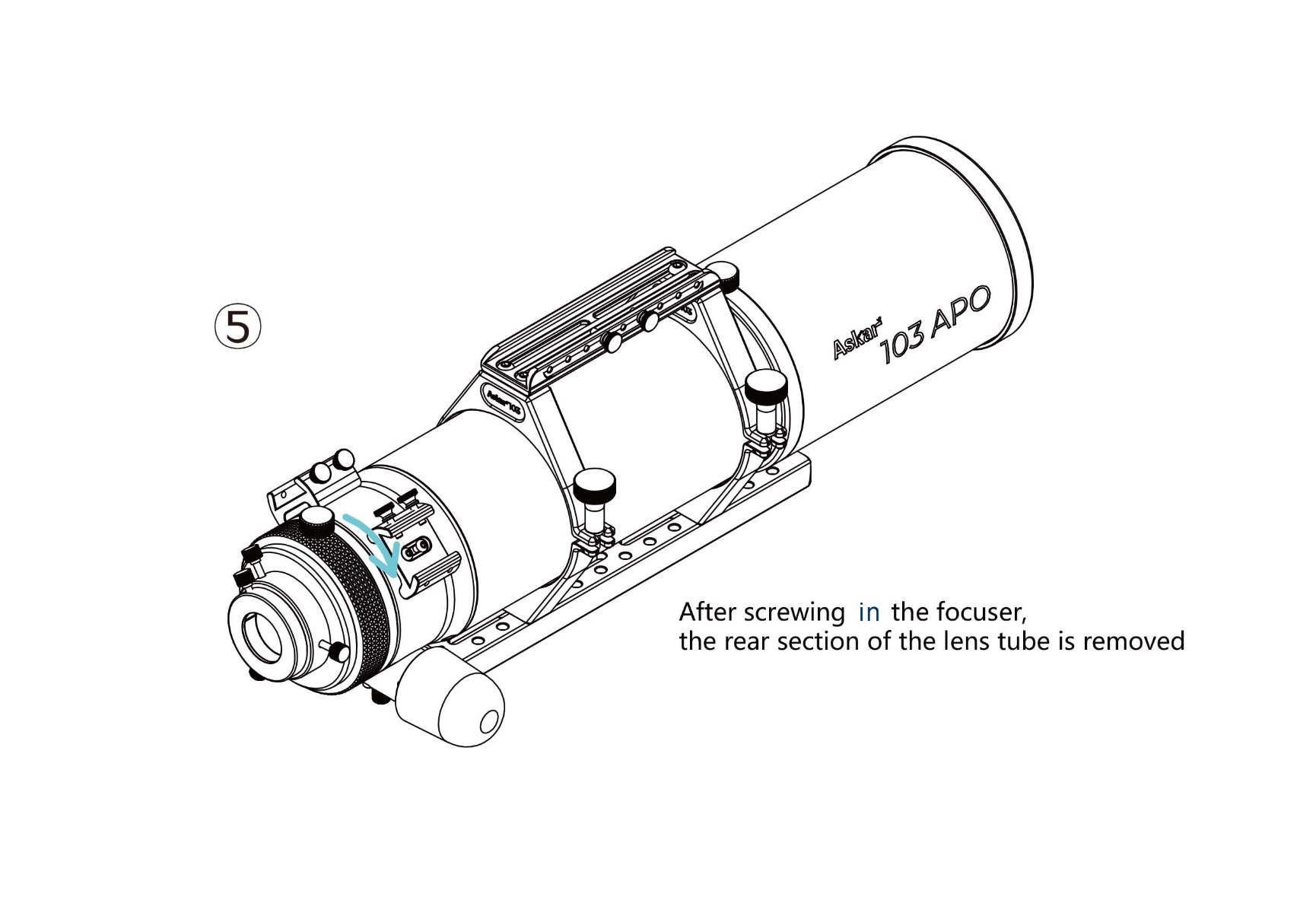

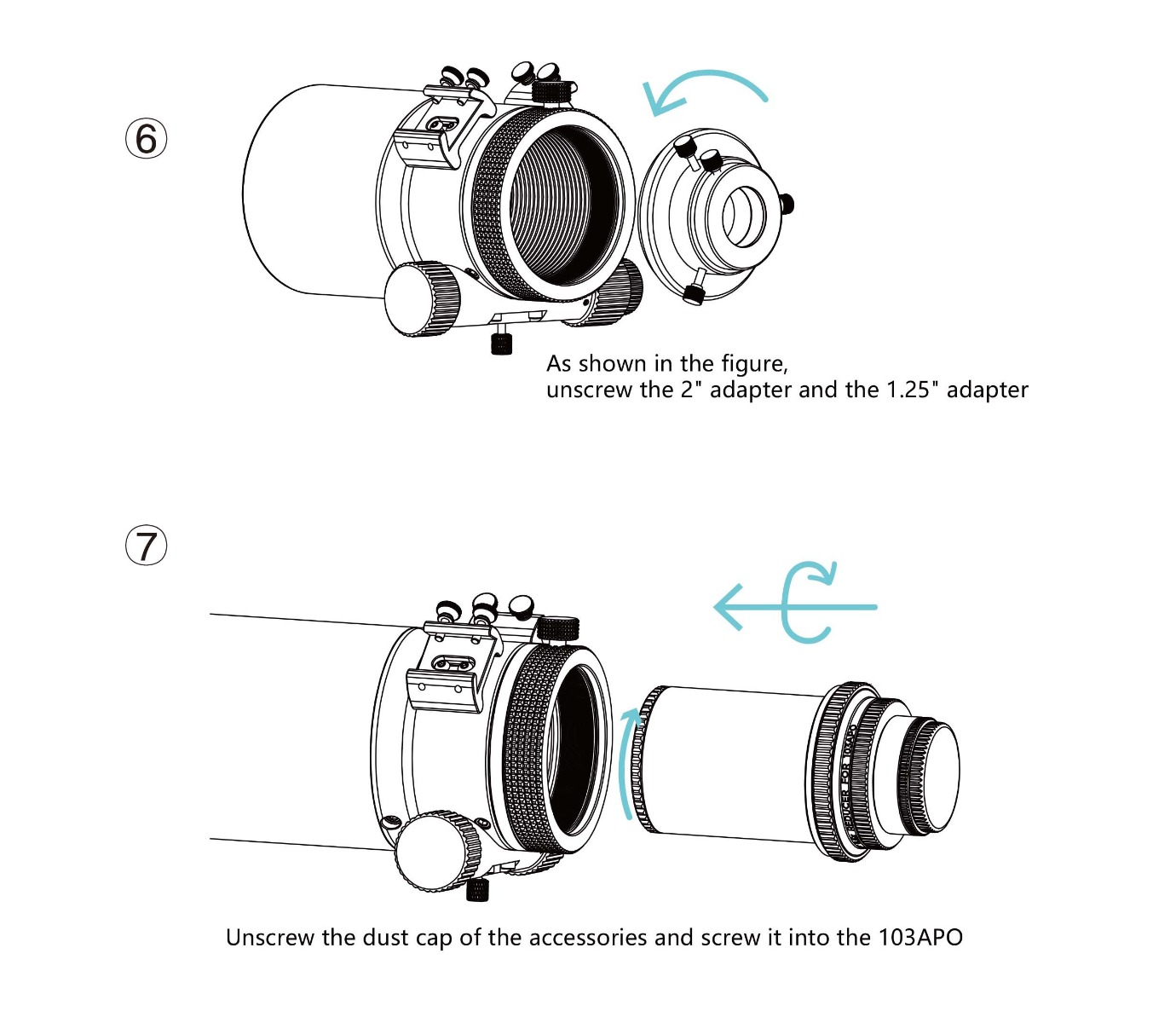

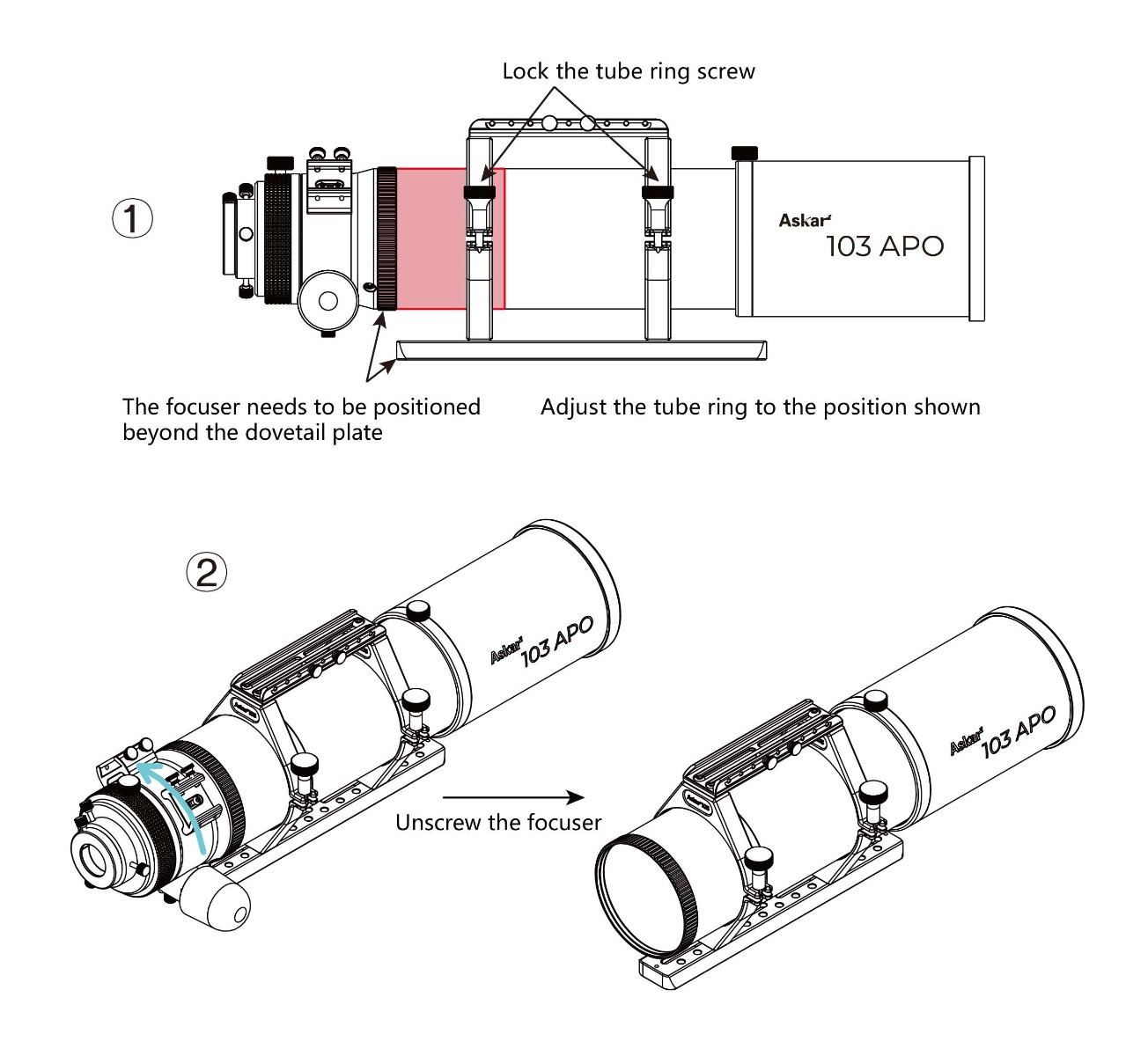

The 0.6x reducer can bring the Askar 103APO's focal ratio down to f/4 and focal length to 420mm while also providing field flattening. Askar 103APO adopts a detachable tube design, where the rear part of the tube can be removed when using the 0.6x reducer, allowing the telescope to have the necessary length to achieve an F4 focal ratio. (Please see below image for installation instructions).
The 0.6x reducer adopts a quadruplet design that also supports a 44mm full-frame image circle. The overall weight is 0.98kg. The back focus from the M48 thread is a standard 55mm. The front thread is M84*1. At the camera end, we have equipped three sizes of adapter， M68*1, M54*0.75, and M48*0.75 for easy subsequent connection and use. At the same time, the built-in M48*0.75 2-inch filter thread can be used to install filters directly. The overall CNC machined, both end threaded metal caps prevent dust when not in use.
Specifications:
- (After attaching) 103APO Focal length: 420.24mm
- (After attaching) 103APO Focal ratio: f/4.08
- Lens Number: Quadruplet design
- Back Focus: 55mm (from the base of M48 male thread）
- Weight: 0.98kg
- Rear-end thread type:M68×1
- M68×1-M54×0.75
- M54×0.75-M48×0.75 (M48×0.75 filter thread inside)
