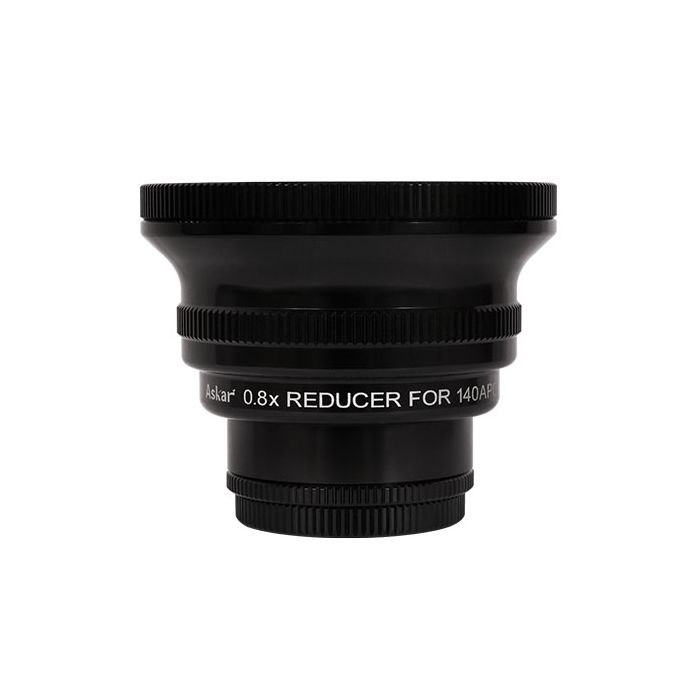

The Askar 140 APO comes with two optional premium accessories, a 1.0x flattener and a 0.8x reducer. Introduced here is the 0.8x reducer, which is optimized for the Askar 140APO, and can provide more possibilities for telescope use.
The 0.8x reducer can bring Askar 140APO's focal ratio down to F5.6. This is a standard reducer with field flattening capabilities as well. A shorter focal ratio allows the OTA to have a wider field of view and faster exposure times, making it suitable for capturing large areas of nebulae, star clusters, and faint, fast-moving celestial objects.
The 0.8x reducer adopts a triplet design and supports a 44mm full-frame image circle. The back focus from the M48 thread is a standard 55mm. The front thread is M84*1. At the camera end, it is equipped with M54*0.75 and M48*0.75 two sizes of adapters, which are convenient for connection. At the same time, it has a built-in M48*0.75 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.
Specifications:
- (After attaching) 140APO Focal length: 784mm
- (After attaching) 140APO Focal ratio: f/5.6
- Lens Number: Triplet design
- Back Focus: 55mm (from the base of M48 male thread）
- Weight: 0.63kg
- Rear-end thread type:
- M54×0.75
- M54×0.75-M48×0.75 (M48×0.75 filter thread inside)
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
The Askar 140 APO comes with two optional premium accessories, a 1.0x flattener and a 0.8x reducer. Introduced here is the 0.8x reducer, which is optimized for the Askar 140APO, and can provide more possibilities for telescope use.
The 0.8x reducer can bring Askar 140APO's focal ratio down to F5.6. This is a standard reducer with field flattening capabilities as well. A shorter focal ratio allows the OTA to have a wider field of view and faster exposure times, making it suitable for capturing large areas of nebulae, star clusters, and faint, fast-moving celestial objects.
The 0.8x reducer adopts a triplet design and supports a 44mm full-frame image circle. The back focus from the M48 thread is a standard 55mm. The front thread is M84*1. At the camera end, it is equipped with M54*0.75 and M48*0.75 two sizes of adapters, which are convenient for connection. At the same time, it has a built-in M48*0.75 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.
Specifications:
- (After attaching) 140APO Focal length: 784mm
- (After attaching) 140APO Focal ratio: f/5.6
- Lens Number: Triplet design
- Back Focus: 55mm (from the base of M48 male thread）
- Weight: 0.63kg
- Rear-end thread type:
- M54×0.75
- M54×0.75-M48×0.75 (M48×0.75 filter thread inside)
