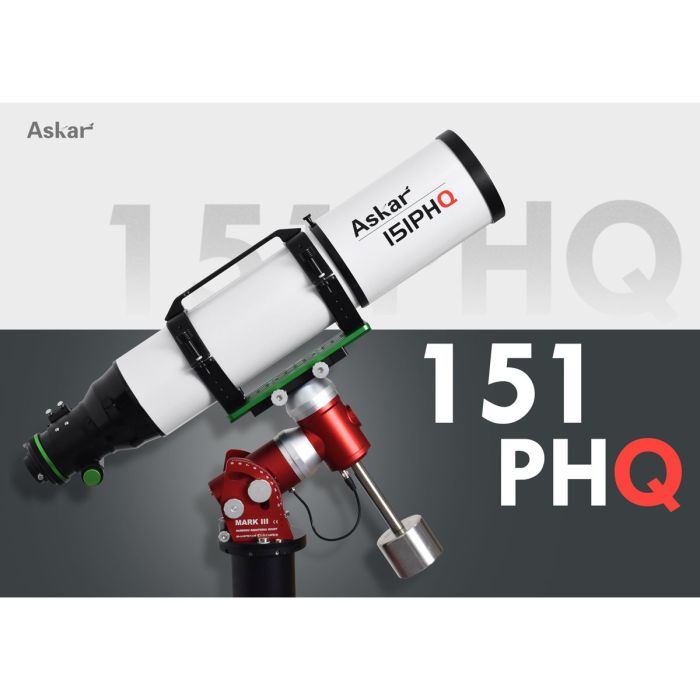

Askar 151PHQ 151mm f/7 Quadruplet Flat Field Refractor
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Askar 151PHQ Review Part I: Unboxing & First Impressions
Agena Astro affiliate Julien Lecomte recently shared this unboxing and first impressions review video:
Askar 151PHQ Review Part II: Optical Test
In the second part of his review, Julien finds that the 151PHQ has an impressive Strehl ratio of 0.97 and almost no chromatic aberration:
Askar 151PHQ Overview
The Askar 151PHQ is a quadruplet astrograph refractor and is the largest member of the PHQ line from Askar. Featuring a 151mm (6") aperture and a 1057mm focal length for an f/7 focal ratio, the 151PHQ is designed to produce stunning flat field images of deep sky objects. With a staggering claimed 60mm image circle, the 151PHQ can handle sensors larger than full frame into medium format territory. See this image courtesy of Askar's website showcasing round stars to the edges on full frame (click the high resolution link below the image to see more):
Image by Mr. ZhuLiQun | Rosette Nebula | ASKAR 151PHQ + ZWO ASI6200 | SHO 3.5hrs | High resolution
Quadruplet Design
The Askar 151PHQ is a quadruplet design, meaning it features a built in field flattener. This saves you money, and also means your scope is equipped for imaging right out of the box. It also means you don't need to worry about precisely calculating back focus unless you're using the Askar 0.7x Reducer (sold separately), in which case you'll need to be at a standard 55mm.
If using it without the additional reducer, you'll have up to 78mm from the base of the rear threads to attach accessories. That means you can easily attach an OAG, filter wheel / drawer, camera, and a rotator for a fully remote-capable setup. The 151PHQ can also be used visually too, so you can take advantage of this truly versatile instrument.
You Decide: f/7 or f/4.9
Using the Askar 0.7x Reducer (sold separately), you can reduce the stock 1057mm f/7 system down to a speedy 740mm f/4.9. This is over a full stop difference, meaning you can gather the same amount of light at f/4.9 in less than half the time than you can at f/7.
Everything You Need for Imaging Out of the Box
No matter what size image train you're working with, the Askar 151PHQ comes with everything you need to get started out of the box. This includes interchangeable M68, M54, and M48 photographic adapters, a finder base for adding a guide scope or other accessories, and a telescoping dew shield. If you don't happen to have a filter drawer or filter wheel, the M48 adapter features a built-in filter drawer for adding your favorite 2" filters.
The 151PHQ also comes standard with a large 3.4" rack & pinion focuser, a 360º rotator, and a multifunctional carry handle with a central slot for attaching accessories with an M6 thread size. This slot may also accommodate 1/4"-20 accessories, which we will confirm at a later date. It also comes with a sturdy 300mm Losmandy D-style dovetail plate and tube rings. All of this comes housed in a sturdy aluminum case for safe transport.
Askar 151PHQ Complete Specifications
- Aperture size: 151mm
- Focal length: 1057mm
- Focal ratio: f/7
- Objective lens: Quadruplet air-spaced APO (including two ED glass)
- Image circle: 60mm
- Maximum accessory connection (with the focuser fully retreated):
- Imaging mode: 78mm (from the base of M48x0.75 male thread)
- Observing mode: 119mm (from the end of1.25" eyepiece holder)
- Total length:
- Observing mode:
- 930.3mm (with the dew shield contracted)
- 1117.8mm (with the dew shield fully extended)
- Imaging mode:
- 976.8mm (with the dew shield contracted)
- 1164.3mm (with the dew shield fully extended)
- Observing mode:
- Dew shield OD: 185mm / 7.28"
- OTA Weight: 24 lbs (11 kg)
- Total Weight (including tube ring & dovetail plate): 28 lbs (13 kg)
- Rear-end thread type:
- M86x1-M68x1
- M68x1-M54x0.75
- M54x0.75-M54x0.75
- M54x0.75-M48x0.75 (built-in M48X0.75 filter drawer)
- Four-piece photographic end adapter: M48X0.75
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Telescope Focal Length | 1001 - 1250mm |
| Hide Found a better Shipped Price on Frontend? | No |
- 151PHQ OTA
- Pair of tube rings
- Handle
- Askar Losmandy 300mm dovetail plate
- Set of 4-piece photographic adapters
- Aluminum case
- Manual
