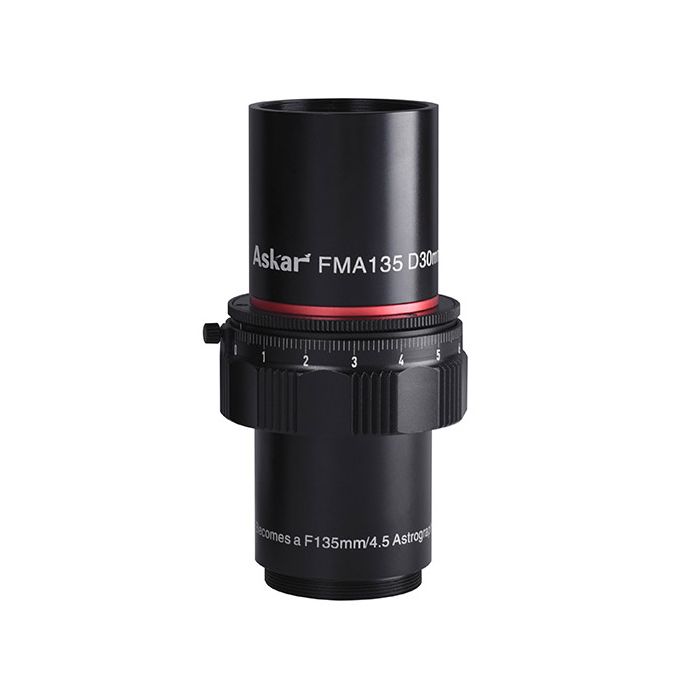

Askar FMA135 30mm f/4.5 Triplet Apo Lens / Guidescope
Availability: Please contact us for an update
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- ASKAR FMA135 30mm aperture apochromatic telescope/camera lens features three-element objective lens with ED element for superb color correction and image quality
- Include three-element field flattener to deliver pinpoint stars across APS-C or smaller sensors
- Operates as a manual-focus f/4.5 apochromatic camera lens for astrophotography or as a guide/finder scope
- Includes adapter for visual observation with a 1.25” eyepiece, tube mounting ring, and Vixen-style dovetail
The ASKAR FMA135 is a premium optical instrument that features a 30mm ED fully multicoated triplet objective to deliver superb image quality for astronomical and terrestrial imaging. It also works as a finder/small telescope/guide scope.
The heart of the FMA135 is an air-spaced 30mm apochromatic f/4.5 triplet with an ED element to minimize chromatic aberration. With a focal length of 135mm, the objective lens is optimized and tested for demanding astronomical applications, and it is carefully matched to an integrated three-element field flattener that yields flat fields and sharp images.
For the price, this fast apochromatic lens offers excellent value and can approach the performance of telescopes that cost three or four times as much. This is especially true when matched with astronomy cameras with smaller 1" and 4/3" sensors. Cameras with larger APS-C sensors may reveal slight aberrations at the edge of the field, especially when using the focal reducer. This lens is not recommended for use with full-frame cameras.
The camera side of the FMA135 includes a standard M42x0.75 male thread for attachment to most astronomy cameras or T-rings. The instrument has a 55mm back focus. The top tube ring, which acts as a light/dew shield, includes standard M28.5x0.6 female threads that accept 1.25” astronomical filters. The body of the FMA135 includes a rotatable focuser to ensure precise and repeatable focus.
For straight-through observing with an eyepiece, there’s a standard 1.25” adapter that threads onto FMA optical tube. The FMA135 also includes a mounting ring with standard Vixen-style dovetail.
The overall tube length is 113mm. The FMA135 weighs just 280g (0.62 lbs).
Specifications:
- Aperture: 30mm
- Focal Length: 135mm
- Focal Ratio: f/4.5
- Objective Type: Air-spaced APO Triplet (including an ED Glass). Sextuplet Refractor for APS Imaging
- Overall Length: 113mm (photographic mode with flattener)
- Weight: 280g
- Dewshield front thread: M36x0.75 female
- Rear-end Adapter Type:
- M42 x 0.75 Thread (for imaging)
- 1.25" Visual Adapter (for visual use)
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Telescope Focal Length | Up to 300mm |
| Hide Found a better Shipped Price on Frontend? | No |
- FMA135
- Tube Ring (One Piece)
- 1.25" Visual Adapter
- Screw (Five Pieces)
- Manual
