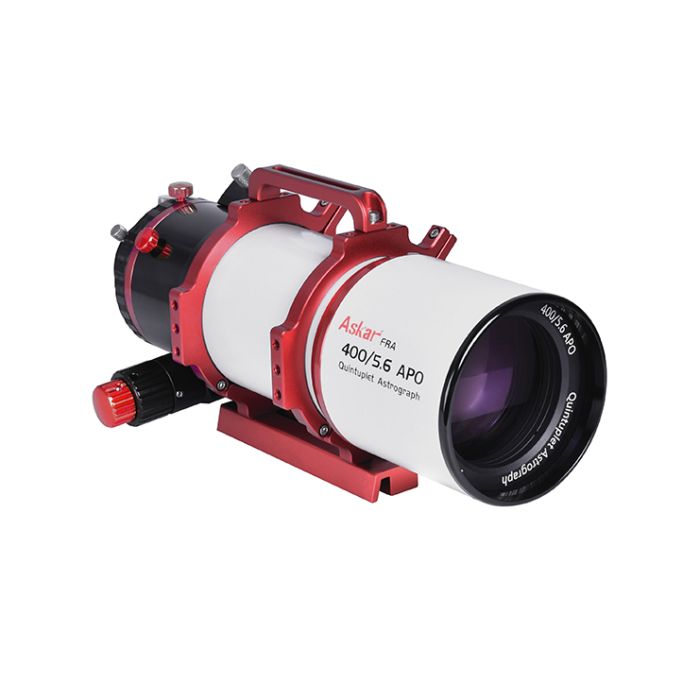

Askar FRA400 72mm f/5.6 Quintuplet Petzval Flat-Field Astrograph
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- ASKAR FRA400 Quintuplet refractor with 72mm aperture and f/5.6 focal ratio, ideal for wide-field imaging of the deep sky
- Petzval design ensures flat field across 44mm image circle, while two ED elements virtually eliminate chromatic aberration
- Rotatable 3” rack-and-pinion focuser, M68-M48 adapter, 2” adapter ring, and 1.25”-2” adapter
- Includes mounting rings, Vixen-style dovetail, and carrying handle
The ASKAR FRA400 “Flatfield Refractive Astrograph” incorporates a five-element design to deliver flat fields and sharp, color-free images from edge-to-edge. With a 72mm objective, two ED elements, and Petzval optical layout, this f/5.6 scope has a focal length of 400mm and it’s ideal for capturing stunning wide-field images of the deep sky over a 44mm full-frame image circle. It works great for visual observing also (star diagonal not included).
This premium astrograph includes a large 3” rack-and-pinion dual-speed focuser that’s fully rotatable through 360 degrees. The focuser tube terminates with an M68x1 thread for direct camera attachment, and it comes with an M68-M48 adapter for smaller camera. It also includes a 2” adapter ring and 1.25”-2” adapter for use with diagonals, eyepieces, or smaller cameras.
The attractive optical tube of the FRA400 is complemented with a highly functional set of aluminum rings, Vixen-style dovetail, and a carrying handle. The rings include separate mounting holes for additional accessories. The entire tube is just 317mm long and weighs 2.6kg.
While the fast f/5.6 focal ratio is ideal for deep-sky imaging, ASKAR also makes an optional FRA72RD focal reducer (not included) for the FRA400 scope to bring the focal ratio to f/3.9 while still supporting full-frame imaging.
For the price, this fast apochromatic telescope offers excellent value and can approach the performance of telescopes that cost three or four times as much. This is especially true when matched with astronomy cameras with smaller 1" and 4/3" sensors. Cameras with larger APS-C and full-frame sensors may reveal slight aberrations at the edge of the field, especially when using the focal reducer.
Specifications:
- Aperture: 72mm / 2.83in
- Focal Length: 400mm
- Focus Ratio: f/5.6
- Objective Type: Quintuplet Dual ED Air-Spaced APO
- Overall length: 317mm
- Dew shield OD: 101mm / 3.97"
- OTA Weight (without rings/dovetail/handle): 2.65kg (5lb-14oz)
- OTA Weight (with rings/dovetail/handle): 3.25kg (7lb-2oz)
- Back-end Adapter: M68x1 Male Thread, 2" Adapter/1.25" Adapter
- Back focus: 140mm
- Accessories:
- Pair of Tube Rings
- Handle
- Dovetail Plate (length 150mm)
- M68-M48 adapter, 2” adapter, 1.25”-2” adapter
- Inspection List
- Manual
