Askar ZWO EAF Autofocusing Kit for ACL200 Lens
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
As electronically-assisted astronomy becomes more and more popular, many an electronic or computer-commanded device is widely applied in both sky observation and astrophotography. For the purpose of better catering to our customers’ practical needs, we again upgrade the ACL200 lens, introducing the ACL200 AF kit (AF refers to automatic focusing) to the market. ACL200 AF kit enables users to operate the lens together with ZWO’s EAF (electronic automatic focuser) to realize auto and more accurate focusing.

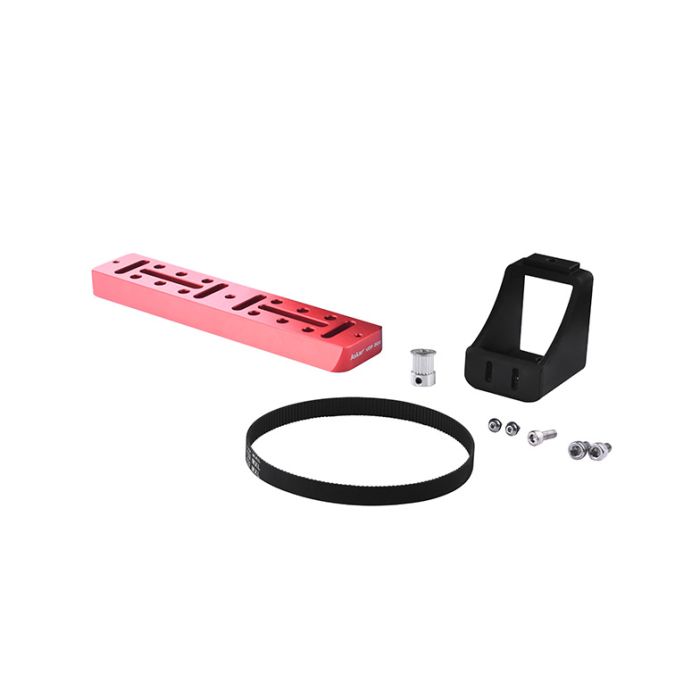

Components ACL200 AF kit contains several parts:
- A black square holder, used to accommodate and support the EAF (made of machined aluminum)
- A 20-teeth synchronous pulley
- A synchronous belt
- An Askar Vixen-style dovetail plate
- An M5×10 socket head cap screw
- Two M4×10 socket head cap screws
- Two M6×8 socket head cap screws
- Two M4×10 button head screws
- *NOTE: the ACL200 lens and ZWO’s EAF appearing in the advertising videos or posters are not included in this kit, they are for demonstration only.
Assembly
- First, take the original black dovetail plate off the ACL200 lens. There are one bigger and two smaller screw holes tapped on one side of the EAF holder, corresponding to the three screw holes at the bottom of the ACL200 lens collar.
- Connect the ACL200 lens and EAF holder with an M5×10 socket head cap screw and two M4×10 socket head cap screws.
- Then, insert the synchronous pulley onto the shaft of EAF and put the EAF with pulley into the holder. Wrap the synchronous belt around ACL200 lens and the pulley.
- Adjust and secure the EAF and its holder, then insert two M4×10 button-head screws into the slots carved out on the side of the holder, tighten them with a wrench.
- Put the ACL200 lens on the Askar Vixen-style dovetail plate, connect them with two M6×8 socket head cap screws.
Application
First, you must connect EAF and ASIAIR which functions as a compact computer, with WiFi. Power both EAF and ASIAIR. Then you can control the EAF via a dedicated app installed on your iPad or smartphone by simply inputting the numbers.
