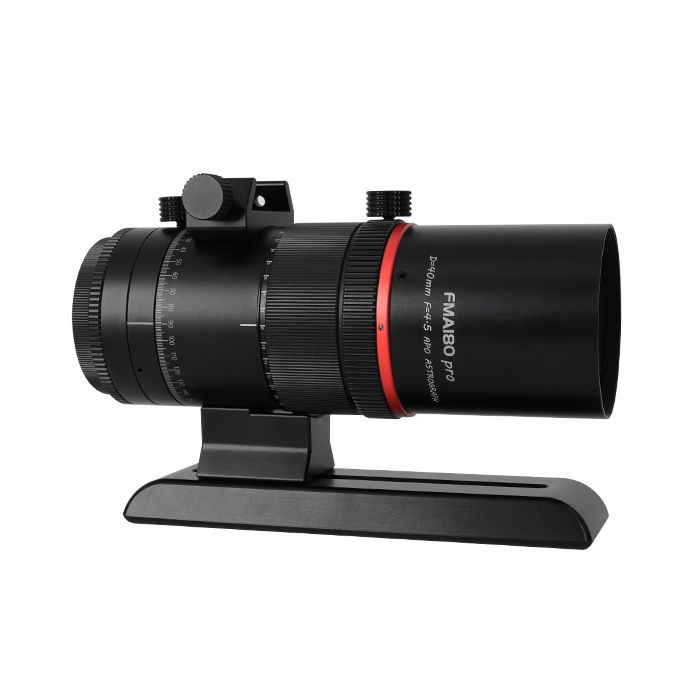

Askar FMA180Pro 40mm f/4.5 Sextuplet Apo Lens / Astrograph
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- ASKAR FMA180Pro 40mm aperture apochromatic telescope/camera lens
- Uses three-element objective lens with two ED elements for superb color correction and image quality
- Also includes built-in three-element focal reducer, thus resulting in a final focal length of 180mm at f/4.5 for wide-field astronomical imaging
- Includes Vixen-style telescope dovetail rail and Vixen-style finder/accessory dovetail base
Askar FMA180Pro Demo Video
Askar FMA180Pro Upgrades vs. Original FMA180
- All new marked 360º rotator
- New one-piece internal focus system
- New finder base for attaching accessories like the ASIAIR
- Improved longer Vixen-style dovetail
- Upgraded metal knurled thumbscrews
- Larger M48x0.75 rear threads
- New filter thread adapter allowing 2" filters to be inserted
Askar FMA180Pro Full Details
The ASKAR FMA180 Pro is a premium multi-functional optical instrument for serious wide-field astronomical or terrestrial imaging. It is a six-element 40mm f/4.5 fully-multicoated apochromatic astrograph/camera lens with superb image quality.
The heart of the FMA180 Pro is an air-spaced 40mm apochromatic f/5.5 triplet with two ED elements to minimize chromatic aberration. The objective is carefully matched to the included three-element focal reducer (note: this cannot be removed) that transforms the overall focal ratio to f/4.5 and a focal length of 180mm.
The FMA180 Pro is similar to the FMA180 in optical design, although optically superior. This new FMA180 Pro adds a Vixen-style finder base and a 360° rotator, neither of which were present in the original FMA180. What's more, the focuser is designed as internal focusing which promotes its stability and ensures its performance in use as a high-quality, compact astrograph.
On the flip side, however, the FMA180 Pro can only operate at f/4.5 (unlike the FMA180 which could operate at f/5.5 without the reducer). The FMA180 Pro is also not as versatile as the original FMA180 in terms of varying its tube length and is significantly heavier. It also does not include a 1.25" eyepiece holder so its use as a visual astronomy finder or telescope is limited, (although still possible without a diagonal if you add suitable spacers and a visual back).
For the price, this fast apochromatic lens offers excellent value and can approach the performance of telescopes that cost three or four times as much. This is especially true when matched with astronomy cameras with smaller 1" and 4/3" sensors. Cameras with larger APS-C and full-frame sensors may reveal slight aberrations at the edge of the field, especially when using the focal reducer.
The FMA180 Pro optical tube assembly terminates in an M48x0.75 male thread for mating with a camera. The back focus is a standard 55mm, meaning it is compatible with most cooled astronomy cameras out of the box with their included spacers. You will need an M48 T ring (not included) to couple your specific mirrorless or DSLR camera to the FMA180 Pro. Using this as a guidescope will also require additional adapters (not included) to meet the 55mm back focus requirement from the rear M48 thread.
The OTA features an internal M48x0.75 female thread at the rear end for standard 2" astronomy filters.
The optical tube includes a short stalk and a 150mm long Vixen-style telescope mounting rail so that you can mount it directly on compatible mounts or atop another scope. These can be completely removed from the scope when it’s used with a DSLR for handheld shooting or when the camera itself is mounted to a tripod.
The overall tube length is 167.5mm. The FMA180 weighs 1.76 lbs (800g).
ASKAR FMA180Pro Specifications:
- Aperture: 40mm
- Focal Length: 180mm
- Focus Ratio: f/4.5
- Objective Type:
- Triplet Dual ED Air-spaced APO (Objective lens)
- Sextuplet Refractor for full-frame astrophotography (with built-in reducer)
- Dew shield OD: 58mm / 2.28"
- Weight: 1.76 lbs (800g)
- Back-end Thread: M48x0.75 male
- Back focus: 55mm from the base of the rear M48 male thread
- Image circle size: 44mm
- Dewshield Front Thread: M56x0.75 female
- In the box:
- FMA180 Pro Body
- Vixen-style dovetail rail
- Vixen-style finder mounting base
- Manual
