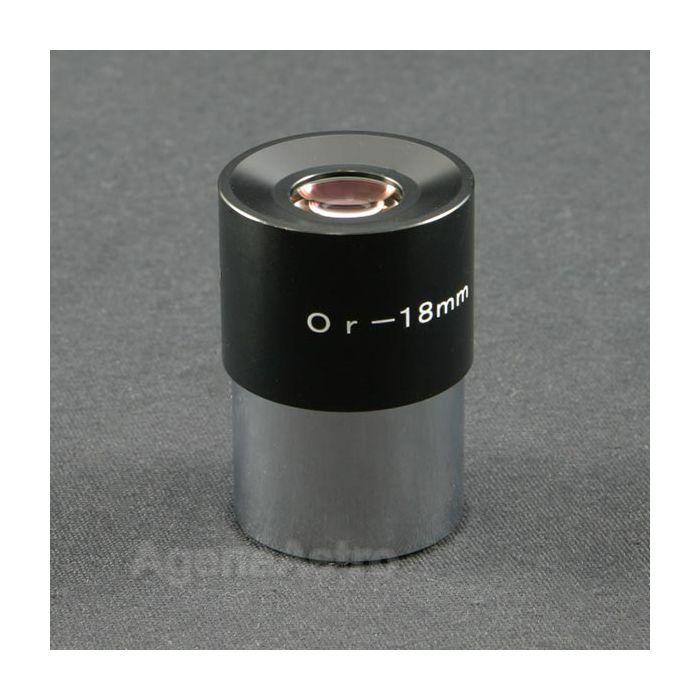

Astro Hutech 1.25" Abbe Orthoscopic Eyepiece (Japan) - 18mm
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Astro Hutech has resurrected the famed orthoscopic eyepiece series that was sold under the label of Kasai Trading Company of Japan for many years. These eyepieces are based on the classic Abbe Orthoscopic (3 + 1 element) design. The true Abbe Orthoscopic has long been recognized for its ability to deliver the highest resolution, contrast and light throughput of any modern eyepiece design.
The three cemented elements are hand-aligned by Japanese craftsmen. All components of this eyepiece, including all glass and other materials, are manufactured and assembled fully in Japan.
Fully multicoated lenses provide clean, high-contrast images suitable for optimum planetary and lunar viewing. On-axis images are essentially perfect and the orthoscopic design ensures freedom from distortion. Contrast and throughput are maximized by its minimum of lens elements, coatings, and only 4 air-to-glass surfaces.
Features:
- Fully multi-coated optics
- 42 degree apparent field of view.
- Eye relief: ~80% of focal length
- Smooth-sided 1.25" eyepiece barrels
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | Abbe Orthoscopic |
| Focal Length | 18mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 42° |
| Eye Relief (Designed) | 14.4mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Multi-Coated |
| Lens Elements | 4 |
| Lens Groups | 2 |
| Blackened Lens Edges | Yes |
| Barrel Type | Smooth sided |
| Protective Plastic Storage Container | Discontinued Item |
| Protective Plastic Storage Container Size | Agena 37x60mm |
| Optical Design | Abbe Orthoscopic |
| Height (Without Eyeguard) | 2.03" (51.5mm) |
| Maximum Width | 1.34" (34.0mm) |
| End Caps | 2 |
| Eye Lens Diameter | 0.59" (15.0mm) |
| Rubber Eye Guard | No |
| Weight | 3.1 oz (88g) |
| Country of Manufacture | Japan |
| Hide Found a better Shipped Price on Frontend? | No |
