Astrodymium Rotating Tilt Adjusters for Select Threads
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Please note that this is a 3d printed plastic part.
These Astrodymium rotating tilt adjusters compensate for tilt in your imaging train when using any threaded adapter or extension tube. The adapter only needs to be partially unthreaded to allow the tilter to rotate to the area that needs to be compensated for.
The M42 size in particular is designed for use with ZWO's EOS/Nikon adapters, but it will also work with any M42 male thread.
Note:
- Each tilt adjuster adds 0.40mm ± 0.02mm of backfocus.

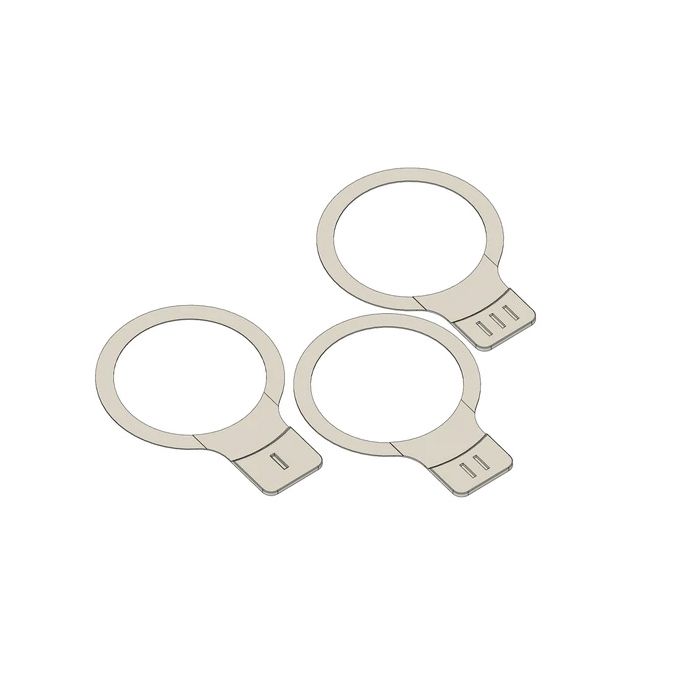

Each set comes with 3 levels of adjustment: 0.1, 0.2, and 0.3mm, and the corresponding amount is debossed onto the adjuster itself with roman numerals.
- I = 0.1mm
- II = 0.2mm
- III = 0.3mm
How does it work?
A raised section on each adjuster acts as a shim, which pushes one side of a threaded adapter higher than the other, this is the mechanism that creates the tilt effect.
The maximum amount of compensation that can be produced is dependent on the tolerance of the threads (how much slop they have).
For example, ZWO's extension tubes (16.5 & 21mm) have been tested to produce a maximum of 0.20mm worth of tilt.
This item is made out of UV resistant PETG plastic and can handle a temperature of up to 70°C (158°F) without deformation.
