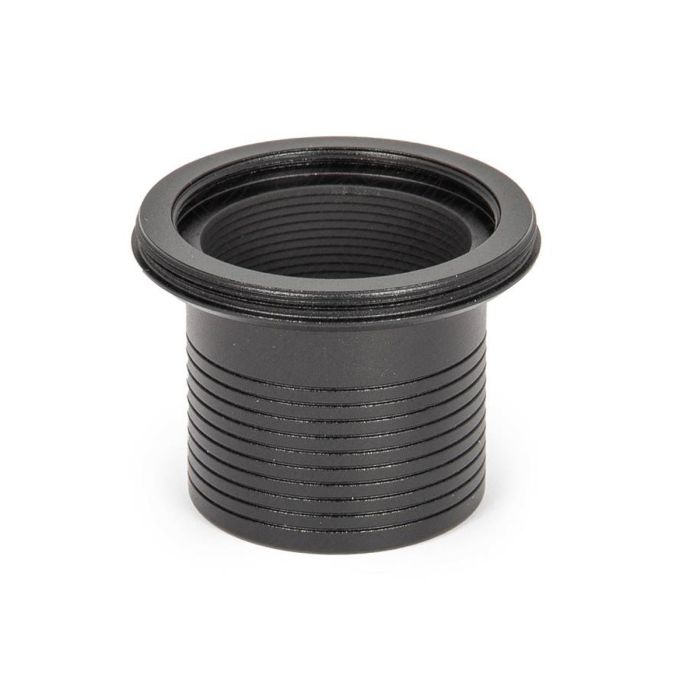

Baader 1.25" Nosepiece with Safety Kerfs and T2 Male Threads
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Nosepiece with 28mm insertion length, with Baader proprietory Safety Kerfs
- With only 3mm long T-2 thread for modern CMOS cameras
- Eyepiece side with T-2 male thread, telescope side with 1¼" outer diameter
- Includes filter thread M28.5 for all 1¼" filters
- Optical path length: 1.5mm
Modern cameras are usually characterized by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3mm standard.
Specifications:
- Optical length: 1.5mm
- Inner Diameter / Clear Aperture: 28mm
- Outer Diameter: 43mm
- Inner Connection (lens sided): Thread
- Outer Connection (lens sided): Barrel, 1¼"
- Inner Connection (eyepiece/-camera-sided): Thread
- Outer Connection (eyepiece/-camera-sided): Thread, T-2 (M42 x 0.75)
- Compatible Brands: Astro T-2, Baader Planetarium, Celestron
- Type of Adapter: Barrel, Expanding piece, Filter holder
Please note: This item comes with one lower 1.25" plastic end cap. Contrary to what is misprinted on the item box, no cover is included for the T-threaded end.
Manufacturer part number: 2458106 or T2-14A
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- Nosepiece with 28mm insertion length, with Baader proprietory Safety Kerfs
- With only 3mm long T-2 thread for modern CMOS cameras
- Eyepiece side with T-2 male thread, telescope side with 1¼" outer diameter
- Includes filter thread M28.5 for all 1¼" filters
- Optical path length: 1.5mm
Modern cameras are usually characterized by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3mm standard.
Specifications:
- Optical length: 1.5mm
- Inner Diameter / Clear Aperture: 28mm
- Outer Diameter: 43mm
- Inner Connection (lens sided): Thread
- Outer Connection (lens sided): Barrel, 1¼"
- Inner Connection (eyepiece/-camera-sided): Thread
- Outer Connection (eyepiece/-camera-sided): Thread, T-2 (M42 x 0.75)
- Compatible Brands: Astro T-2, Baader Planetarium, Celestron
- Type of Adapter: Barrel, Expanding piece, Filter holder
Please note: This item comes with one lower 1.25" plastic end cap. Contrary to what is misprinted on the item box, no cover is included for the T-threaded end.
Manufacturer part number: 2458106 or T2-14A
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Baader 1.25" Nosepiece with Safety Kerfs and T2 Male Threads # T2-14A 2458106
