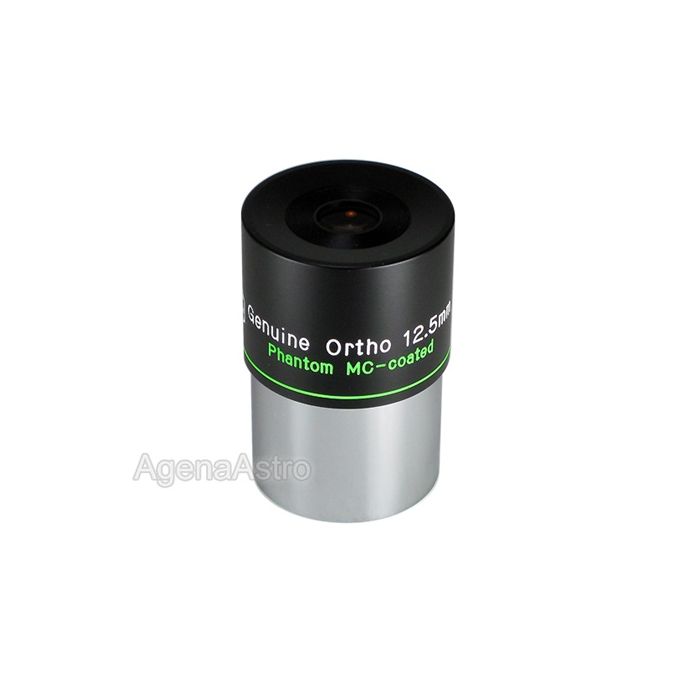

Baader 1.25" Genuine Orthoscopic Eyepiece - 12.5mm
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The true Abbe Orthoscopic has long been recognized for its ability to deliver the highest resolution, contrast and light throughput of any modern eyepiece design. On-axis images are essentially perfect and the orthoscopic design ensures freedom from distortion. Contrast and throughput are maximized by its minimum of lens elements and only 4 air-to-glass surfaces.
The pinnacle of planetary eyepieces, the Zeiss Abbe Orthoscopic, are still regarded as the finest eyepieces ever produced, and are the standard against which all other premium eyepieces are compared. Unfortunately, these eyepieces are no longer produced, and command prices of up to $800 apiece on the secondary market. Through their many years of eyepiece design and production, combined with their close associations with Zeiss, Baader Planetarium has acquired a unique in-depth knowledge of eyepiece design and fabrication. Baader set out to deliver an eyepiece that is worthy of comparison to the Zeiss Abbe, while still remaining affordable for the amateur. The result is the Baader Genuine Orthoscopic.
Features:
• Phantom Multi-Coatings. Absolutely the finest Broadband Multilayer Coatings available have been applied to all surfaces. Reflectivity of less than 0.2% at each air-to-glass surface results in maximum contrast, light throughput, and freedom from ghost images.
• Superb Lens Polish. Baader Genuine Orthoscopics are polished to a high standard, for maximum clarity and contrast. A surprising number of premium commercial eyepieces suffer from roughness, excessive pits, or sleeks left in the lens surfaces. These tiny defects can hamper short focal length planetary eyepieces, where even the smallest imperfections scatter light and reduce contrast.
• High quality glasses for maximum transmission and purest colors with no yellowing or selective coloration.
• 40 degree apparent field of view.
• Parfocal (slight refocusing may be needed).
• Superb Mechanical Quality. Proper Internal Baffling and Blackened Lens Edges for elimination of stray light reflections. Chrome Plated barrels are threaded for standard1.25" filters.
Baader Genuine Orthoscopics are the ideal choice for any critical observing that demands the highest contrast, resolution and light throughput. Naturally, observation of fine planetary detail benefits from the qualities of the Genuine Orthoscopic. Lunar and Solar H-Alpha and White-Light observers will find the low scatter indispensable in preventing the intense brightness from from washing out subtle surface or limb details. Deep Sky observers will appreciate the contrast and high light throughput for observing faint nebula, double stars, galaxies, and stars at the limit of their equipment and skies.
In his detailed comparison between Zeiss "Abbe", Pentax SMC-Orthos, and Baader Genuine Orthoscopics, noted German amateur Dr. Michael Lalk (Ernst-Moritz-Arndt-University) had the following to say:
"My result: Baader -Planetarium has succeeded with the Genuine Orthos. They represent a worthy execution of the orthoscopic eyepiece, in my opinion, and make it possible for those who do not possess the Zeiss Abbes to own an equal alternative at a fraction of the price. No exotic glasses are used here, surely, as Zeiss. But, my observations show that it is actually not possible to differentiate, in use, between a Zeiss "Abbe", a Pentax SMC-Ortho, or a Baader Genuine Ortho"
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | Genuine Orthoscopic |
| Focal Length | 12.5mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 40° |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Broadband Multi-Coated |
| Blackened Lens Edges | Yes |
| Barrel Type | Smooth sided |
| Protective Plastic Storage Container | Discontinued Item |
| Protective Plastic Storage Container Size | Agena 37x60mm |
| Optical Design | Orthoscopic |
| End Caps | 2 |
| Parfocal | Yes |
| Rubber Eye Guard | No |
| Hide Found a better Shipped Price on Frontend? | No |
