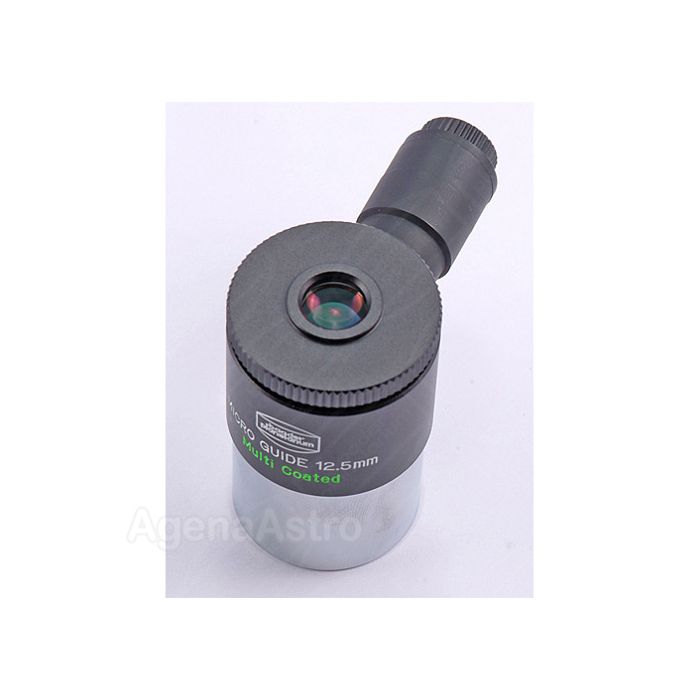

Baader 1.25" Micro Guide Eyepiece - 12.5mm
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Baader Planetarium's Micro Guide eyepiece is a very versatile accessory that can be used for a variety of measurements and applications. This 1.25" 12.5mm Abbe Orthoscopic eyepiece features a fine laser-etched illuminated reticle for measurements. With four separate scales on one reticle, you can guide deep-sky astrophotos, measure the angular separation of double stars, determine the periodic error of your drive system, or measure the position angle (PA) of a comet's tail.
The reticle lines are sharp for the best possible definition. And the variable brightness illuminator makes it easy to use even on faint stars. The lenses feature multi-layer (MC) multicoating on each glass-air surface. The eyepiece is thus completely free of reflections, and the measurement field scaling is clearly visible even with long eye relief (eyeglass wearers) which is essential for correctly tracked long exposures. Built-in diopter correction allows you to focus the reticle sharply for your eye.
Examples of the applications of this eyepiece include:
- Accurate direct or indirect tracking of objects
- Easy use of guide stars in off-axis guiders without the need to center the guide star in the eyepiece
- Measuring position angles and separation of double stars
- Precise size measurements of Lunar features
- Measuring the exact focal length of a telescope (with a tolerance of approximately 0.3%)
The glass reticle plate has guiding rings for astro photography, a 360° scale for measuring double star position angles, and a linear scale for measuring distances. The included manual provides detailed explanations of the applications and supporting mathematical formulas with examples.
Manufacturer part number: MGUIDE or 2404300
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Focal Length | 12.5mm |
| Barrel Size | 1.25" (31.7mm) |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Multi-Coated |
| Barrel Type | Smooth sided |
| Protective Plastic Storage Container | No |
| Optical Design | Abbe Orthoscopic |
| Hide Found a better Shipped Price on Frontend? | No |
