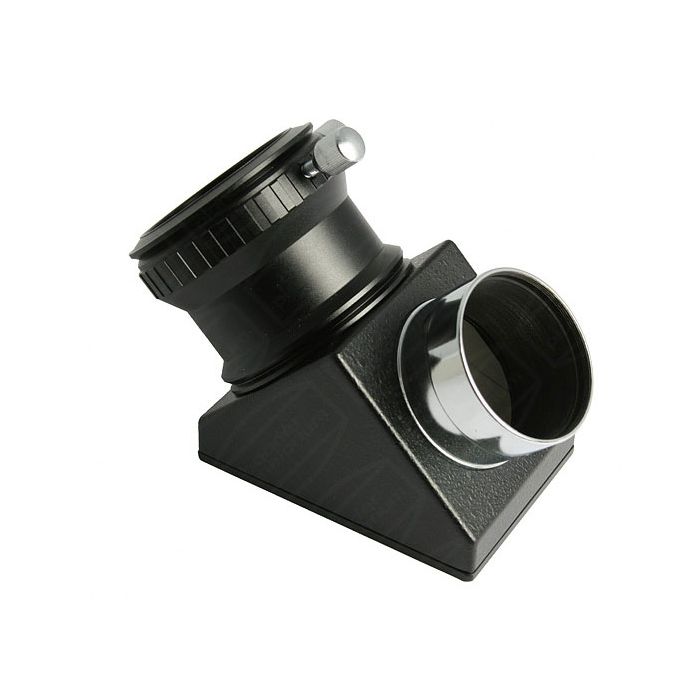

Baader 2" 90° Star Diagonal with Carl Zeiss Prism
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Baader Planetarium's 2" 90-deg prism diagonal features a premium quality Zeiss prism housed in a precision CNC machined Baader diagonal body. The Zeiss prism has acclaimed T-coatings for obtaining the highest image definition.
The 2" eyepiece holder features a brass compression ring and dual locking thumbscrews. 2" nosepiece is threaded to accept standard 2" astronomy filters (M48x0.75). Diagonal weight = 22.9oz.
On the eyepiece side, the 2" eyepiece holder can be unscrewed. This will expose an inverter ring with an SCT male thread (2" x 24TPI). Removal of this inverter ring then exposes an SCT female thread on the diagonal body. On the telescope side, the nosepiece can also be unscrewed, exposing SCT female threads on the housing. Hence, this diagonal can be closely coupled with an SCT telescope (using the optional SCT lockring) to provide the shortest physical connection for fork-mounted telescopes with limited base clearance. It can also be used with a variety of other Baader T-2 system components (sold separately) for various adaptations.
Baader part #: PRISM-2 or 2406010
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Baader Planetarium's 2" 90-deg prism diagonal features a premium quality Zeiss prism housed in a precision CNC machined Baader diagonal body. The Zeiss prism has acclaimed T-coatings for obtaining the highest image definition.
The 2" eyepiece holder features a brass compression ring and dual locking thumbscrews. 2" nosepiece is threaded to accept standard 2" astronomy filters (M48x0.75). Diagonal weight = 22.9oz.
On the eyepiece side, the 2" eyepiece holder can be unscrewed. This will expose an inverter ring with an SCT male thread (2" x 24TPI). Removal of this inverter ring then exposes an SCT female thread on the diagonal body. On the telescope side, the nosepiece can also be unscrewed, exposing SCT female threads on the housing. Hence, this diagonal can be closely coupled with an SCT telescope (using the optional SCT lockring) to provide the shortest physical connection for fork-mounted telescopes with limited base clearance. It can also be used with a variety of other Baader T-2 system components (sold separately) for various adaptations.
Baader part #: PRISM-2 or 2406010
