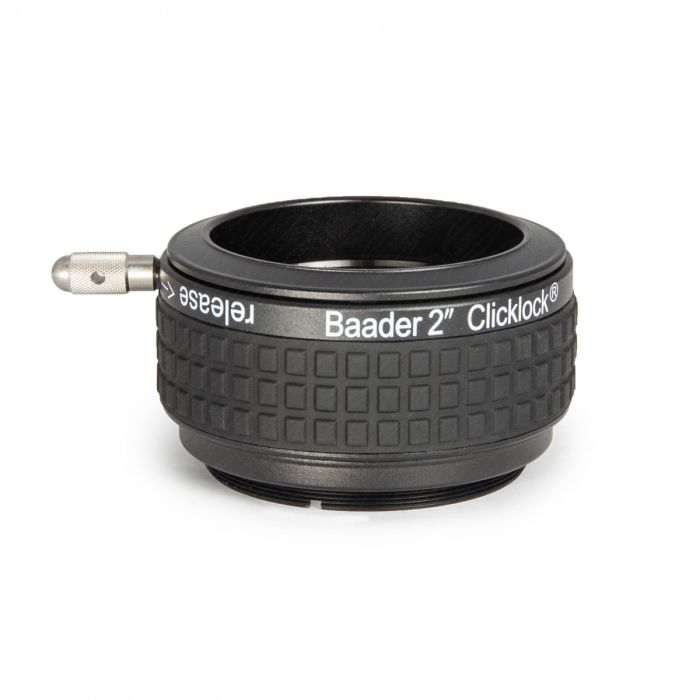

Baader 2" ClickLock Eyepiece Clamp with M54x0.75 Male Thread for Select Sky-Watcher/TS-...
Availability: No ETA available from the manufacturer at this time
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Baader 2" ClickLock M54x0.75 male thread clamp – for all focusers with M54x0.75 female thread (e.g. TS-Optics Photoline and some SkyWatcher Instruments Scopes. Note - most SW scopes use a slightly different M54x1 thread)
- Consists of M54x0.75 female thread ClickLock clamp (# 2956253) and M54x0.75 male threaded inverter ring (# 2458061)
- A small rotation by 20° with gentle fingertip pressure to the knurled lever is enough to securely clamp every 2" accessory. Optical height: 35 mm, Weight: 134g
- Ratchet function – features acoustic and haptic display of the clamp-position. This way you can hear and feel in darkness without looking if the clamp is opened or closed.
- Compression tension-ring of thick-walled hard bronze, keeps its shape even after many years of use and holds expensive accessories securely - without causing scratches or pressure points on your accessories.
- Manufacturer: Baader Planetarium
- Sku (#): 2956251
- Optical Length (mm): 35
- Clamping System: Clicklock
- Usage: Fast Clamping Of Every 2" Accessory
- Inner Diameter / Clear Aperture (mm): 50,8 (2")
- Outer Diameter: 68
- Weight (kg): 0.130
- Outer Connection (lens Sided): Thread, M54x0.75
- Inner Connection (eyepiece/camera-sided): Clamp, 2" (50.8mm)
- Compatible Brands: Baader Planetarium, Some Skywatcher, TS-Optics
- Type Of Adapter: Clicklock, Eyepiece Clamp
Baader 2" ClickLock Clamp with M54x0.75 Male Thread
This Baader ClickLock clamp has an M54x0.75 external (male) thread on the telescope side. It fits select Newtonian reflector telescopes made by Sky-Watcher or TS-Optics (Germany) with M54x0.75 internal (female) threads only.
Overview of Baader Clicklock Eyepiece Clamps
Available in 1.25” and 2” configurations, precision-made and rock-solid Baader ClickLock clamps secure your eyepieces, cameras, and observing accessories without the need for clamping screws. With a small 20° turn of the locking lever, your 1.25” or 2” component is securely held in place, locked against rotation, and will not be scratched or marred in any way. ClickLock clamps are easy to use, even when wearing gloves!
Baader ClickLock clamps are made of seven precision-machined components which provide a highly effective retention mechanism that securely holds any 1¼" or 2" eyepiece or accessory. The clamp is complex to assemble, so the price may appear high for "nothing more” than a clamping device. But if you think about the comfort, precision, stability, and ease of use, these clamps are well worth the investment.
ClickLock clamps are based on mechanical engineering principles similar to those used to design tool holders in modern CNC milling machines. The clever use of leverage multiplies torque in the holder, so you don’t need to pull hard on the locking lever to fully secure your eyepiece or accessory: it’s held on three sides similar to a quick-action chuck and remains secure and aligned.
The Baader 2" ClickLock Clamp System
Baader has tested the effectiveness and stability of the 1.25” ClickLock mechanism for many years. The 2" Baader ClickLock system is designed to be even more mechanically solid to hold larger eyepieces and accessories. The features and functions of this clamping system include:
- Secure and firm hold on each 2” component with a 20° turn with light pressure of the rotary lever
- Ratchet function to indicate the position of the clamp acoustically and haptically so you can tell in the dark, without looking, if the clamp is open or closed.
- Massive tension ring to keep even the most expensive accessories absolutely safe, without causing scratches or marring
- The position of the rotary lever is adjustable for left-hand / right-hand use either by six slotted screws or by six Allen screws (depending on the model)
- The heaviest load tested to date is a complete C14 optical tube with an SCL-clamp and a 2" ClickLock star diagonal with a Scopos 30mm extreme eyepiece. The entire C14 optical tube was lifted at the eyepiece (this was a test set-up and it is not recommended you try this yourself).
- The extensive range of ClickLock clamps makes it possible to retrofit many telescope models with the Baader 2" ClickLock clamp
