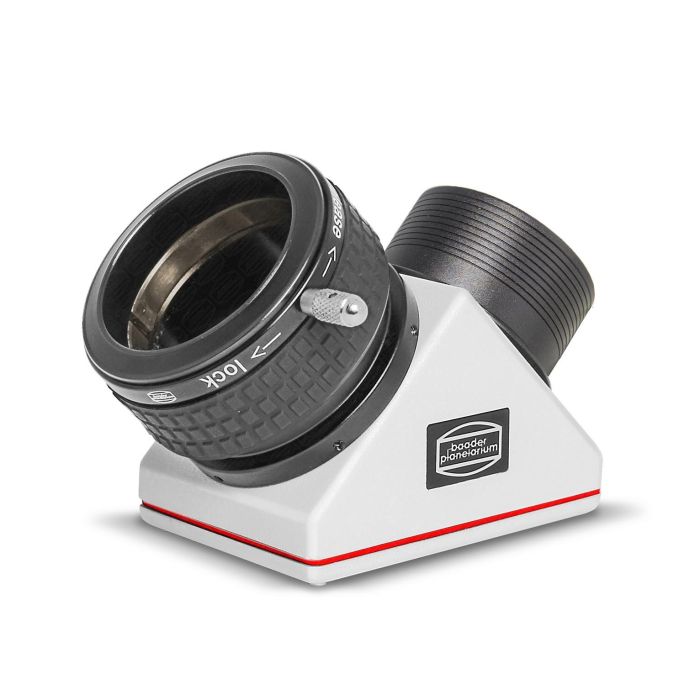

Baader 2" Clicklock Mirror Star Diagonal
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Proprietary coating process maintains the 1/10 wave mirror surface accuracy
- Easy to maintain hard and durable coating with 99% reflectivity
- Baader ClickLock clamp securely and precisely holds 2" eyepieces
- Can be threaded directly to Schmidt-Cassegrain scopes with optional Baader lock ring
- Full 46.6mm clear aperture
- Superb mechanical fit and finish
Proprietary Coating Process Maintains Surface Accuracy
With their ground-breaking introduction several years ago of the all-dielectric 2" Maxbright star diagonal, Baader Planetarium brought mirror star diagonals into the 21st century. The new 2" ClickLock Star Diagonal takes this innovation another step further. Like its predecessor, the 2" ClickLock Star Diagonal uses proprietary Baader all-dielectric mirror coatings. The Baader coating process eliminates the Achilles Heel that has plagued other all-dielectric mirror coatings - normally the multi-layer coating results in high surface stresses that cause a star diagonal's mirror to warp as much as 1/2 wave, ruining the figure and distorting the optical wavefront. Baader's proprietary coating process maintains the 1/10 wave mirror surface accuracy - after coating!
Baader's dielectric coatings deliver an amazingly high 99% photo-visual reflectivity along with an extremely hard durable surface. The ultra-hard mirror coatings will a last lifetime without losing reflectivity and may be cleaned with normal care, without fear of scratches. The precision mirror is also oversized, and combines with the large ID nosepiece to pass the largest image cone possible in a 2" format.
ClickLock 2" Eyepiece Holder
The 2" ClickLock non-marring eyepiece holder delivers the same acclaimed simplicity and security as its smaller 1.25" ClickLock cousin. With a quick 20 degree twist of the rubber knurled ring using a convenient fingertip lever, the ClickLock holder clamps 2" eyepieces so securely that you can lift your scope with them. The unique action utilizes 3-point clamping which positively and accurately locks 2" eyepieces without any of the wobbling and misalignment that can occur with single point clamps. With a clear aperture of 46.6mm, this mirror diagonal can handle all 2” eyepieces without vignetting.
The Baader 2" ClickLock Star Diagonal incorporates another unique feature. The 2" ClickLock Holder and 2" nosepiece can both be removed to expose 2"x24tpi SCT threads, permitting integration of the diagonal into additional configurations through the use of the Baader Astro T-2 System components.
NOTE: This diagonal gives images that are upright but left-right reversed.
The diagonal body weighs 20.6oz (584g) and the effective optical length is 112mm.
New manufacturer part number: CLDIAG-2 or 2956100 (Old part number MAX-2C).
Manufacturer part number: CLDIAG-2 or 2956100.
