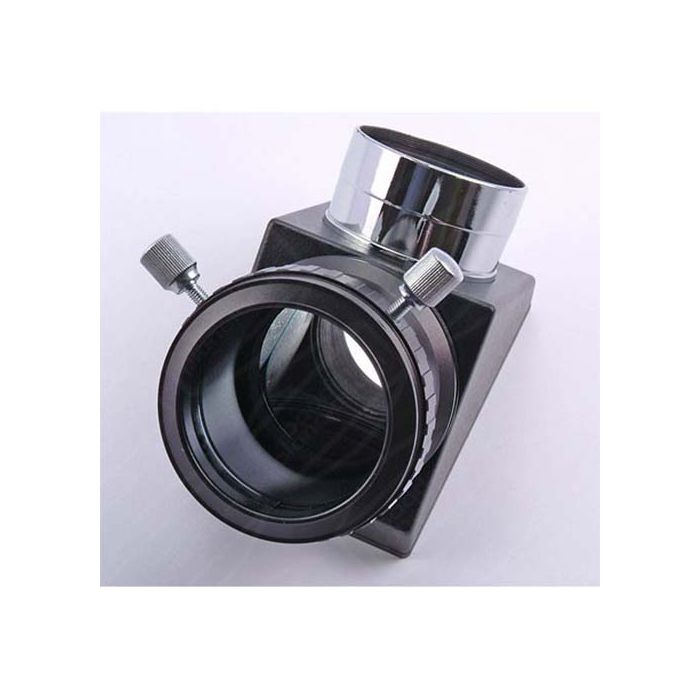

Baader 2" Maxbright Dielectric Mirror Diagonal
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Complete refractor-type diagonal with 2" nosepiece and 2" eyepiece holder
- Zero expansion, sitall glass ceramic mirror with 140 coating layers
- 1/10 wave flatness
- Modular housing allows you to change adapters for different applications
- Optical path length (added back-focus) = 68mm
- Weight = 1lb-4.1oz. (570g)
This diagonal includes a removable 2" eyepiece holder with compression ring and two large thumbscrews, as well as a removeable 2" nosepiece that is threaded to accept standard 2" astronomy filters. The diagonal body has standard female SCT threads (2" x 24TPI) on both sides. On the telescope side, the body connects directly to the included 2" nosepiece (Baader item # T2-19 2408155 (silver)). On the eyepiece side, an SCT male-male thread adapter (inverter) sits between the diagonal body and the included 2" SCT visual back / eyepiece holder (Baader # T2-17 2408140).
To use with an SCT telescope, you can:
(i) Replace the included 2" nosepiece with a suitable SCT female to male thread adapter (not included). This is the most convenient option.
(ii) Or you can remove the included 2" nosepiece and attach the diagonal body directly to the OTA's 2" male SCT thread (Baader's SCT Lock Ring # LRING 2458270 will be required to achieve the correct diagonal orientation). This configuration provides the shortest physical length if fork clearance is an issue.
The 2" eyepiece holder can be replaced with Baader's excellent click-lock eyepiece holder (not included) as well.
Baader part numbers: 2406210 and MAX-2
