Baader 2" Mark III MPCC Multi Purpose Coma Corrector - Photographic Version
Availability: No ETA available from the manufacturer at this time
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Please Note: This "photographic" version is the same item that Baader has been selling for a few years. The term "photographic" has been added here to distinguish this from their new "MPCC Visual and Photographic package" (sold separately) which includes several additional adapters for visual applications. The MPCC here can be used for imaging or visual applications as before and as detailed below - it's just that the additional adapters recommended for visual use are not included with this item.

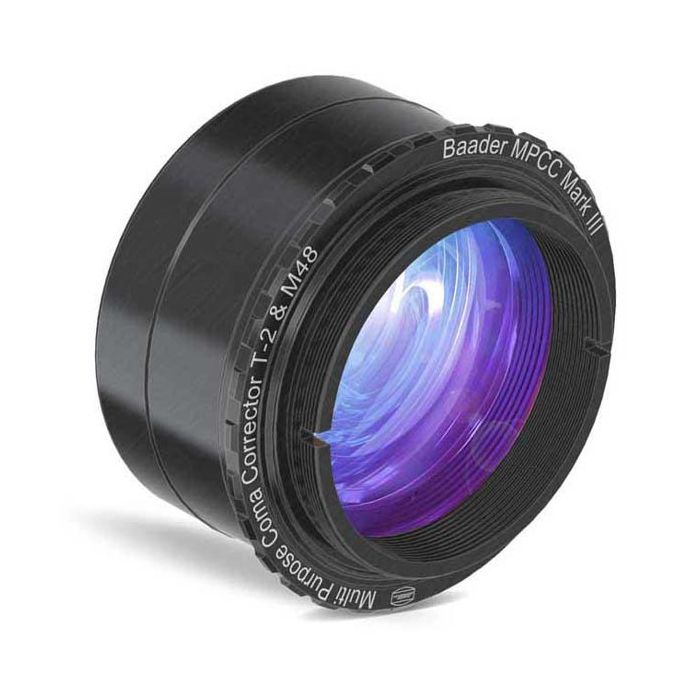

The Baader Planetarium MPCC MkIII enables owners of fast Newtonian telescopes to use their instrument for taking stunning wide-field images, or visually, for delivering wide-field views with stars that remain pinpoint to the edge - with no magnification increase!
The MPCC has been optimized for Newtonians with focal ratios from f/3.5 to f/6, and will deliver 12 micron stars across a full 35mm frame size. Independent optical laboratory tests (by ITE) have confirmed that the MPCC is the sharpest wide-field coma corrector available for imaging, and provides the best edge of field illumination. Visual users have reported great results even down to f/3.5. The optics are anti-reflection coated with Baader's Phantom Group Multicoatings. The MPCC is also priced very reasonably. Its modularity lets you purchase only the parts you need. For imaging with DSLRs, only the MPCC is required (for the maximum field size. The MPCC MkIII is designed to work perfectly with the Baader Protective EOS T-rings (sold separately). For visual, the MPCC MkIII can be configured with any of their eyepiece holders or directly coupled to 2" eyepieces using optional Astro T-2 System components.
New Features of the MkIII Version:
- New Optical Design - calculated for an unvignetted field down to f/3.5.
- Improved sharpness across the field.
- Phantom Group Multicoated for maximum transmission and freedom from reflections from UV to NIR.
- Attaches directly to the Baader Protective EOS T-ring (sold separately) through use of an optional adapter.
- 44mm Clear Aperture when using the M48 (2") filter thread or the Protective T-ring.
VISUAL
Dob users with f/3.7 - f/5 scopes have been discovering the unique benefits of the MPCC versus other coma correctors. The MPCC can be inexpensively configured for visual use with 1.25" and 2" eyepieces. Please see the MPCC Visual Configuration page for new information on some exciting visual configurations.
No Magnification Increase: The MPCC delivers full fields for the widest 2" eyepieces. Why spend the big $$ on a large widefield eyepiece, only to have its field squeezed by the coma corrector? Now, a 31mm ultra-widefield eyepiece can perform like a 31mm, and not a 26mm.. Also, unlike some correctors, the MPCC has minimal effect on the eyepoint and blackout behavior of long focal length eyepieces.
No additional Back-Focus (in-travel) required: In fact, in direct-coupled configurations, the MPCC actually increases back-focus by about 10mm. If your eyepiece will focus without a coma corrector, it Will reach focus with the MPCC. This is not the case with some other coma correctors.
Reduced Vignetting: The MPCC works well with even the largest true field 2" eyepieces. Due the closer position of the field lens to the focal plane, the MPCC is able to provide a larger fully illuminated true field than some coma correctors (both visually and photographically)
Low Cost: The MPCC is about half the cost of other correctors. Some users have even purchased more than one and leave them permanently attached to their favorite 2" eyepieces.
IMAGING
The MPCC is the ideal match for today's Digital SLRs. Owners of these new cameras find them to be ideally mated with today's fast f/3.5-f/5 Newtonians required to keep exposures short. The MPCC enables these users to fully correct their scopes and produce superb pinpoint color deep sky images without the complexity of more expensive CCD astrocameras. Owners of Vixen Newtonians will appreciate the inclusion of filter threads, and the high sharpness of the images. Unlike other coma-correctors, the MPCC does NOT extend the focal ratio (so, your images will be shot at the full speed of your telescope).
The MPCC inserts into 2" focusers and has external T-threads on the output side (and is also threaded for standard 2"/48mm filters). Simply attach any 35mm film or digital SLR to the MPCC, using commonly available T-adapters. Users of CCD cameras can attach in the same way through the use of the Baader Astro T-2 System components (adapters, extension tubes). The MPCC is designed for a nominal 55mm distance from the mounting flange to the film plane (55mm is the standard dimension for all SLRs, measured from the front of their T-adapter to their film plane). It also extends the focus point by approximately 10mm, so no additional back-focus is needed to use the MPCC (of course, this assumes your camera will already reach focus in your telescope, without the MPCC).
The MPCC also includes a removable stop flange. Removal of this flange exposes an M48 external thread, which enables the MPCC to be directly coupled to 2" eyepieces and inserted fully inside 2" focusers. For more info, please see the MPCC Visual Configuration page.
The MPCC has been tested and found to work well on Meade SN Schmidt-Newtonians.
The weight of the MPCC by itself is 80gm (2.8oz).
