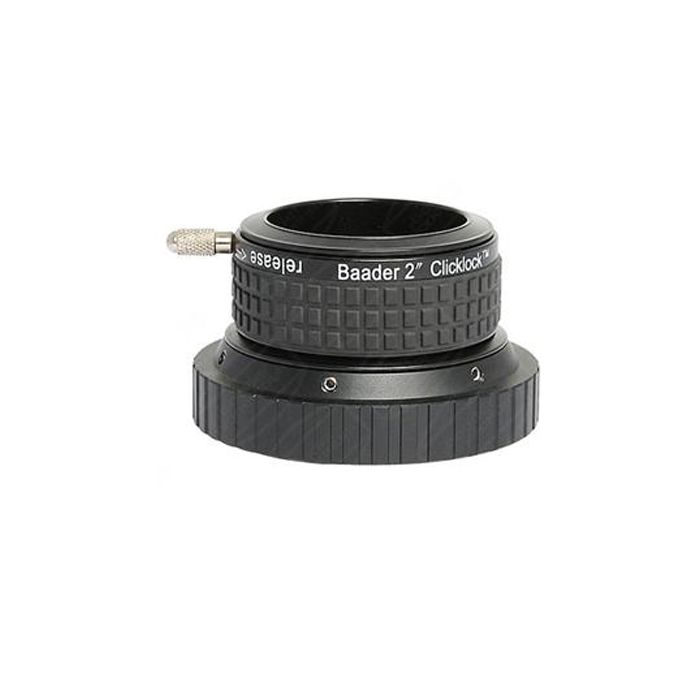

Baader 2" SCT Click-Lock Eyepiece Adapter / Visual Back (with 3.25" SCT Thread)
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Baader 2" ClickLock Clamp for 10" to 14" Schmidt-Cassegrain Telescopes
Owners of all larger Schmidt-Cassegrain telescopes will find this Baader 2" ClickLock clamp to be the perfect way to use 2" eyepieces and accessories with their scope. The clamp directly mounts to the 3.28" SCT male threads on the back of the optical tubes of Celestron SCTs from 11" - 14" aperture. It should also fit on the large 3.25" SCT thread on most Meade SCT/ACF telescopes that are 10" or larger (although you might require a bit of plumbing tape to ensure a good fit on the marginally smaller Meade thread diameter). The approximate optical path length of this clamp is 40mm.
(Not for use with smaller Schmidt-Cassegrain telescopes up to 9.25" aperture. For those scopes, please see Baader item # CLSC-2 / 2956220).
Overview of Baader Clicklock Eyepiece Clamps
Available in 1.25” and 2” configurations, precision-made and rock-solid Baader ClickLock clamps secure your eyepieces, cameras, and observing accessories without the need for clamping screws. With a small 20° turn of the locking lever, your 1.25” or 2” component is securely held in place, locked against rotation, and will not be scratched or marred in any way. ClickLock clamps are easy to use, even when wearing gloves!
Baader ClickLock clamps are made of seven precision-machined components which provide a highly effective retention mechanism that securely holds any 1¼" or 2" eyepiece or accessory. The clamp is complex to assemble, so the price may appear high for "nothing more” than a clamping device. But if you think about the comfort, precision, stability, and ease of use, these clamps are well worth the investment.
ClickLock clamps are based on mechanical engineering principles similar to those used to design tool holders in modern CNC milling machines. The clever use of leverage multiplies torque in the holder, so you don’t need to pull hard on the locking lever to fully secure your eyepiece or accessory: it’s held on three sides similar to a quick-action chuck and remains secure and aligned.
The Baader 2" ClickLock Clamp System
Baader has tested the effectiveness and stability of the 1.25” ClickLock mechanism for many years. The 2" Baader ClickLock system is designed to be even more mechanically solid to hold larger eyepieces and accessories. The features and functions of this clamping system include:
- Secure and firm hold on each 2” component with a 20° turn with light pressure of the rotary lever
- Ratchet function to indicate the position of the clamp acoustically and haptically so you can tell in the dark, without looking, if the clamp is open or closed.
- Massive tension ring to keep even the most expensive accessories absolutely safe, without causing scratches or marring
- The position of the rotary lever is adjustable for left-hand / right-hand use either by six slotted screws or by six Allen screws (depending on the model)
- The heaviest load tested to date is a complete C14 optical tube with an SCL-clamp and a 2" ClickLock star diagonal with a Scopos 30mm extreme eyepiece. The entire C14 optical tube was lifted at the eyepiece (this was a test set-up and it is not recommended you try this yourself).
- The extensive range of ClickLock clamps makes it possible to retrofit many telescope models with the Baader 2" ClickLock clamp
With the 2" ClickLock clamp, you can also convert, for example, your 2" Maxbright mirror diagonal (or the 2" universal prism) to the ClickLock system simply by unscrewing the old 2" clamp and screwing on the new 2" ClickLock clamp.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Protective Plastic Storage Container | No |
| Hide Found a better Shipped Price on Frontend? | No |
Baader 2" ClickLock Clamp for 10" to 14" Schmidt-Cassegrain Telescopes
Owners of all larger Schmidt-Cassegrain telescopes will find this Baader 2" ClickLock clamp to be the perfect way to use 2" eyepieces and accessories with their scope. The clamp directly mounts to the 3.28" SCT male threads on the back of the optical tubes of Celestron SCTs from 11" - 14" aperture. It should also fit on the large 3.25" SCT thread on most Meade SCT/ACF telescopes that are 10" or larger (although you might require a bit of plumbing tape to ensure a good fit on the marginally smaller Meade thread diameter). The approximate optical path length of this clamp is 40mm.
(Not for use with smaller Schmidt-Cassegrain telescopes up to 9.25" aperture. For those scopes, please see Baader item # CLSC-2 / 2956220).
Overview of Baader Clicklock Eyepiece Clamps
Available in 1.25” and 2” configurations, precision-made and rock-solid Baader ClickLock clamps secure your eyepieces, cameras, and observing accessories without the need for clamping screws. With a small 20° turn of the locking lever, your 1.25” or 2” component is securely held in place, locked against rotation, and will not be scratched or marred in any way. ClickLock clamps are easy to use, even when wearing gloves!
Baader ClickLock clamps are made of seven precision-machined components which provide a highly effective retention mechanism that securely holds any 1¼" or 2" eyepiece or accessory. The clamp is complex to assemble, so the price may appear high for "nothing more” than a clamping device. But if you think about the comfort, precision, stability, and ease of use, these clamps are well worth the investment.
ClickLock clamps are based on mechanical engineering principles similar to those used to design tool holders in modern CNC milling machines. The clever use of leverage multiplies torque in the holder, so you don’t need to pull hard on the locking lever to fully secure your eyepiece or accessory: it’s held on three sides similar to a quick-action chuck and remains secure and aligned.
The Baader 2" ClickLock Clamp System
Baader has tested the effectiveness and stability of the 1.25” ClickLock mechanism for many years. The 2" Baader ClickLock system is designed to be even more mechanically solid to hold larger eyepieces and accessories. The features and functions of this clamping system include:
- Secure and firm hold on each 2” component with a 20° turn with light pressure of the rotary lever
- Ratchet function to indicate the position of the clamp acoustically and haptically so you can tell in the dark, without looking, if the clamp is open or closed.
- Massive tension ring to keep even the most expensive accessories absolutely safe, without causing scratches or marring
- The position of the rotary lever is adjustable for left-hand / right-hand use either by six slotted screws or by six Allen screws (depending on the model)
- The heaviest load tested to date is a complete C14 optical tube with an SCL-clamp and a 2" ClickLock star diagonal with a Scopos 30mm extreme eyepiece. The entire C14 optical tube was lifted at the eyepiece (this was a test set-up and it is not recommended you try this yourself).
- The extensive range of ClickLock clamps makes it possible to retrofit many telescope models with the Baader 2" ClickLock clamp
With the 2" ClickLock clamp, you can also convert, for example, your 2" Maxbright mirror diagonal (or the 2" universal prism) to the ClickLock system simply by unscrewing the old 2" clamp and screwing on the new 2" ClickLock clamp.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Protective Plastic Storage Container | No |
| Hide Found a better Shipped Price on Frontend? | No |
Baader 2" SCT Click-Lock Eyepiece Adapter / Visual Back (with 3.25" SCT Thread) # CLSCL-2 2956233
