Baader 20nm H-alpha Bandpass Filter (with LPFC) - 2" Mounted
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 2" Baader H-alpha Bandpass filter with 2" (M48) filter thread
- H-alpha filter with 20 nm FWHM (CWL 656.3 nm), thus excellently suited for visual use at night - and photographically with CCD and CMOS cameras at telescopes with all f-ratios. Warning: this filter alone is not suitable for direct viewing of the sun!
- With new, highly effective UV/IR block coating from 300 nm to 1400 nm
- Similar to the Super G filter in O III, the 20 nm H-alpha filter is an outstanding high-contrast deep-sky H-alpha/red filter for RGB applications, optimised for all colour CCD and CMOS chips. It enables high-contrast images of H-II regions (e.g. North America nebulae) even from light-polluted environments.
- Front-Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)

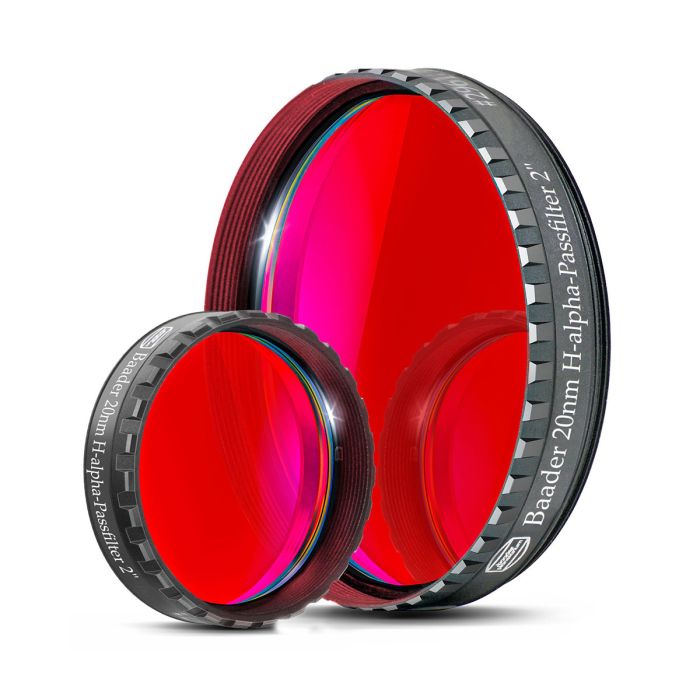

Please note: The stock photo above shows filters of different sizes. Only one filter is included in this listing as detailed below.
This 20nm filter replaces the former 35nm H-alpha filter, which was developed for interline CCD cameras. Due to advances in sensor technology, now much narrower filters can be used with colour sensors.
Compared to the CMOS-optimized Baader (Ultra) Narrowband Filters, the 20 nm H-alpha filter passes considerably more light. This makes the stars in the image brighter, allowing easier focusing, and the filter can be used at all focal ratios: There is no need for preshifting as with narrow band filters. This filter is especially interesting for users of colour cameras (which are less sensitive to red than monochrome cameras) who do not need extreme narrowband filters and want to enrich their colour images with H-alpha. At the same time this filter is a valid alternative to a standard R-filter of the RGB-scheme. It blocks much more of deteriorating light pollution and still passes all H-alpha for all focal ratios.
A notable difference to all H-alpa pass filters on the market is the fact that this filter does include highly efficient UV/IR blocking. being completely blocked out to 1400 nm, to eliminate blurring ("heat-noise") caused by defocused light on refractor optics.
The Baader H-alpha Bandpass (20 nm) filter has got all the advantages of the new generation of CMOS-optimized Baader filters:
- Increased contrast, matched for typical CMOS quantum efficiency and s/n ratio
- Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
- Identical filter thickness to existing standards, with utmost care for parfocality
- Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter, making additional front-masks obselete.
- Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed)
- Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
Specifications:
- MANUFACTURER: Baader Planetarium
- SKU (#): 2961853
- EAN CODE: 4047825053831
- NET WEIGHT (KG): 0.012
- TRANSMISSION RANGE: H-alpha
- FILTER THICKNESS (WITHOUT CELL): 2 mm
- HBW (HALFBANDWIDTH): 20nm
- CWL (CENTRAL WAVELENGTH): 656.3 nm
- AR-COATING: Reflex-Blocker™ hard coated, dielectrically coated, planeoptically polished
- FILTER SIZE: 2 inch
- FILTER USAGE: CMOS, CCD, H-alpha, IR-Cut
- FILTER MOUNTED: Mounted (LPFC 6mm)
- TYPE OF FILTER: Narrowband
- SINGLE OR SET?: Single Filter
- FILTER SHAPE: round
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 2" Baader H-alpha Bandpass filter with 2" (M48) filter thread
- H-alpha filter with 20 nm FWHM (CWL 656.3 nm), thus excellently suited for visual use at night - and photographically with CCD and CMOS cameras at telescopes with all f-ratios. Warning: this filter alone is not suitable for direct viewing of the sun!
- With new, highly effective UV/IR block coating from 300 nm to 1400 nm
- Similar to the Super G filter in O III, the 20 nm H-alpha filter is an outstanding high-contrast deep-sky H-alpha/red filter for RGB applications, optimised for all colour CCD and CMOS chips. It enables high-contrast images of H-II regions (e.g. North America nebulae) even from light-polluted environments.
- Front-Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
Please note: The stock photo above shows filters of different sizes. Only one filter is included in this listing as detailed below.
This 20nm filter replaces the former 35nm H-alpha filter, which was developed for interline CCD cameras. Due to advances in sensor technology, now much narrower filters can be used with colour sensors.
Compared to the CMOS-optimized Baader (Ultra) Narrowband Filters, the 20 nm H-alpha filter passes considerably more light. This makes the stars in the image brighter, allowing easier focusing, and the filter can be used at all focal ratios: There is no need for preshifting as with narrow band filters. This filter is especially interesting for users of colour cameras (which are less sensitive to red than monochrome cameras) who do not need extreme narrowband filters and want to enrich their colour images with H-alpha. At the same time this filter is a valid alternative to a standard R-filter of the RGB-scheme. It blocks much more of deteriorating light pollution and still passes all H-alpha for all focal ratios.
A notable difference to all H-alpa pass filters on the market is the fact that this filter does include highly efficient UV/IR blocking. being completely blocked out to 1400 nm, to eliminate blurring ("heat-noise") caused by defocused light on refractor optics.
The Baader H-alpha Bandpass (20 nm) filter has got all the advantages of the new generation of CMOS-optimized Baader filters:
- Increased contrast, matched for typical CMOS quantum efficiency and s/n ratio
- Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
- Identical filter thickness to existing standards, with utmost care for parfocality
- Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter, making additional front-masks obselete.
- Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed)
- Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
Specifications:
- MANUFACTURER: Baader Planetarium
- SKU (#): 2961853
- EAN CODE: 4047825053831
- NET WEIGHT (KG): 0.012
- TRANSMISSION RANGE: H-alpha
- FILTER THICKNESS (WITHOUT CELL): 2 mm
- HBW (HALFBANDWIDTH): 20nm
- CWL (CENTRAL WAVELENGTH): 656.3 nm
- AR-COATING: Reflex-Blocker™ hard coated, dielectrically coated, planeoptically polished
- FILTER SIZE: 2 inch
- FILTER USAGE: CMOS, CCD, H-alpha, IR-Cut
- FILTER MOUNTED: Mounted (LPFC 6mm)
- TYPE OF FILTER: Narrowband
- SINGLE OR SET?: Single Filter
- FILTER SHAPE: round
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Baader 20nm H-alpha Bandpass Filter (with LPFC) - 2" Mounted # FHALW-2 2961853
