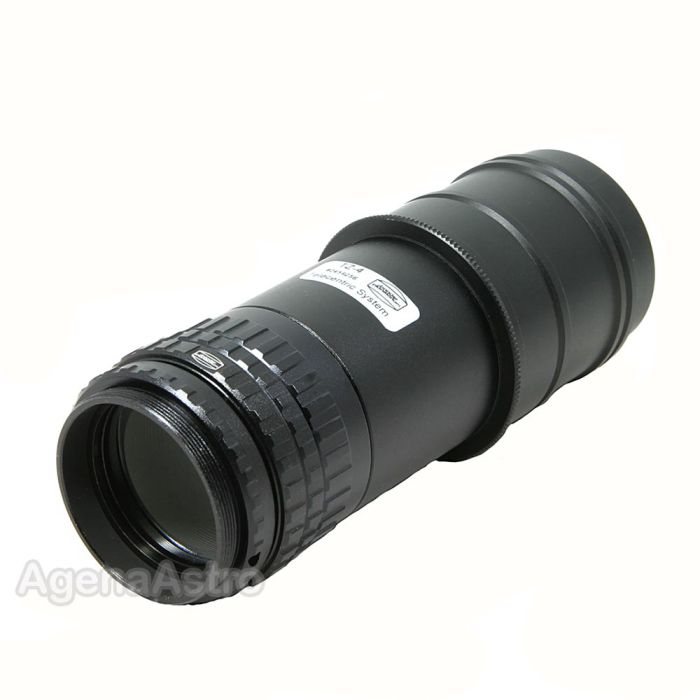

Baader 4x Telecentric Lens System
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Baader Planetarium has designed a new optimized telecentric system for use with Solar Spectrum H-Alpha systems. A telecentric system is used to convert shorter focal ratio telescopes to the desired f/25 or greater beam needed by the rear mounted Solar Spectrum filter. More than a barlow lens or barlow lens based system, the Baader telecentric ensures that the output beam maintains a consistent normal incident angle across the full filter width. The result is a consistent bandwidth and high image contrast across the field of view.
This lens system has been optimized to maintain an exceedingly high optical quality for dedicated solar use (>99% strehl at 656.3nm). Simpler barlow or barlow-based systems are not able to produce this level of accuracy or telecentricity. Hard Dielectric IR coatings further help to reject IR energy and protect the rear etalon from excessive heat energy.
This version effectively extends the focal length by a factor of 4x (2x version also available separately). Baader part # TZ-4 or 2459256. Item weight = 10.5oz.
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Baader Planetarium has designed a new optimized telecentric system for use with Solar Spectrum H-Alpha systems. A telecentric system is used to convert shorter focal ratio telescopes to the desired f/25 or greater beam needed by the rear mounted Solar Spectrum filter. More than a barlow lens or barlow lens based system, the Baader telecentric ensures that the output beam maintains a consistent normal incident angle across the full filter width. The result is a consistent bandwidth and high image contrast across the field of view.
This lens system has been optimized to maintain an exceedingly high optical quality for dedicated solar use (>99% strehl at 656.3nm). Simpler barlow or barlow-based systems are not able to produce this level of accuracy or telecentricity. Hard Dielectric IR coatings further help to reject IR energy and protect the rear etalon from excessive heat energy.
This version effectively extends the focal length by a factor of 4x (2x version also available separately). Baader part # TZ-4 or 2459256. Item weight = 10.5oz.
