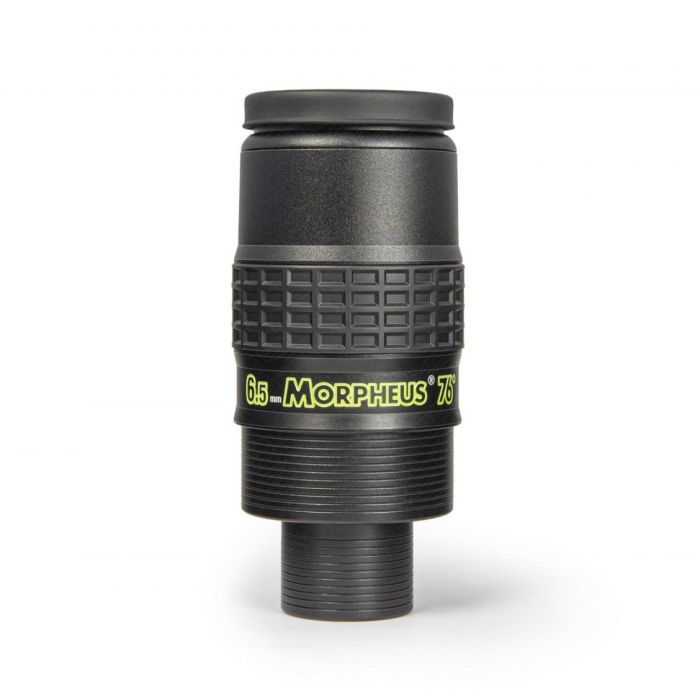

Baader 1.25" and 2" Morpheus 76° Wide-Field Eyepiece - 6.5mm
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 6.5mm focal length Baader Morpheus eyepiece with dual 1.25" / 2" barrel design
- 76-deg apparent field of view, 17.5mm eye relief, 11.5oz weight
- Parfocal with other Morpheus eyepieces
- Features M43 photo-video adapter thread for imaging applications (Requires optional M43/T2 adapter for attachment to T threads/rings)
- Includes end caps, eyeguards, eyepiece holster, and storage box
Morpheus is the God of Dreams - and after more than four years of development Baader Planetarium presents the eyepiece of their dreams: The MORPHEUS 76° WIDE-FIELD OCULARS.
Even if a certain movie classic hints otherwise, Baader's Morpheus' are absolutely real. Featuring a true 76° field of view, they immerse you in the Universe without having to roll your eyes. The big eye relief is perfect for observing with glasses and the comfortable viewing behavior leads to a "Spacewalk-feeling" that normally is provided only by eyepieces with a much larger and inaccessible apparent field of view. Meanwhile the image in no way appears distorted like viewing through a fishbowl. Center contrast and brilliance match those of the finest planetary eyepieces; even with the fastest telescope optics you will enjoy tack sharp stars close to the outer edge of the field.
Baader has put as much effort into the workmanship as into the optical design. Phantom Coating Group, rare-earth glasses, sealed watertight housings and blackened lens edges are a given. Practical design is the prime goal: i.e. minimum metal to keep weight at bay, optimized for bino-viewing, photo- video thread, and the all-new 1.25" and 2" 'safety-kerfs' to guard against slipping (no undercut). In the night you will love the quick draw eyepiece holster and the photo-luminescent engraving.
Morpheus Highlights
Optical Features
- Full Field Sharpness: The sharp flat 76° field is unsurpassed by any other modern wide field eyepiece. On-axis sharpness and contrast rivals the best planetary eyepieces, while delivering nearly equivalent performance over the full field. Stars remain diamond pinpoints as you move away from center, and the field remains flat and in focus, even in short focus telescopes.
- Long Eye Relief: Morpheus pushes the envelope of comfortable wide field viewing further than ever before, delivering close to 20mm of eye relief along with best-in-class optical performance. Eyeglass wearers can comfortably take in the full field, and users of binoviewers will find that Morpheus make the ultimate eyepieces for viewing with two eyes.
- Low Distortion: The Morpheus optical design delivers exceedingly low distortion (angular magnification distortion). Planets and lunar features retain their shapes as they transit the field and the true field sizes are close to theoretical. Many companies exaggerate at this point and deliberately use off axis distortion magnification as a means to advertize blown "apparent" field sizes . You will be able to compare this given field size of 76° and find it to be the true value, calculated from the apparent field size and focal length.
- Immersive Views: As avid observers themselves, Baader has studied the behaviors of most commonly available wide field eyepieces and listened to other observers comments on what eyepieces give the most palpable and engaging wide field viewing experience. What they found is that the subjective 'spacewalk' feeling is not just a function of field of view. Interestingly, some wide-field eyepieces with fields of 82 degrees failed to deliver the same viewing experience as others with similar fields, or even some with smaller fields. They found two additional primary factors played into the equation - Eye Relief (and the related large eye lens size) and Ease of Viewing (a combination of long eye relief and control of pupil aberrations). Baader also found that fields much below 74 degrees tended to have a reduced effect. So, with this information in hand, they set out to design a new eyepiece with a field of view greater than 74° that met all of the other optical parameters necessary to deliver a truly "immersive" viewing experience where the eyepiece essentially disappears. The result is Morpheus.
- Phantom Coating Group: Pioneered in the Hyperion lineup, the Phantom Group Multi-coatings have been further optimized for use in the Morpheus and index-matched to each of the different glasses.
- Optimized Internal Baffling: As with all Baader Planetarium eyepieces, the internal mechanicals have been fully ray-traced and baffled to eliminate the effects of stray light.
Mechanical Features
- Optimized for Binoviewing: Every last bit of space has been squeezed out of the main body to minimize its size, giving maximum nose clearance for binoviewing.
- Weight Reduction: Every effort has been made to eliminate unnecessary weight, especially in view of effective binoviewing. The weight of all Morpheus eyepieces essentially are the lenses inside plus the best protection and water resistance Baader can supply.
- Foldable Eyecups: The Morpheus includes two soft rubber dual-position foldable eyeguards. These innovative new eyeguards have been developed to provide the optimal comfort and eye spacing for most users and eye glass wearers. The included special winged version provides the ultimate comfort and exclusion of stray light necessary for binoviewing with eyeglasses.
- Safety Features: The 1.25" and 2" barrels of each Morpheus incorporate Baader's new Slip-Protect Safety Kerfs - the ideal safety compromise between smooth barrels and wide undercuts. The numerous shallow kerfs give additional grip and security from inadvertent drops from smooth sided barrels, without the annoying problems sometimes caused by traditional wide undercuts. Wide waffle-patterned rubber grip ring gives an extra measure of handling security.
- Photo-Video Adaptation: Like their Hyperion siblings, all Morpheus eyepieces make superb imaging projection optics. Each Morpheus includes a hidden M43 photo-video eye lens thread that permits use of Baader's extensive range of Hyperion Digital T-Rings. These rings permit direct-thread attachment of practically any imaging device for the ultimate in rigidity and close-coupling for minimal vignetting.
Scope of supply (included): 76° Morpheus eyepiece with standard foldable eyecup, winged/foldable eyecup for binoviewing, storage-box, three dustcaps, cordura eyepiece holster.
Manufacturer part number: 2954206
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Eyepiece Series | Morpheus |
| Focal Length | 6.5mm |
| Barrel Size | 1.25" (31.7mm) and 2" (50.8mm) |
| Apparent Field of View (Mfg Specified) | 76° |
| Eye Relief (Designed) | 18.5mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Broadband Multi-Coated (Phantom Group) |
| Lens Elements | 8 |
| Lens Groups | 5 |
| Blackened Lens Edges | Yes |
| Barrel Type | With safety kerfs |
| Protective Plastic Storage Container | Yes - Free Agena Eyepiece Container |
| Protective Plastic Storage Container Size | Agena 65x120mm |
| Height (With Eyeguard Extended) | 121mm |
| Maximum Width | 55mm |
| End Caps | 3 |
| Field Stop Diameter | 8.7mm |
| Parfocal | Yes |
| Rubber Eye Guard | Yes |
| Weight | 11.5 oz (336 g) w/o end caps, not 12.3 oz specified by Baader |
| Hide Found a better Shipped Price on Frontend? | No |
