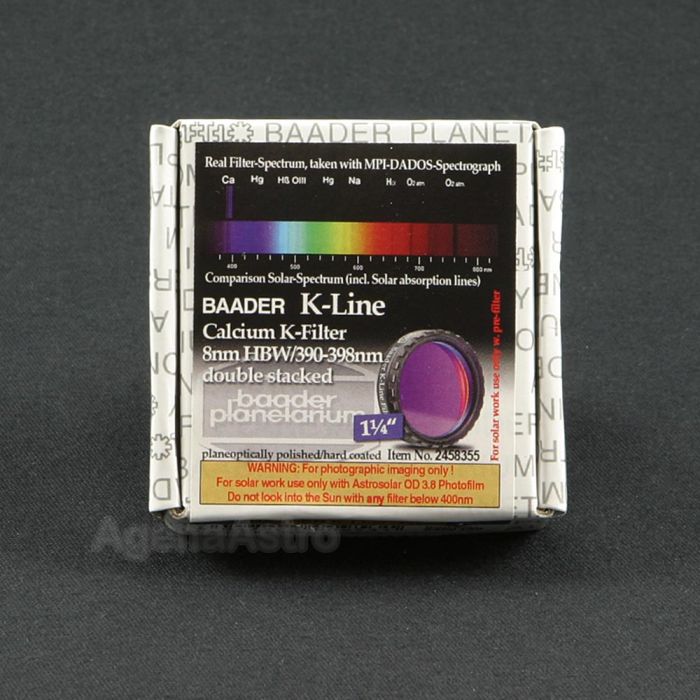

Baader Calcium K-Line Filter - 1.25"
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Double stacked design allows high contrast imaging of solar granulation, flares, sunspots, and other solar features
- Provides 8 nm wide bandpass at the Calcium II K-Line centered around 395nm
- Works with your existing telescope – no need for expensive dedicated CaK modules or telescopes
- Mounted in a standard 1.25” filter cell
- Includes a 200mm X 290mm (8” X 11”) sheet of Baader AstroSolar Film (ND=3.8)
Please note: The Baader Ca K-Line filter is intended for imaging ONLY. It is not suitable for visual observation since the high UV levels can be an eye safety risk from prolonged observations. The CaK filter must be used in conjunction with a primary solar filter such as a Herschel Wedge Prism, or Baader AstroSolar Film (provided). The CaK filter must be placed after the primary filter (i.e. on the eyepiece), and cannot be used alone, or permanent eye and equipment damage will result. Also, due to the eye's low sensitivity and very poor resolving ability at 395nm, solar features in CaK are generally invisible for most observers.
The Baader Planetarium Double Stacked Calcium K-Line Filter makes imaging of the sun in the Calcium (Ca II) K-Line accessible to anyone with a telescope and digital camera or webcam. This double-stacked filter uses sophisticated coatings to produce a sharp 8 nanometer (nm) wide bandpass, centered at 395nm. This bandpass provides significant contrast for high-resolution imaging of granulation, flares, sunspots, and other features that are prominent in CaK light. The Baader K-Line filter works with your existing telescope eliminating the need to purchase a dedicated CaK telescope or expensive CaK modules - at a small fraction of the cost. The Baader CaK may be used with virtually any telescope, of any aperture - Newtonian, SCT, refractor, etc.
The Baader Double Stacked Ca K-Line Filter is enclosed in a standard 1.25" thread-on eyepiece cell. It can be attached to an eyepiece for projection imaging, or directly to a camera's nosepiece for prime-focus. The filter must be used with a solar pre-filter to reduce the heat energy that reaches the filter. A 200mm x 290mm (8x11inch) sheet of Baader's renowned AstroSolar Photo Film (ND=3.8) is provided with each Ca K-Line filter. This material may be easily mounted to any telescope using provided instructions.
The Baader Herschel Safety Wedge Solar Prism may also be used as the energy rejection filter in place of the AstroSolar Photo Film. This will provide the absolute highest quality solar images possible in CaK with the absolute least risk to eye or equipment damage.
As with all Baader Planetarium filters, the Solar Continuum possesses all of the trademark Baader filter qualities. Optical, physical, and mechanical qualities are superb.
Agena Note: Please note that this filter does not feature a female thread. Hence, you cannot stack additional 1.25" filters on to this item.
